JQE 150-1.5MVPY-26956 ASSEMBLY A1 (Figure 7-2) CODE: 2351431/2671532
REFERENCE
DESIGNATOR
QTY. DESCRIPTION
MFRS. NAME & PART NO.
(SEE BOTTOM NOTE)
KEPCO
PART NO.
REC. SPARE
PART QTY.
NOTE: REPLACEMENT PARTS MAY BE ORDERED FROM KEPCO, INC. ORDERS SHOULD INCLUDE KEPCO PART NUMBER AND DESCRIPTION.
PLEASE NOTE: THE MANUFACTURER'S NAME AND PART NUMBER LISTED FOR EACH ITEM ON REPLACEMENT PARTS LISTS REPRESENTS
AT LEAST ONE SOURCE FOR THAT ITEM AND IS LISTED SOLELY FOR THE CONVENIENCE OF KEPCO EQUIPMENT OWNERS IN OBTAINING
REPLACEMENT PARTS LOCALLY. WE RESERVE THE RIGHT TO USE EQUIVALENT ITEMS FROM ALTERNATE SOURCES. KEPCO, INC.
KEPCO REPLACEMENT PARTS LIST

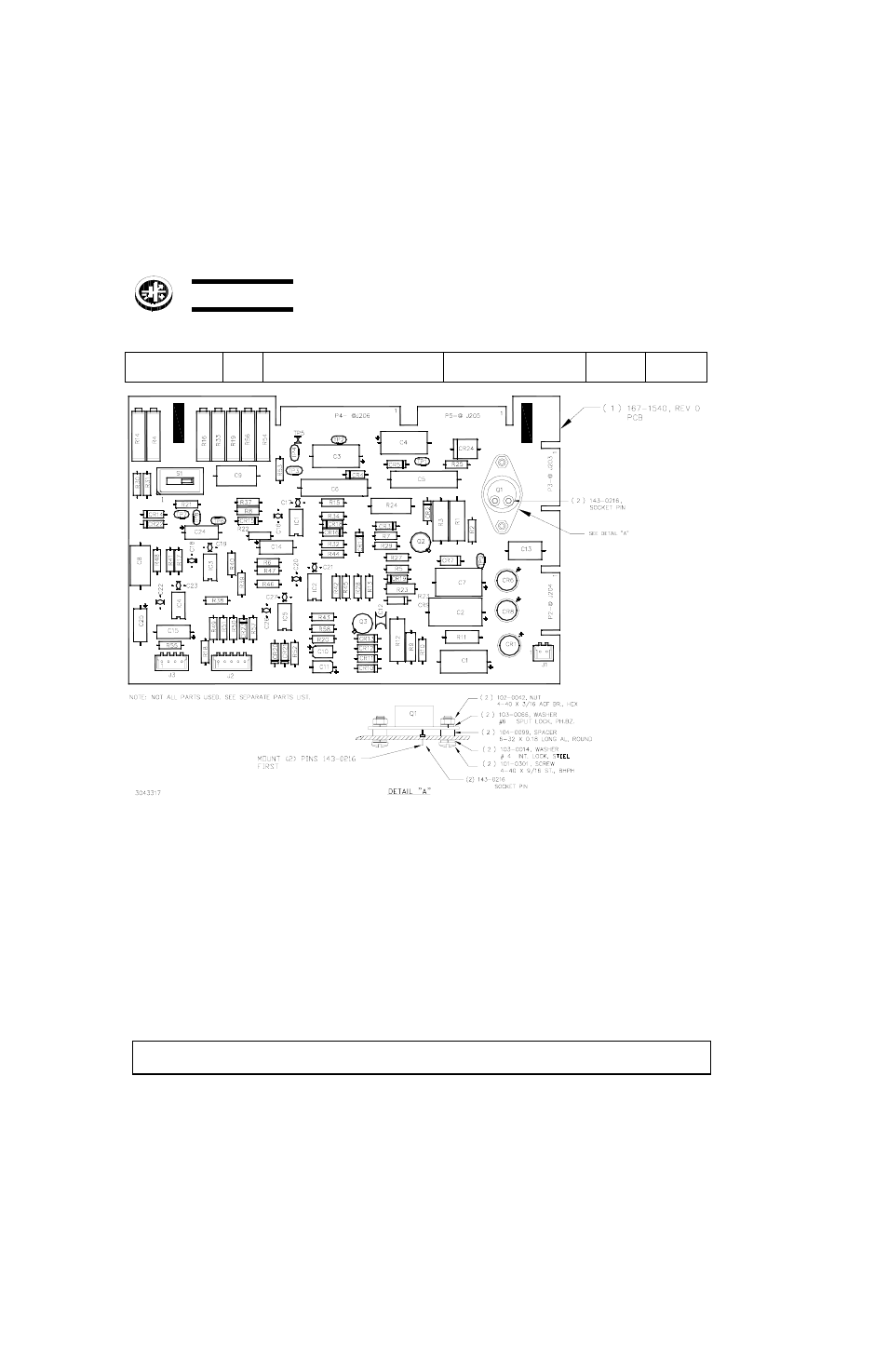

FIGURE 7-2. JQE 150-1.5MVPY-26956 A1 ASSEMBLY, COMPONENT LOCATIONS
A1 ASSEMBLY UNIQUE PARTS
(SEE FOLLOWING LISTING FOR A1 ASSEMBLY COMMON PARTS)
C14 1 CAP., MYLAR, METALLIZED,
2200PF, 10%, 200V CORNELL DUBILIER
WMC2D22K 117-0659 1
C25 1 CAP., MYLAR, METALLIZED,
0.01UF, 20%, 200V VISHAY SPRAGUE
192P103X0200P303 117-0353 1
C6 1 CAP., MYLAR, METALLIZED,
0.5UF, 10%, 200V STK ELECTRONICS
MM3705003K200 117-0123 1
C7 1 CAP., ELECTROLYTIC, AX. LEADS,
220UF, 20%, 16V KEPCO
117-0677 117-0677 1
C8 1 CAP., MYLAR, METALLIZED,
0.047UF, 10%, 200V SPRAGUE
192P5039 117-0362 1
