Installing the inverter
Operating Instructions Powador 12.0 TL3-20.0 TL3 Page 21
Authorised electrician
7.2.2.4 Parallel input connection
The DC inputs can also be connected in parallel. Only strings with identical MPP voltage can be connected in
parallel (Un
1
=Un
2
=Un
m
).
The maximum permissible rated current (DC) doubles with parallel connection of both MPP trackers.
In case of a parallel input connection, MPP trackers A and B must be bridged. If input 1 is connected to input 2 and
input 3 is connected to input 4, then there is no parallel operation! The maximum rated current (DC) should also
be observed. Parallel operation is automatically recognized by the inverter.
Electrical data for parallel connection
Connecting the DC inputs Number of modules per string: n
1
=n
2
=n
m
P
max
< max. recommended PV generator power
I
max
< 2 * max. rated current (DC)
1
A B
2 3 4
U MPP
...
n
1
n
2
n
m
= =

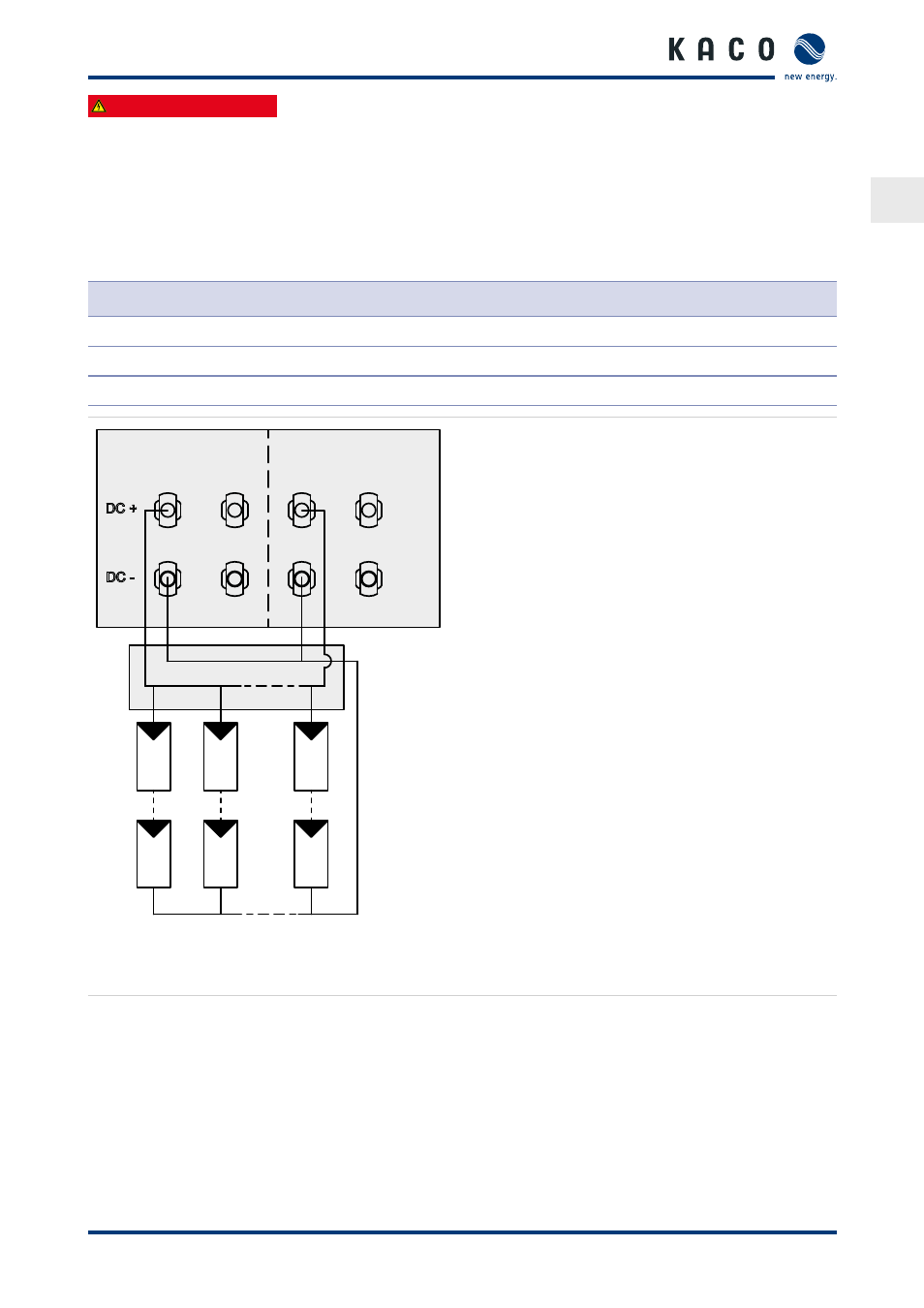

Figure 10: Parallel input connection in
the generator junction box
