Connecting the Antenna Cables
RoamAbout Antenna Site Preparation and Installation Guide 3-35
Using The Male Pigtail

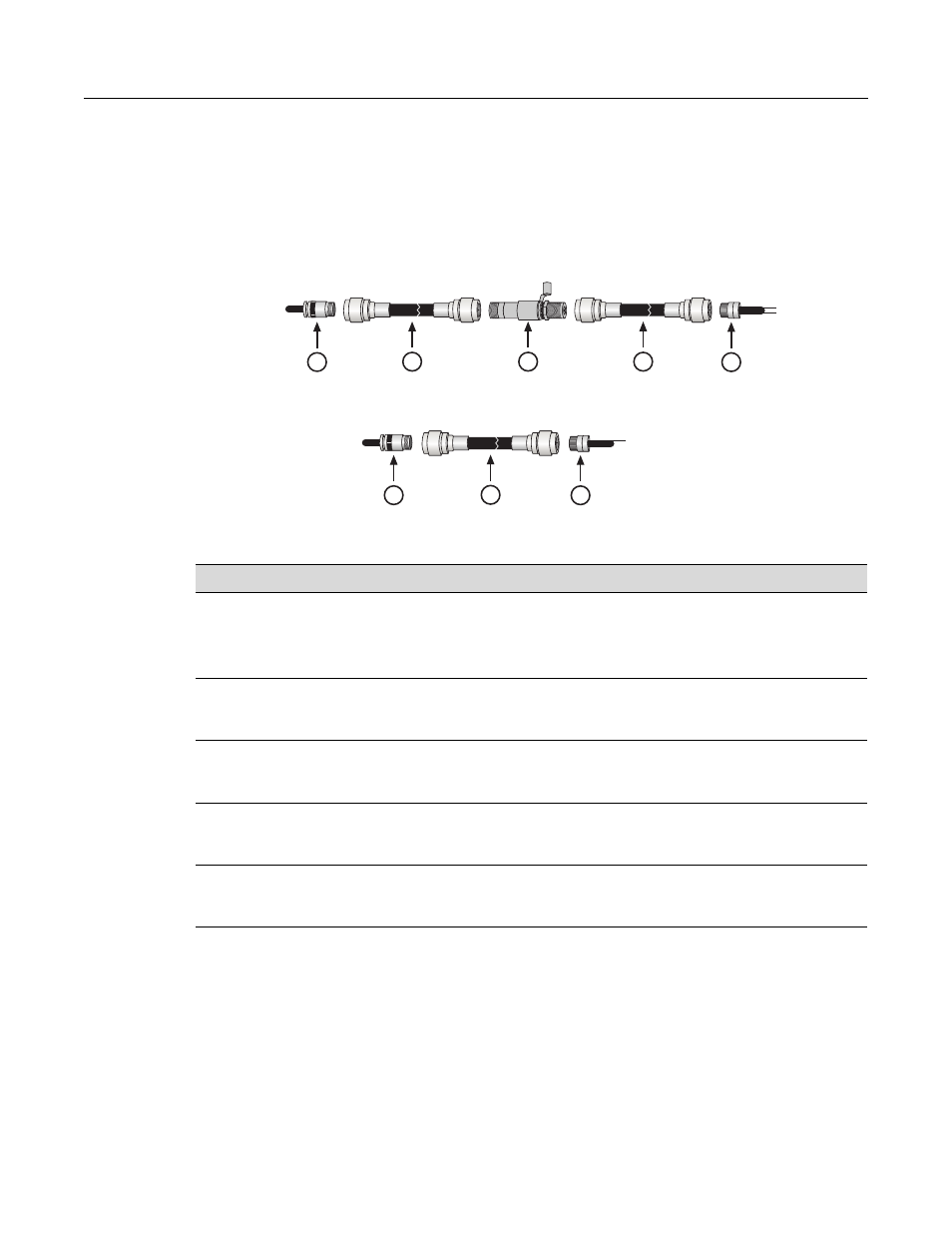

Figure 3‐21 and Figure 3‐22 show the cable configurations for using a male pigtail connector to
connect an AP to an outdoor antenna.
Figure 3‐21 shows the configuration for using a Lightning Protector. Figure 3‐22 shows the
configuration when not using a Lightning Protector. Table 3‐17 describes the configurations.
Figure 3-21 Male Pigtail Cable With Lightning Protector
Figure 3-22 Male Pigtail Cable Without Lightning Protector
Table 3-17 Male Pigtail Cable Components
# Component Connectors
1 RoamAbout pigtail connection (50 cm) - Male • Right Angle MC Card to AP
• Reverse-N Male to antenna
Male connector housing and male
center contact.
2 Low-loss antenna cable
(lengths of 20, 25, 50 or 75 feet) Reverse-N Female on both ends
Female connector housing and female
center contact.
3 Lightning protector Reverse-N Male on both ends
Male connector housing and male center
contact.
4 Low-loss antenna cable
(lengths of 20, 25, 50 or 75 feet) Reverse-N Female on both ends
Female connector housing and female
center contact.
5 Outdoor antenna cable Reverse-N Male
Male connector housing and male center
contact.
1 2 3 4 5
1 4 5
