Mounting the Antenna
3-8 Antenna Installation
Mounting RoamAbout 2.4 GHz 8 dBi Omni-Directional Base Station
Antenna
You can mount the RoamAbout 2.4 GHz omni‐directional base station antenna (part number
RBTES‐BG‐M08M) on a mast.
The RoamAbout 2.4 GHz omni‐directional base station antenna kit includes the following
hardware:
• One mounting bracket
• One U‐bolt
• Two hex nuts
• Two spring lock washers
• Two flat washers
Figure 3‐2 illustrates how to mount the RoamAbout omni‐directional base station antenna on a
mast in a horizontal polarization mode. Table 3‐3 lists the mounting components.

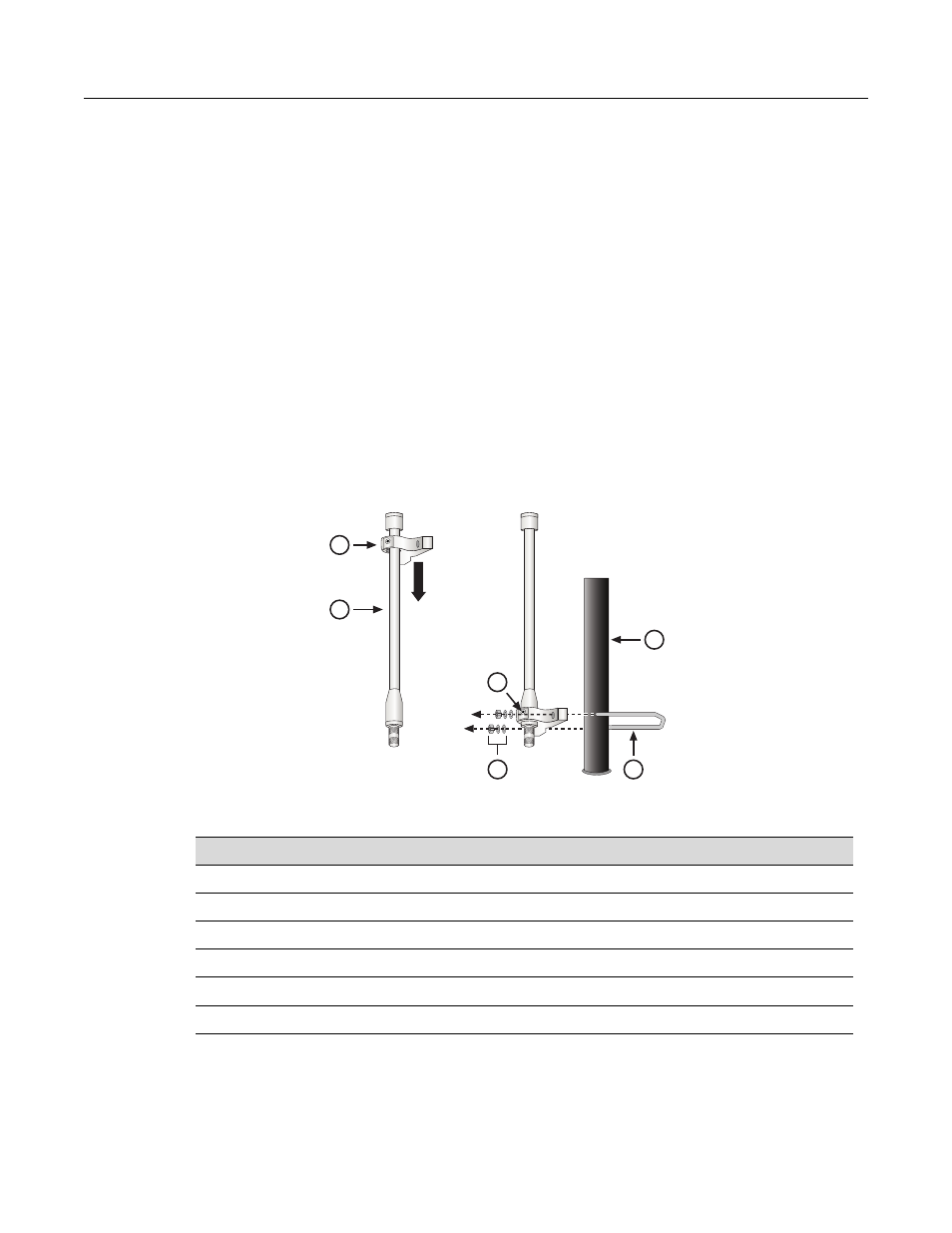

Figure 3-2 Mounting the 2.4 GHz Omni-Directional Antenna to a Mast
Table 3-3 RoamAbout Omni-Directional Base Station Antenna Mounting Components
# Component
1 Mount
2 Antenna (RBTES-BG-M08M)
3 Mast (user supplied)
4 U-bolt
5 Washers and nuts for tightening U-bolt to mount
6 Set screws for tightening antenna to mount
5 4
3
6
2
1
