Determining the Antenna Locations
RoamAbout Antenna Site Preparation and Installation Guide 1-5
Line of Sight
The shape of the radio beam, defined as the Fresnel Zone, is widest in the middle. The Fresnel
Zone is shown as the gray area between the antennas in
Figure 1‐1 . The exact shape and width of
the Fresnel Zone is determined by the distance between the antenna and frequency of the radio
signal.
The radius of the radio beam, shown as the lower half of the Fresnel Zone, is the distance from the
center of the beam outward in any direction. The length of the radius is not based on the data rate
and the type of antenna.

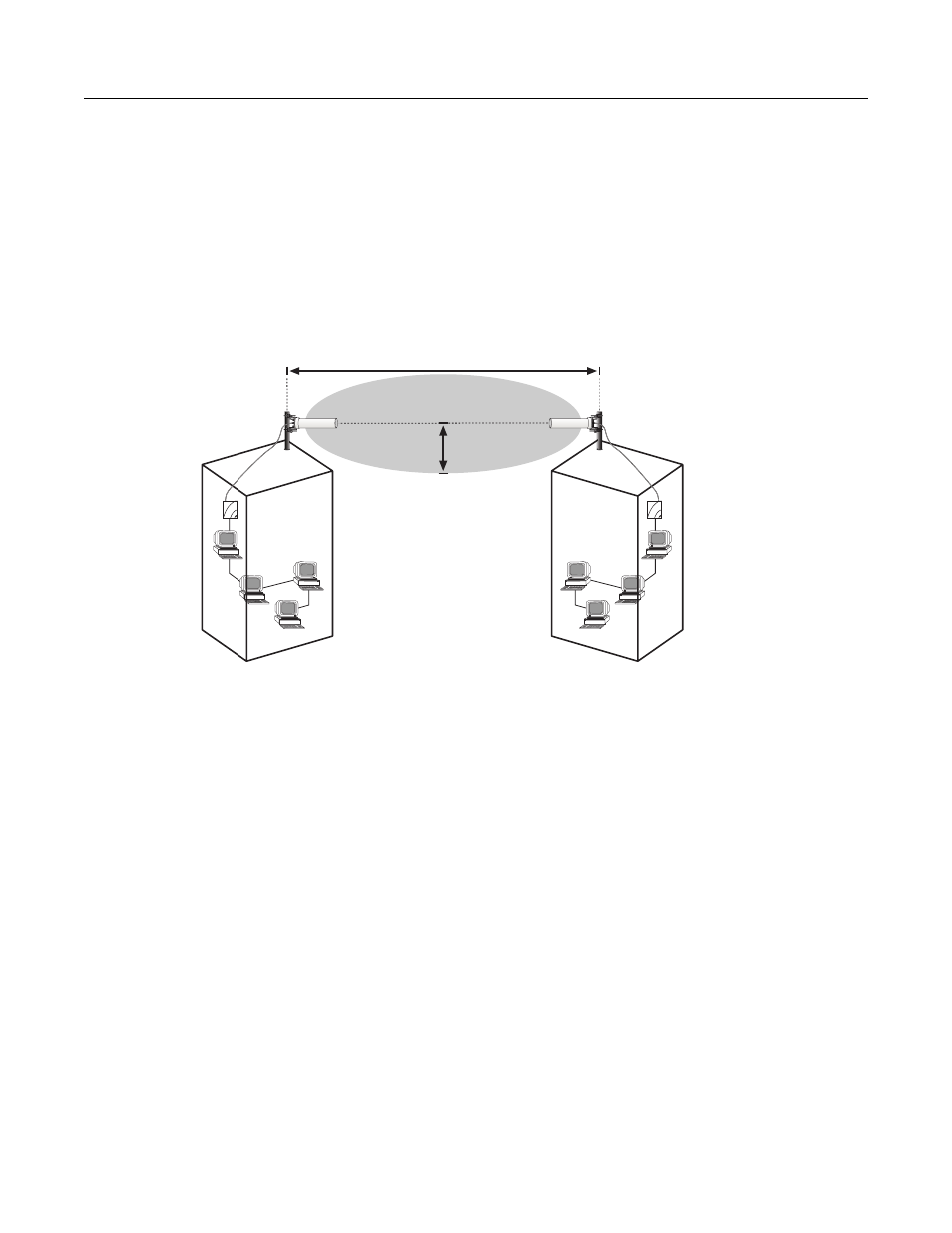

Figure 1-1 Fresnel Zone and Line of Sight Clearance
If a significant part of the Fresnel Zone is obstructed, a portion of radio energy is lost, resulting in
reduced performance. For optimal performance, ensure that the antenna products you choose, in
combination with the height of the antenna installation above ground, provide sufficient clearance
to allow your antenna installation to cover the distance between the two sites.
Obstacles within the line of sight can significantly reduce the distance and performance.
Obstructions include neighboring buildings, trees, and power lines, as shown in
Figure 1‐2 .
Total Distance
Radius
