Mounting the Antenna
RoamAbout Antenna Site Preparation and Installation Guide 3-27
Attaching the Bracket to the Antenna
illustrates how to attach the antenna bracket to the 5.8 GHz panel antenna.
lists the components for this procedure.

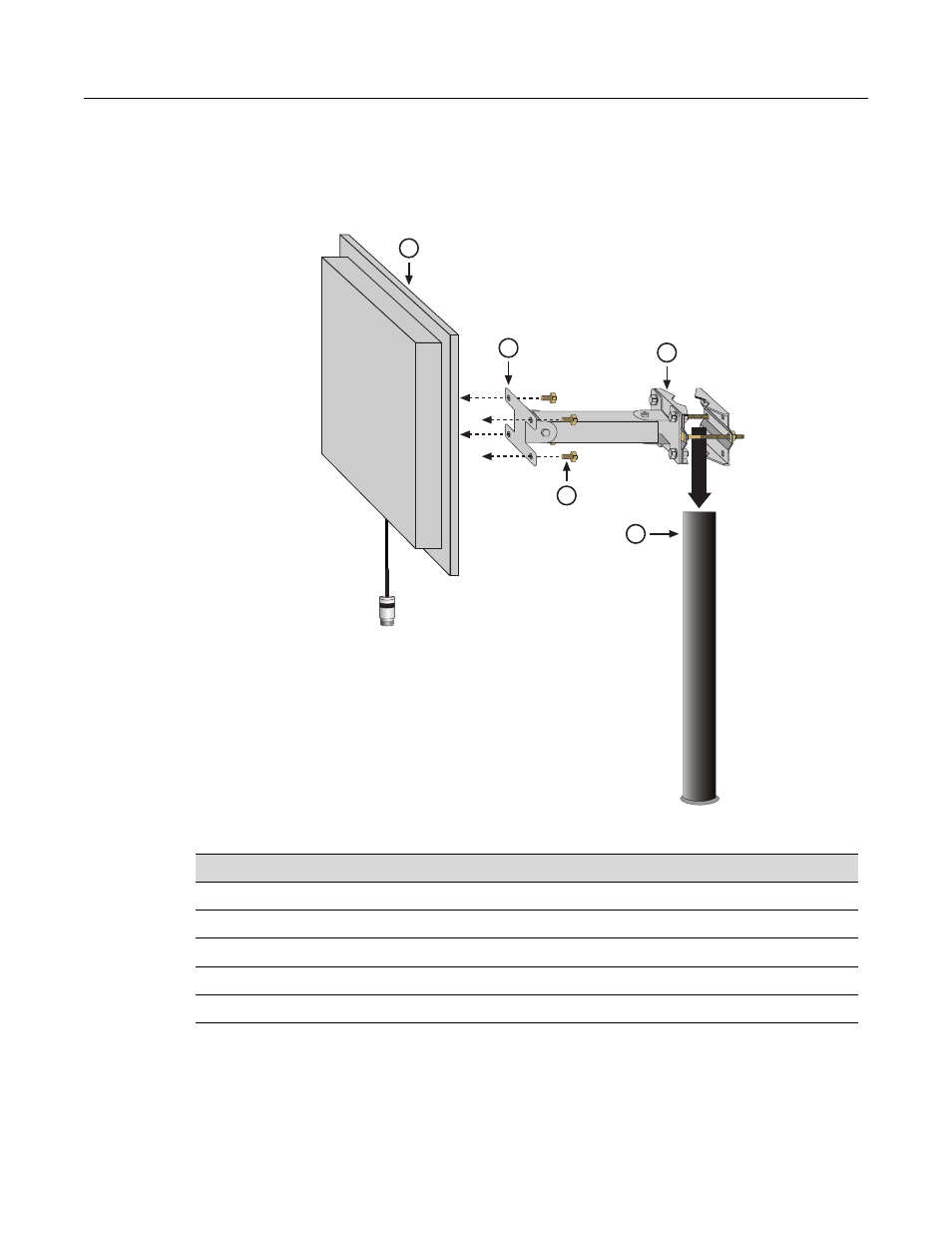

Figure 3-14 Attaching the 5.8 GHz Panel Antenna Bracket to the Antenna
Table 3-12 5.8 GHz Panel Antenna Bracket to Antenna Components
#
Component
1
Antenna bracket
2
Antenna (RBTES-AH-P23M)
3
Screws for attaching antenna bracket to the antenna
4
Mast brackets
5
Mast (user supplied)
1
5
3
2
4
