Mounting the Antenna
3-12 Antenna Installation
Mounting On a Narrow Mast
illustrates how to mount the RoamAbout 2.4 GHz directional antenna on a narrow
lists the narrow mast mounting components.

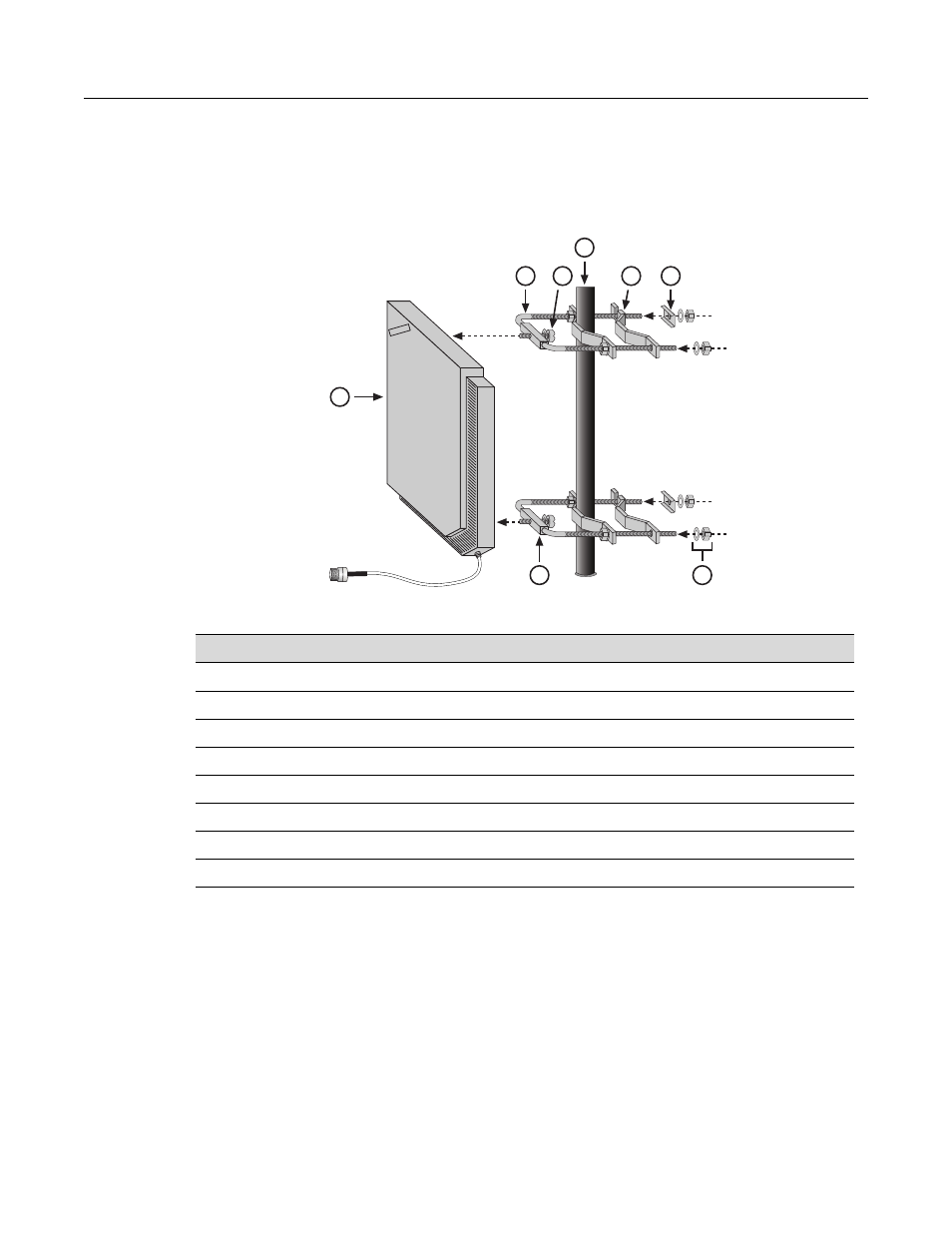

Figure 3-4 Mounting the RoamAbout 2.4 GHz Directional Antenna on a Narrow Mast
Table 3-5 RoamAbout 2.4 GHz Directional Antenna Narrow Mast Mounting Components
#
Component
1
Antenna (RBTES-BG-P18M)
2
U-bolts
3
Bolt to attach antenna to mount
4
Mounting bracket
5
Channel washer
6
Flat washer and nut
7
Antenna tilt angle adjuster
8
Mast (user supplied)
2
3
4
5
6
7
1
8
