Mounting the Antenna
3-10 Antenna Installation
Mounting the RoamAbout 2.4 GHz Directional Antenna
You can mount the RoamAbout 2.4 GHz directional antenna (part number RBTES‐BG‐P18M) on a
wide or narrow mast.
The RoamAbout 2.4 GHz directional antenna kits include the following hardware:
• Two U‐brackets
• Four mounting brackets
• Four flat washers, and hex nuts
• Two channel washers
Mounting on a Wide Mast
Figure 3‐3 illustrates how to mount the RoamAbout 2.4 GHz directional antenna on a wide mast.
Table 3‐4 lists the wide mast mounting components.

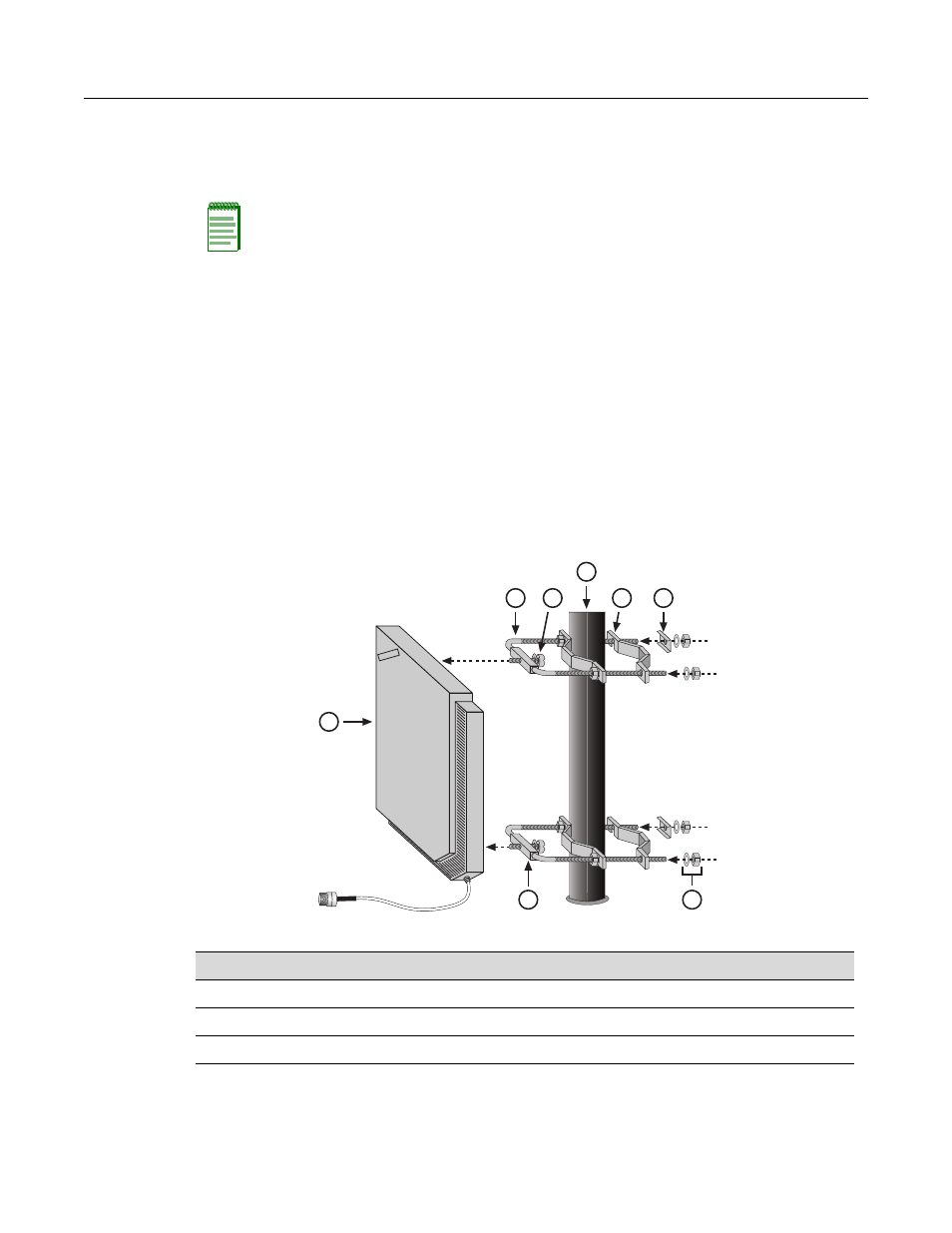

Figure 3-3 Mounting the RoamAbout 2.4 GHz Directional Antenna on a Wide Mast
Notes:
Wide masts have dimensions of 1.25 to 2.5 inches [1.66 to 2.88 Outside Dimensions (OD)] for
Schedule 40 pipe.
Narrow masts have dimensions of less than 1.25 inches (1.66 OD) for Schedule 40 pipe.
r Table 3-4 RoamAbout 2.4 GHz Directional Antenna Wide Mast Mounting Component
# Component
1 Antenna (RBTES-BG-P18M)
2 U-bolts
3 Bolt to attach antenna to mount
4 Mounting bracket
1
2 3 4 5
6 7
8
