Mounting the Antenna
RoamAbout Antenna Site Preparation and Installation Guide 3-21
8.
After mounting the antenna, connect the antenna cables as described in “
Mounting On a Wall
illustrates how to mount the RoamAbout 5.3 and 5.8 GHz omni‐directional antennas
on a wall.
lists the wall mounting components.

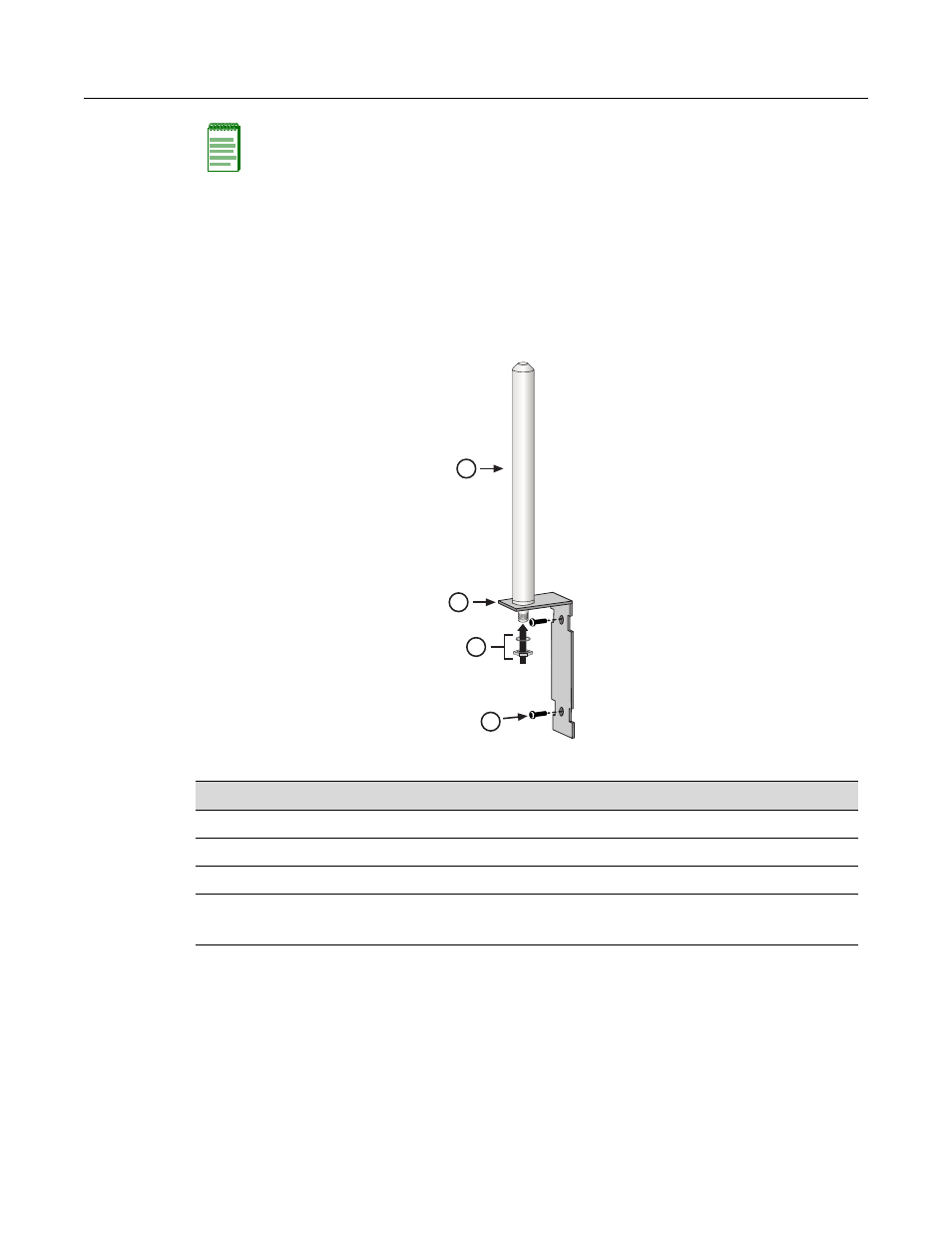

Figure 3-10 Wall Mounting the 5.3 and 5.8 GHz Omni-Directional Antenna
To mount a 5.3 or 5.8 GHz omni‐directional antenna to a wall, perform the following steps:
1.
Insert the connector end of the antenna through the large hole in the mounting bracket.
2.
Insert the washer over the antenna connector end.
3.
Thread the nut over the antenna connector end until the nut is finger tight.
4.
Tighten the hex nut with a wrench.
Note: Do not allow the top surface of the bracket to exceed the top of the mast.
Table 3-9 5.3 and 5.8 GHz Omni-Directional Antenna Wall Mounting Components
#
Component
1
Antenna (RBTES-AH-M10M) or (RBTES-AM-M10M)
2
Mounting bracket
3
Lock washer and hex nut for securing antenna to mount
4
Screws for fastening bracket to wall
Note: The antenna kit does not include the screws required to fasten the bracket to wall.
1
2
4
3
