Mounting the Antenna
RoamAbout Antenna Site Preparation and Installation Guide 3-17

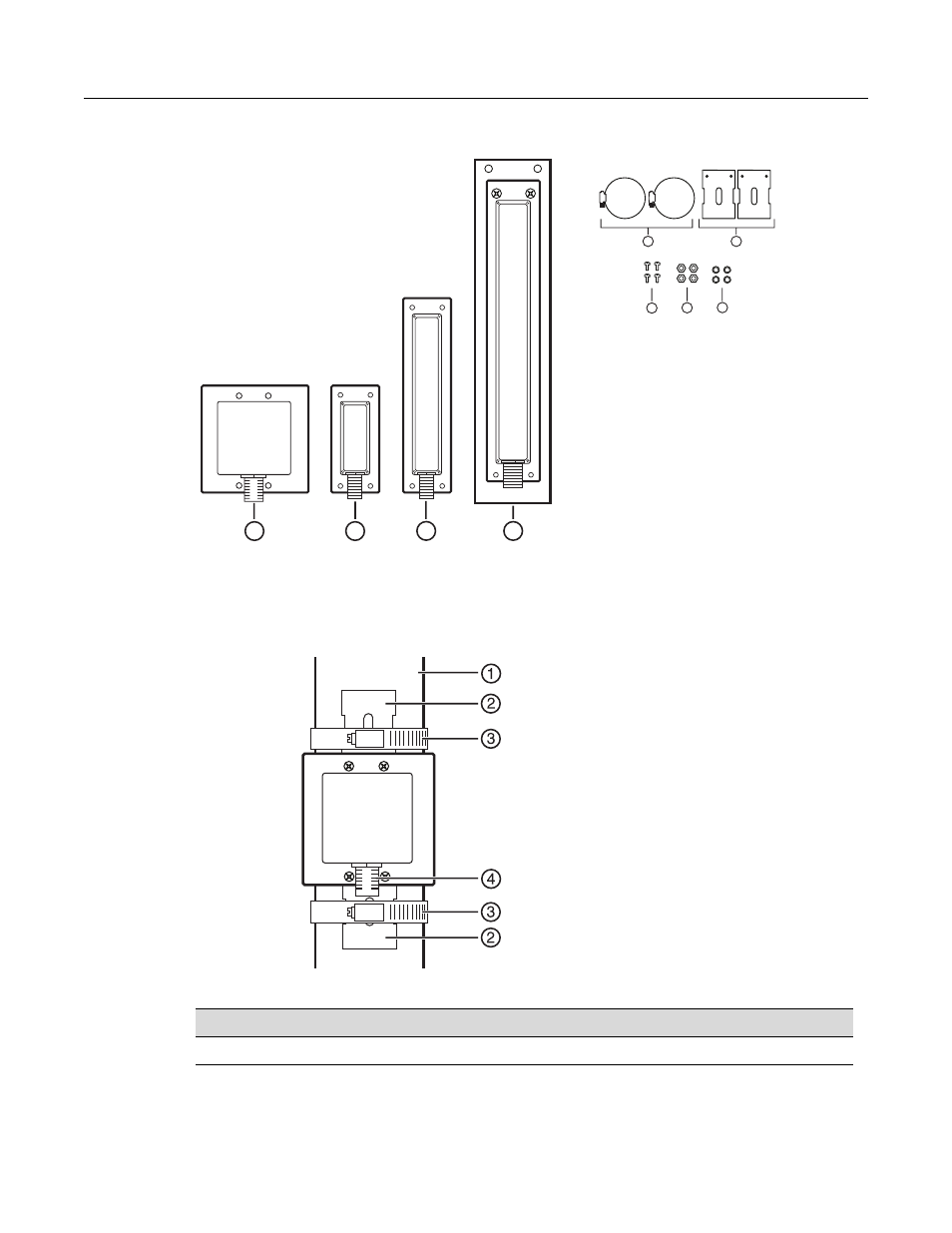

Figure 3-7 RBT-1602 Antennas
Figure 3‐8 illustrates how to mount the 2.4 GHz 6 dBi sector panel antenna. Table 3‐6 lists the
mounting components.
Figure 3-8 Mounting 2.4 GHz 6 dBi Sector Panel Antenna
Table 3-7 RoamAbout 2.4 GHz 6 dBi Sector Panel Mast Mounting Components
# Component
1 Pole
2 Mounting bracket
1 2
3 4 5
i ki
1. Mounting clamps
2. Mounting brackets
3. Screws
4. Lock washers
5. Lock screws
1 2 3 4
1. RBTES‐BG‐S1060
2. RBTES‐BG‐S07120
3. RBTES‐BG‐S06180
4. RBTES‐AW‐S10180, RBTES‐AW‐S12120,
RBTES‐AW‐S1460
