3.4 User Interface
3.4.1 Design
Via the user interface, you can set the communication of your PV plant devices, configure the Sunny Central parameters
and read off error messages and operating data.

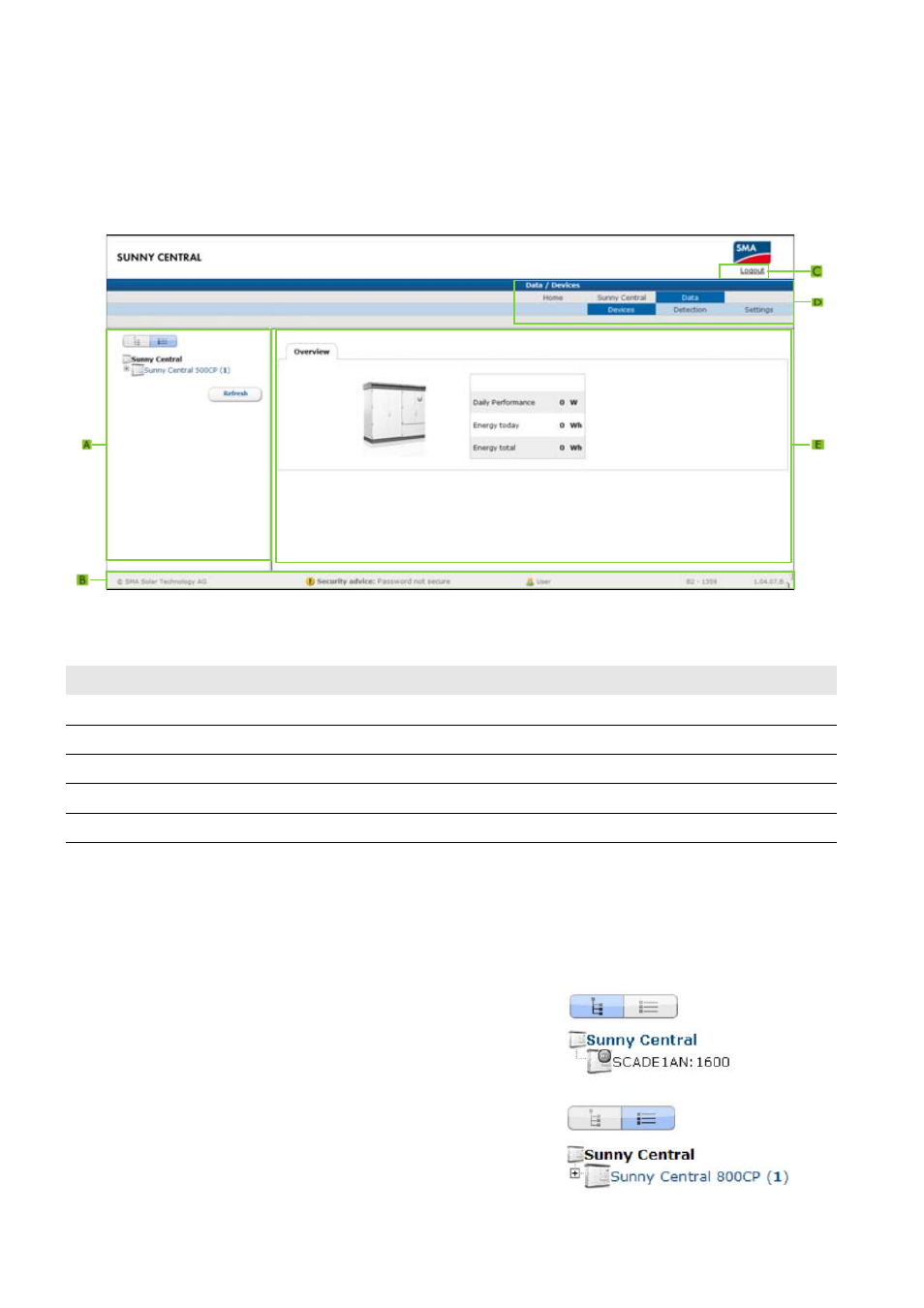

Figure 6: Design of the user interface (example)
3.4.2 Structural View and Device View
In the structural view and the device view, you can call up data of the individual devices of your PV plant. Depending on
the view, the devices are sorted and displayed differently.
Structural View
In the structural view, the user interface shows the devices in the order
in which they are connected to the data bus.
Device View
In the device view, the user interface shows all devices sorted by device
type. Device types are, for example, all Sunny Centrals. The number
shown in parentheses indicates the number of devices of a device type.
Position Designation
A Structural view or device view
B Status bar
C Logout button
D Navigation bar
E Content area
