HEIDENHAIN CNC PILOT 4290 103
1
.16 TURN PLUS: YZ Plane Cont
ours

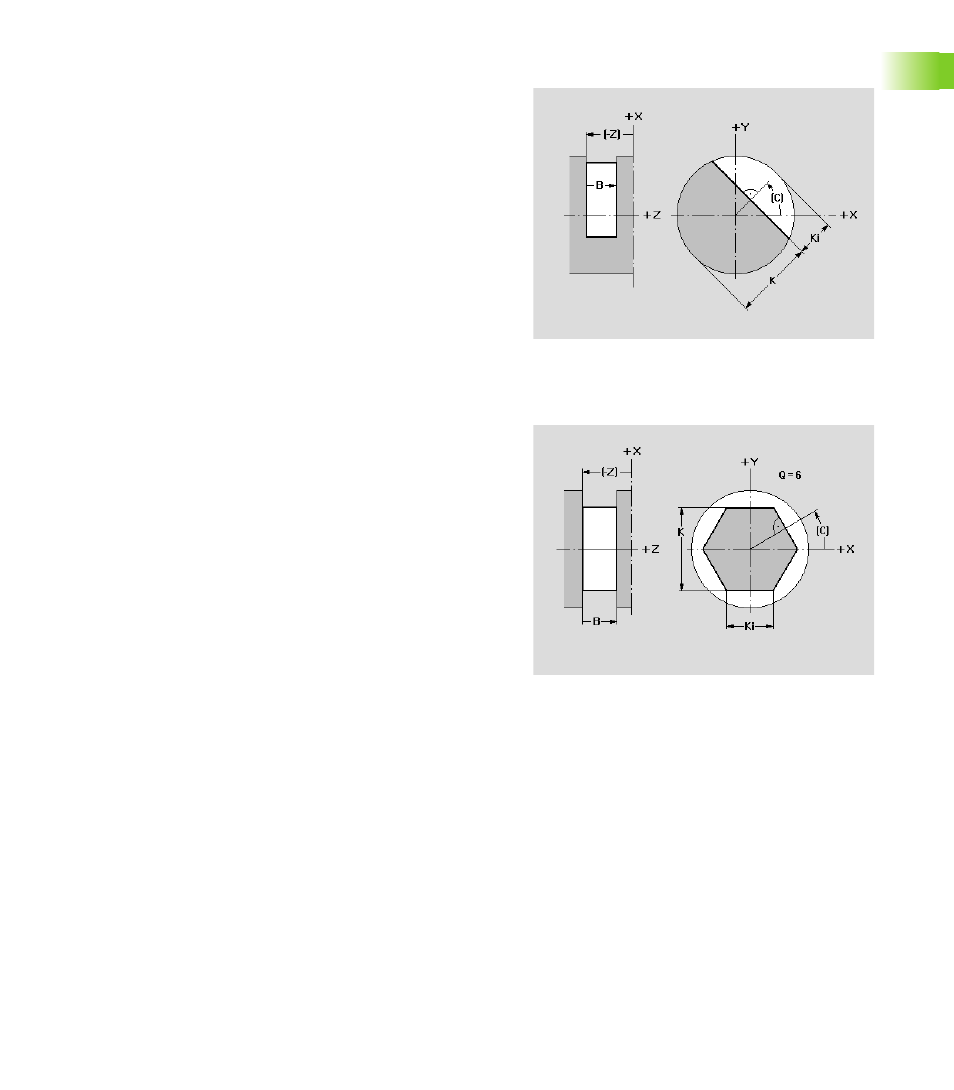

Single surface in YZ plane
This function defines a single surface in the YZ plane.
Centric polygons in YZ plane
This function defines polygonal surfaces in the YZ plane.
Parameters
Ki
Depth (of material to be milled)
K Residual depth (remaining material)
B Width (reference: reference edge Z)
„ B<0: Surface in negative Z direction
„ B>0: Surface in positive Z direction
Parameters
Q
Number of sides (Q >= 2)
K Width across flats (inscribed circle diameter)
Ki Edge length
B Width (reference: reference edge Z)
„ B<0: Surface in negative Z direction
„ B>0: Surface in positive Z direction
