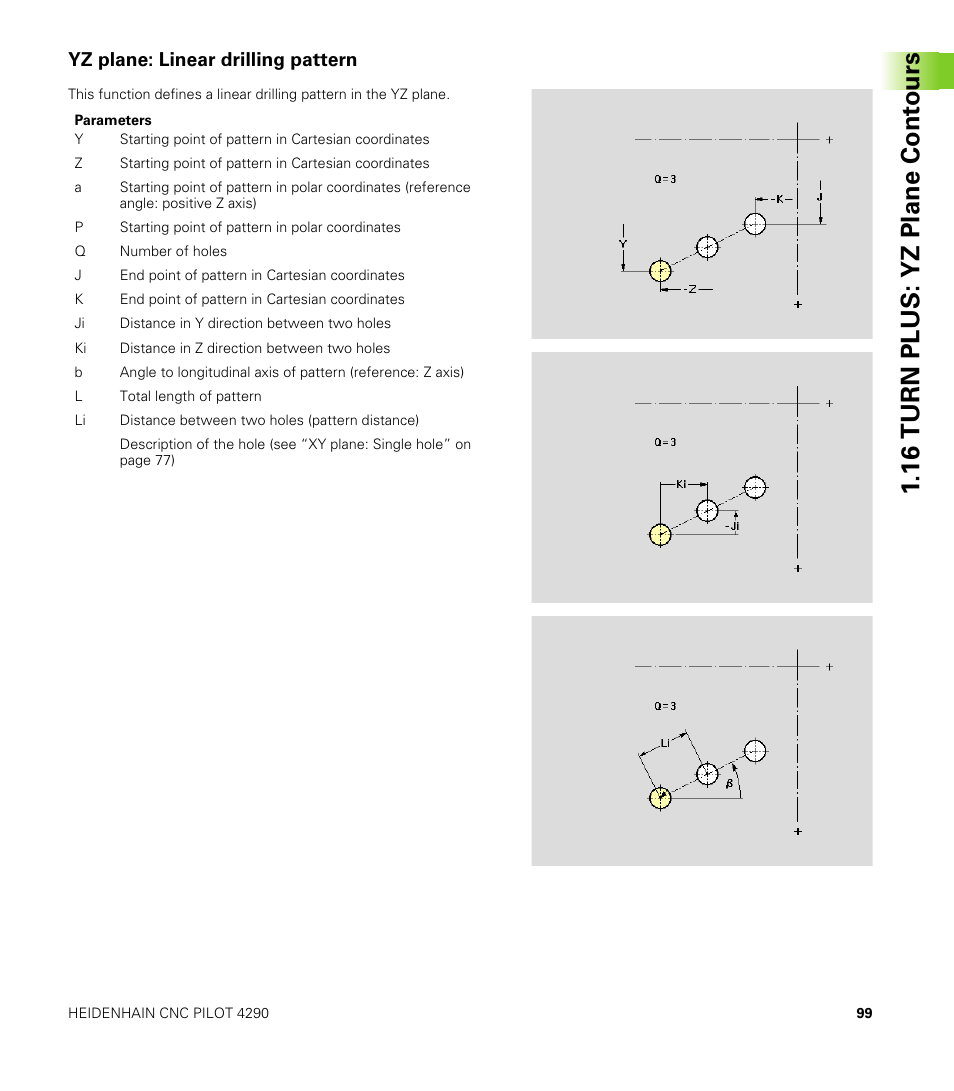

Yz plane: linear drilling pattern, 16 turn plus: yz plane cont ours – HEIDENHAIN CNC Pilot 4290 V7.1 Description of B and Y axes User Manual
Page 99
