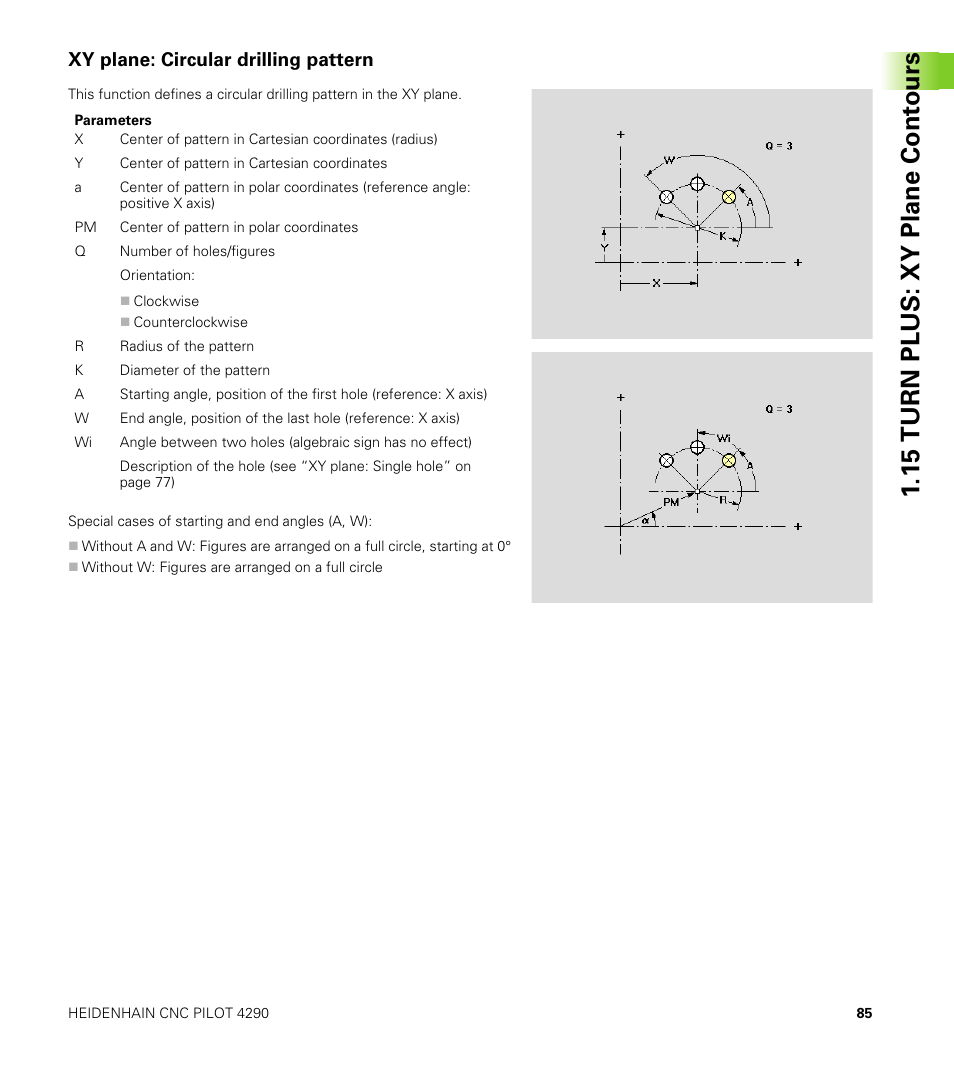

Xy plane: circular drilling pattern, 15 turn plus: xy plane cont ours – HEIDENHAIN CNC Pilot 4290 V7.1 Description of B and Y axes User Manual
Page 85
