2. To view interfaces that do not use Internet Protocol (IP), such as Fibre Channel interfaces, as
well as interfaces that do use IP, select Show non-IP Interfaces .
3. To view only interfaces that use IP, deselect Show non-IP Interfaces .
4. To view only the interfaces on a single device, select the device in the tree view or in the device
list view.
About IP configuration of network interfaces on devices
You can perform IP configuration of network interfaces when working with a placeholder device
prior to discovery. When you add a device and choose a particular model, the model defines the
number, type and usage characteristics of network interfaces to expect on such a device.
You can view and edit each network interface and set up IP configuration selecting an appropriate
IP from the network to which each interface connects. The process for editing IP configuration
varies, depending on the device's phase.
Placeholder device IP configuration

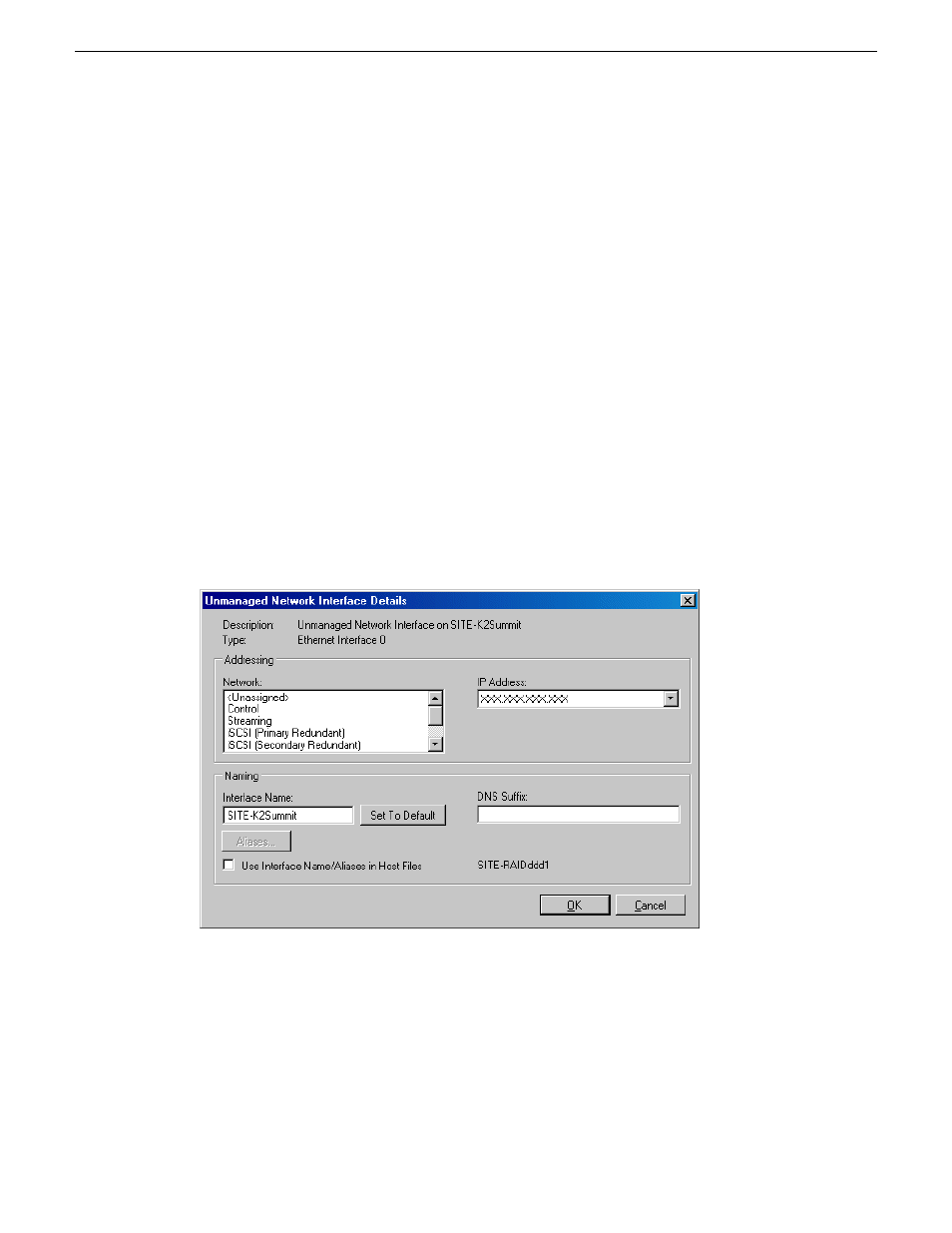

On a placeholder device, you edit network interfaces using the Unmanaged Network Interfaces
dialog box.
The Unmanaged Network Interfaces dialog box allows you only to save changes to the system
description.
Discovered device IP configuration
On a discovered device, you edit network interfaces using the Managed Network Interfaces dialog
box.
