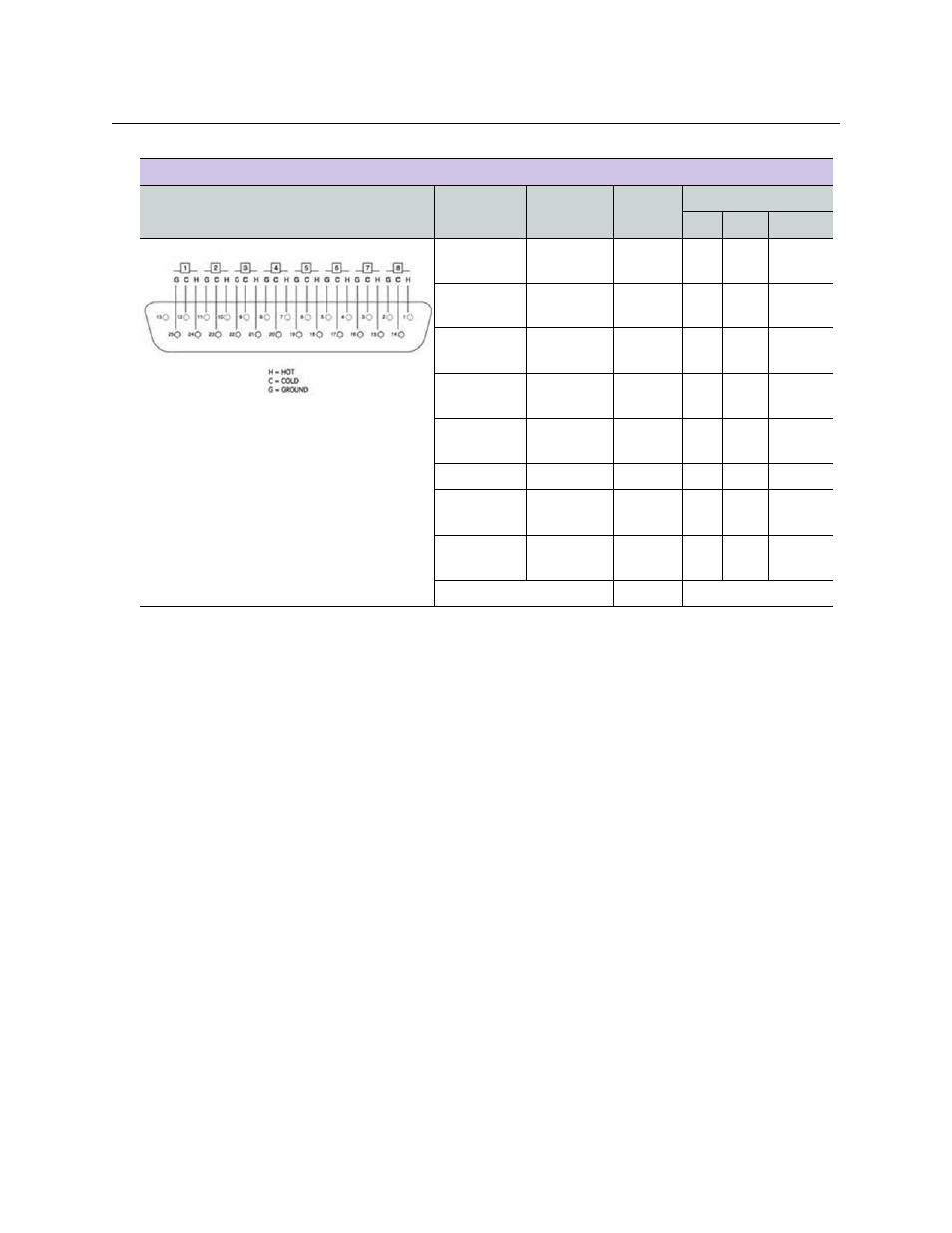

Audio Input & Output
Audio In
#18
Audio Out
#19 Channel
DB25 Pin Number
Hot Cold Ground
Base Station #18 & #19
DB25 Female (x2)
Return
Audio 1 In
Cam Audio
1 Out
1 24 12 25
Return
Audio 2 In
Cam Audio
2 Out
2 10 23 11
Return
Audio 3 In
Not Used 3 21 9 22
Return
Audio 4 In
Not Used 4 7 20 8
Intercom
Program In
Not Used 5 18 6 19
Not Used Not Used 6 4 17 5
Intercom
CH 1 In
Intercom
CH 1 Out 7 15 3 16
Intercom
CH 2 In
Intercom
CH 2 Out 8 1 14 2
Not Connected 13
