Installing and Connecting the System
Mounting the PowerPlus Unit to the CopperHead 3404 Camera Unit
Mounting the PowerPlus Unit to the CopperHead 3404 Camera Unit
This example illustrates use of a camera with a V-Mount battery system. Your system may
differ. This case illustrates a configuration where the camera is powered through the
PowerPlus High Power option. The PowerPlus Unit is powered through a Hybrid fiber cable
which is powered from the HDX Power Supply.

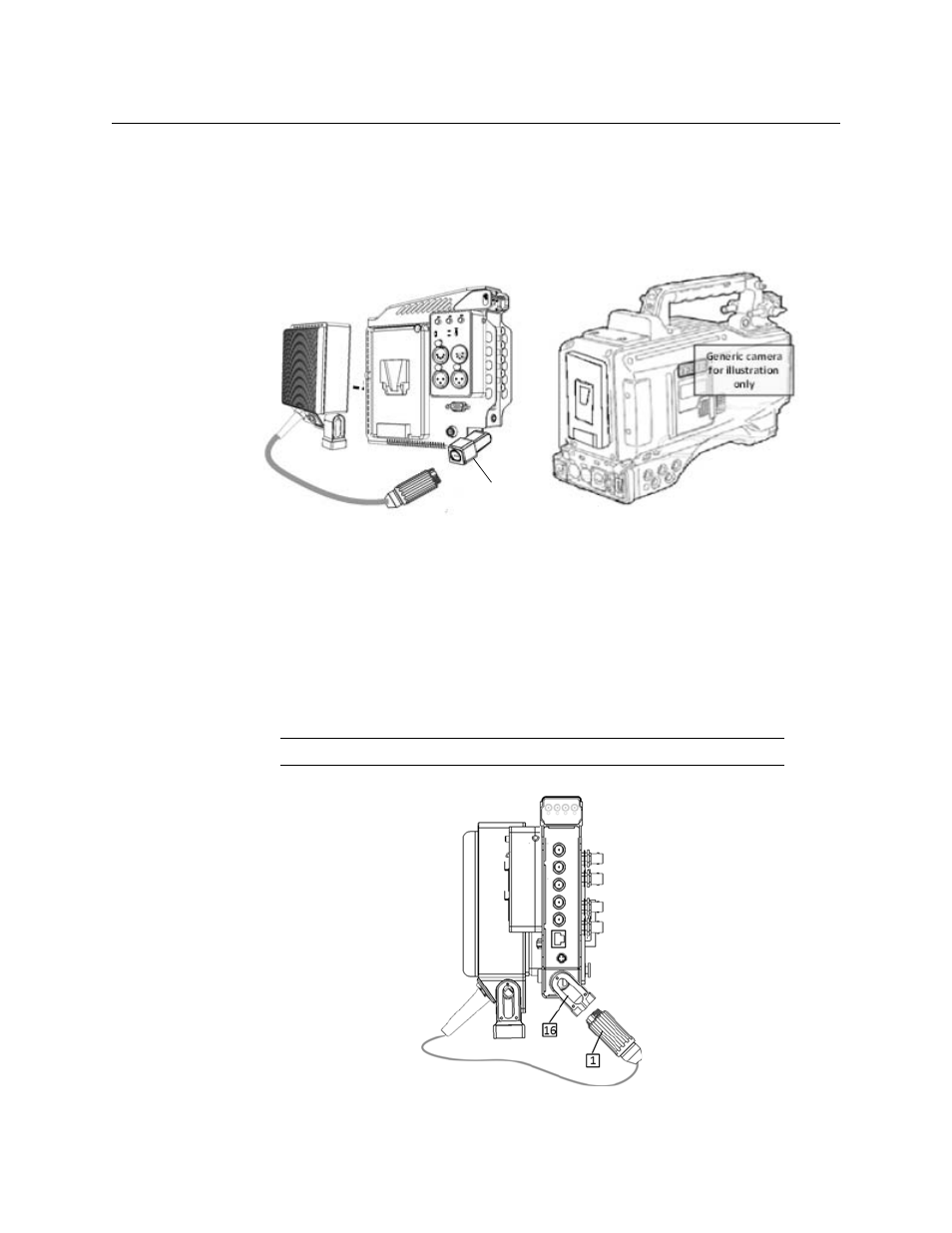

Fig. 5-3: Mounting the PowerPlus Unit to the CopperHead 3404 Camera Unit
Mounting the PowerPlus Unit to the CopperHead 3404 Camera Unit
1 The CopperHead 3404 Camera Unit is mounted to the camera (
2 The PowerPlus Unit is attached to the CopperHead 3404 Camera Unit in place of the
battery. It is attached in the same manner as the camera battery.
3 When the PowerPlus Unit is securely mounted to the CopperHead 3404 Camera Unit
you must connect the supplied attached fiber cable connector between the PowerPlus
(1) and the fiber connector on the Camera Unit (16).
Fig. 5-4: Attaching the fiber cable
Note: You must use the HDX-2-ST Power Supply in this configuration.
OpticalCON
receptable on swivel
