Page 58
52
Installing and Connecting the System
Connections to the CopperHead 3404 Camera Unit
Connections to the CopperHead 3404 Camera Unit

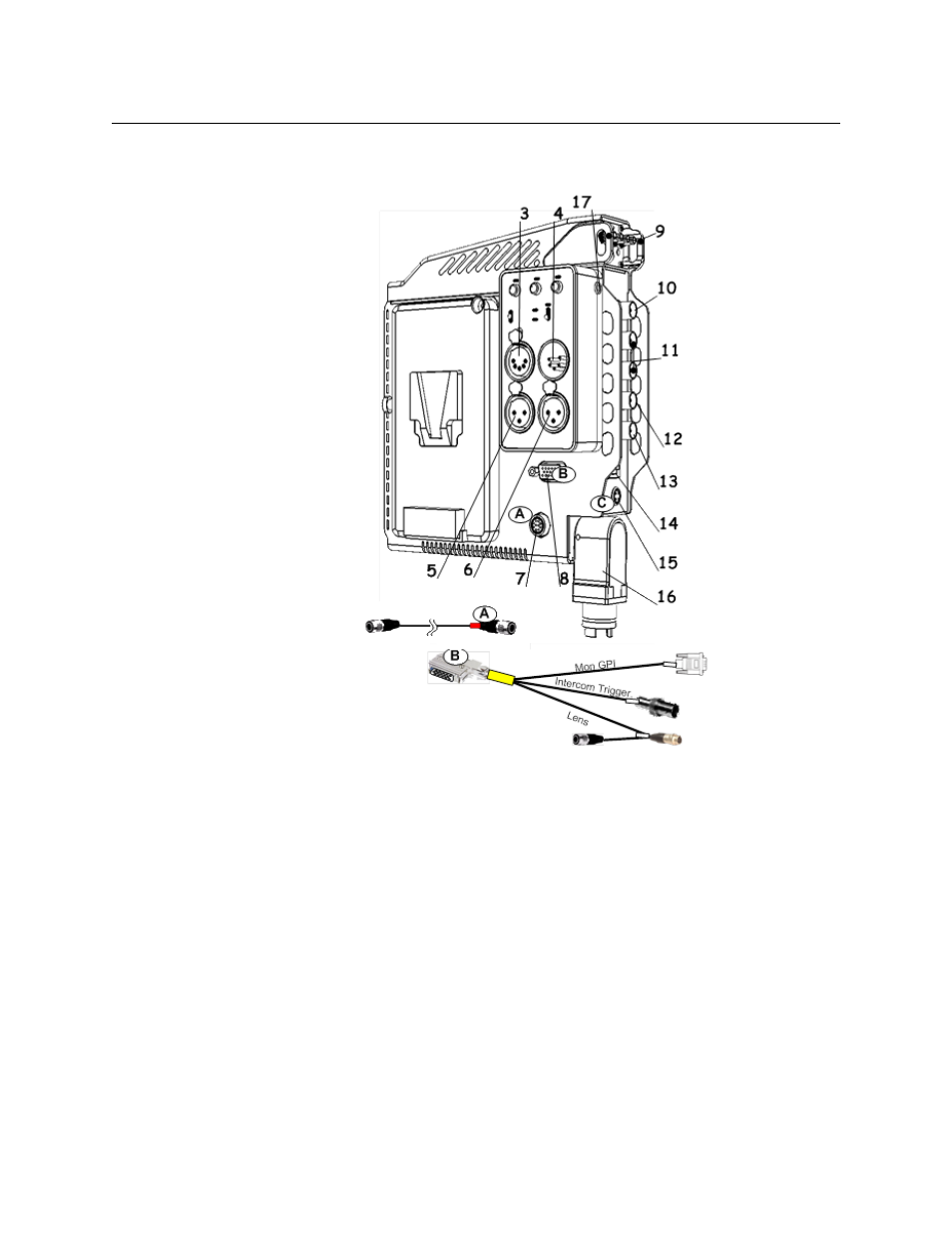

Fig. 5-11: CopperHead 3404 Camera Unit Back Side Connections
This information is presented here to provide a single list of all Camera Unit connections.
Key numbers refer to the diagram above and to the Overview Diagram found in
Multi-Pin Cable Assemblies Used with the CopperHead 3404 Camera Unit
• A: Camera Remote Control (Remote) Connector
Connect this to the CCU input on your camera. The Grass Valley supplied cable has a
Red sleeve at the end to be connected to the CopperHead 3404 Camera Unit (see
on page 88 for a list of Grass Valley supplied cables).
• B: Data/GPI /Tally Connector
This connector carries a number of control, GPI and Tally signals(see
on page 94 for wiring details).
• C: Power Wafer Connector
Connect the supplied Power Wafer cable between this connector and the Power Wafer.
