SMPTE Hybrid Fiber between Base Station and Camera Unit
(Infrastructure)

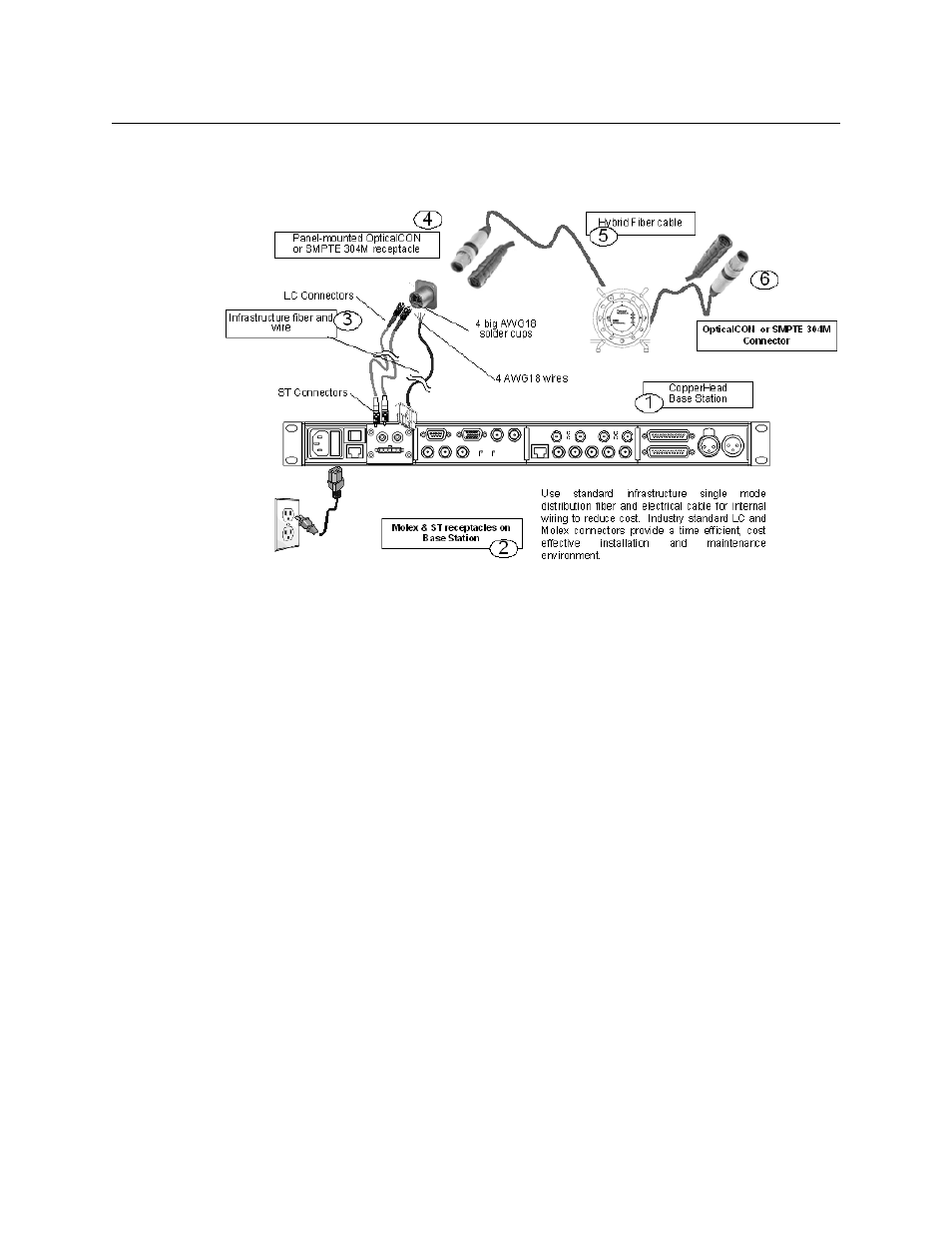

Fig. 5-7: SMPTE Hybrid Fiber between Base Station and Camera Unit (Infrastructure Wiring)
Panel mounted fiber connectors can be used for permanent installations such as
communications closets, truck connector panels and sports facilities or performance
venues.
A panel mounted OpticalCON or SMPTE 304M receptacle (4) is connected to the Base
Station (1) through infrastructure grade wiring. Two LC Fiber Optic connectors and four
soldered AWG18 copper power wires (3) connect to the Base Station through a Molex and
ST receptacle (
2 ).
Between the panel mounted receptacle and the Camera Unit is standard Hybrid Fiber Optic
cable (5). This cable is matched to the panel mounted receptacle with either an OpticalCON
or SMPTE 304M connector (4) to (6).
