Page 32
26
Feature Detailed Description
CopperHead 3404 Camera Unit Back Side
• 19: Intercom 2 Monitor Level Control and Activity Indicator (Channel 8)
• 20: Return Program Monitor Level Control and Activity Indicator (Channel 5)
Area D - Miscellaneous Connectors
For information regarding available cables and customer furnished cables, see
on page 89. For wiring information, see

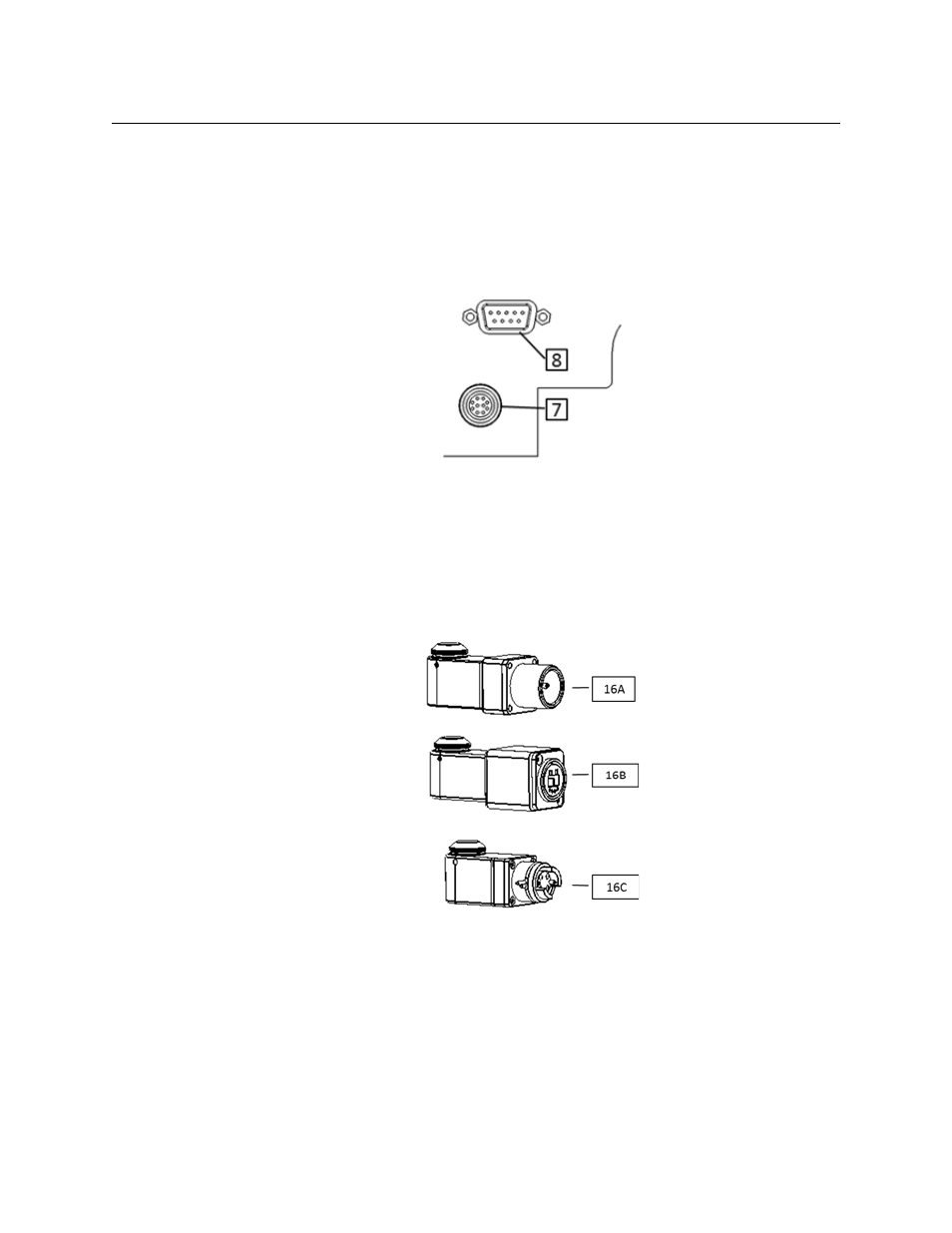

Fig. 4-11: Miscellaneous Connectors
• 7: Camera Remote Connector (for optional Camera Remote Control unit). This
connector also carries a Data Signal for Serial Communication (RS232/422/485)
• 8: Production DB15HD Connector for Tally, 2nd GPI, Intercom Trigger, and Serial
Communication (RS232/422/485)
Area E - Fiber Connector
Fig. 4-12: Fiber Connectors
The CopperHead 3404 Camera Unit is shipped with one of the three Fiber Connectors
shown in
:
• A: SMPTE 304M (powered)
• B: OpticalCON (powered or unpowered)
• C: MX Expanded Beam (unpowered)
