Connectors of the CopperHead 3404 Camera Unit Front Side

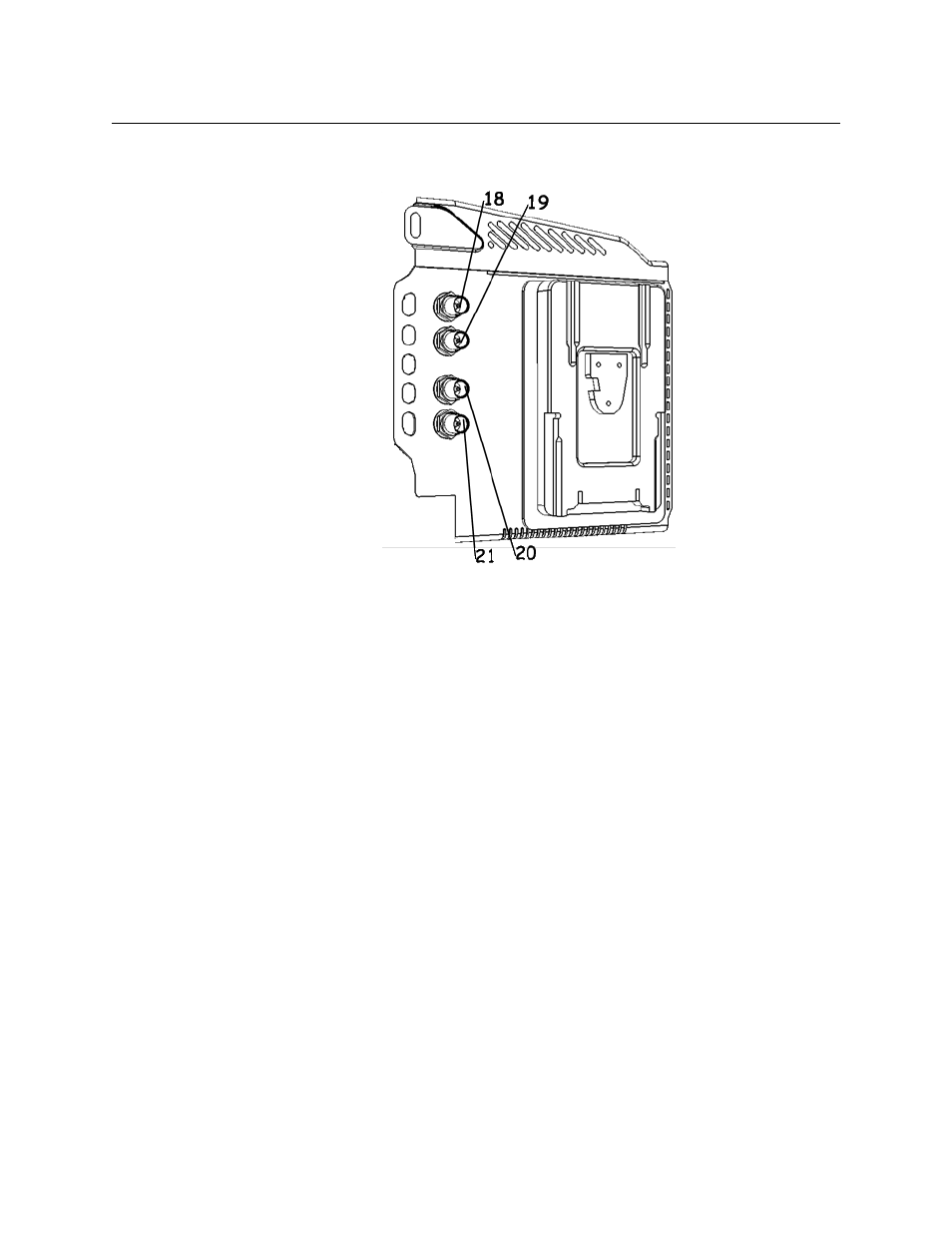

Fig. 5-12: CopperHead 3404 Camera Unit Front Side Connections
• 18: Time Code In
BNC Connector - Carries Time Code signal from the Camera to the Camera Unit. This is
return time code to the Base Station. This requires a short BNC jumper cable between
the Camera Unit and the Camera. Check to confirm the connector type for your camera
time code output.
• 19: Time Code Out
BNC Connector - Carries Time Code signal from the Camera Unit to the Camera. This is
master time code from the Base Station. This requires a short BNC jumper cable
between the Camera Unit and the Camera. Check to confirm the connector type for
your camera time code output.
• 20: VBS Out 2 (Genlock)
BNC Connector - Carries Genlock/Sync from the Camera Unit to the Camera. This
requires a short BNC jumper cable between the Camera Unit and the Camera.
• 21: VBS Out 3 (Prompter)
BNC Connector - Carries a Prompter Feed or additional Base Station return Video from
the Camera Unit to the Camera. This requires a BNC cable between the Camera Unit
and any external equipment.
