30
Feature Detailed Description
CopperHead 3404 Base Station Front Panel
Area D - Signal Strength Indicators/Setup

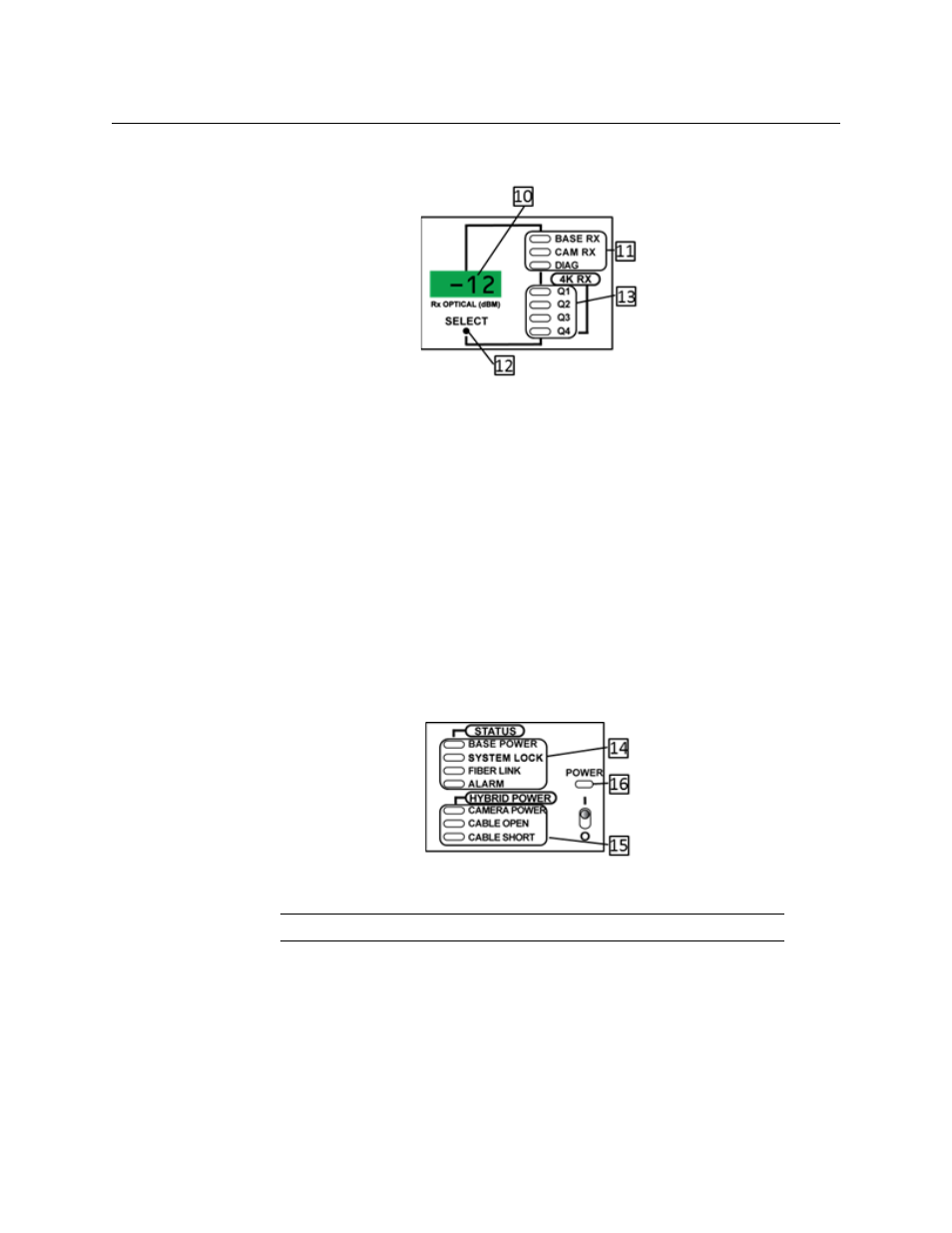

Fig. 4-18: Signal Strength Indicators/Setup
• 10: Signal Strength Readout in dBm - This display changes between display modes
when selected.
• 11: Readout Function Indicator
• BASE RX - Optical Link signal strength received at Base Station from Camera Unit
• CAM RX - Optical Link signal strength received at Camera from Base Station
• DIAG - Digital display is in Diagnostic mode
• 12: Select Button - Chooses between three modes of operation (for details on how the
setup/Diagnostic functions operate, please The CopperHead 3404 Base Station Digital
Display on page 66).
• 13: 4X RX - Monitors four 4K-3G Optical Link signal strength levels received at Base
from Camera.
Area E - Status/Power Indicators
Fig. 4-19: Status/Power Indicators
• 14: Status Indicators
• BASE POWER - indicates the status of all power levels in the Base Station
• Green when all power levels are normal.
• Red when any power level is not normal.
• SYSTEM LOCK - indicates that the Base Station is communicating with the Camera
Unit.
• Green when communicating with Camera Unit
Note: Hybrid Power Indicators are present only on a hybrid power unit.
