42
Installing and Connecting the System
Installing the CopperHead 3404 Transceiver System
Installing the CopperHead 3404 Transceiver System
Mounting the CopperHead 3404 Camera Unit to the Camera
This example illustrates the mounting of a V-Mount battery system. Your system may differ.
This case illustrates a configuration where the camera is powered locally at the camera
position by a battery. This assumes a tactical fiber connection with no hybrid power on the
cable

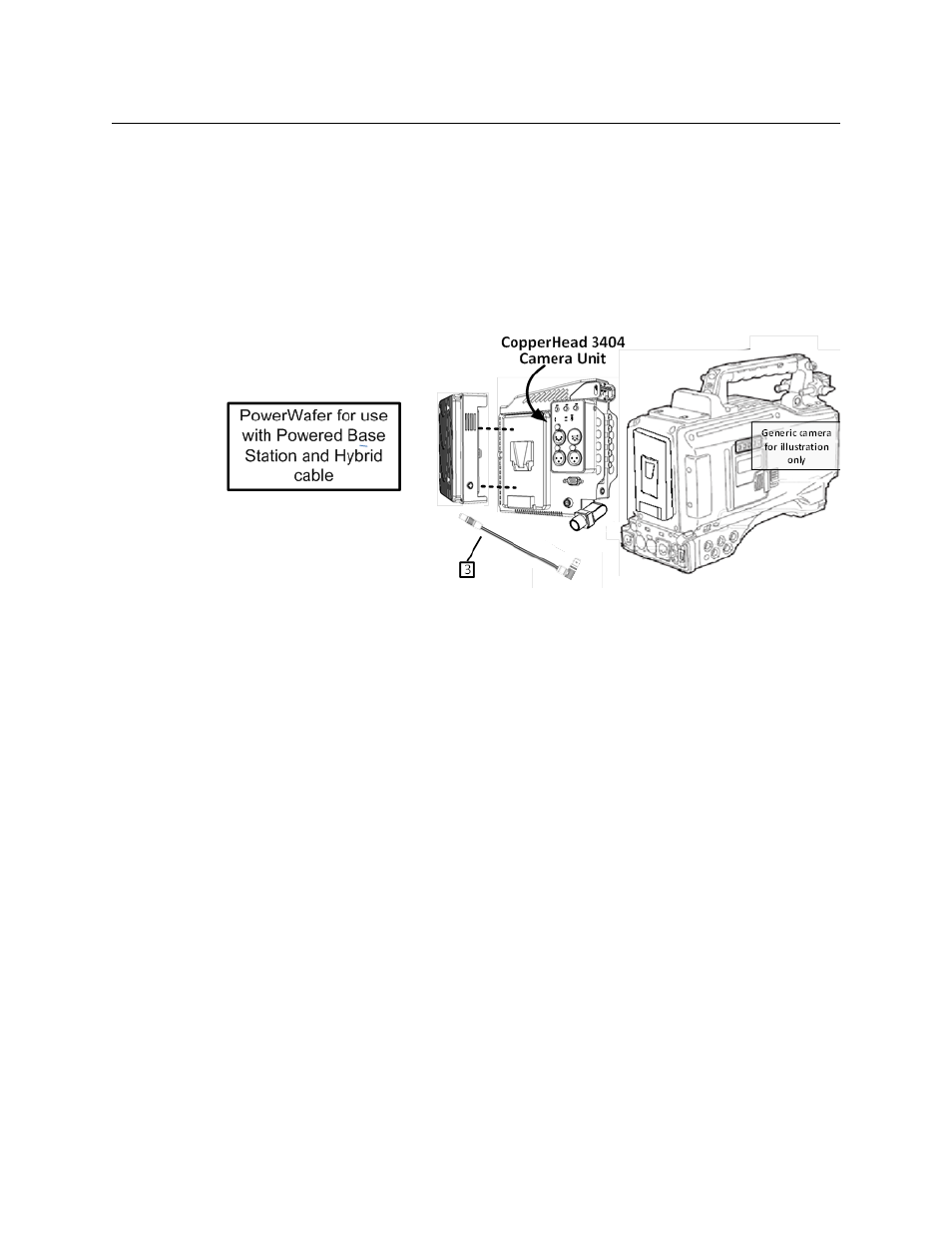

Fig. 5-1: Mounting the CopperHead 3404 Camera Unit to the Camera
Mounting the CopperHead 3404 Camera Unit to the Camera
1 Position your camera so that you can easily access the battery mounting plate at the
rear of the camera. Ensure that the camera is well supported and stable. If a battery is
mounted remove it and put it to one side (camera model shown for illustrative
purposes only - your camera may differ).
2 Attach the CopperHead 3404 Camera Unit to the camera battery mounting plate. The
mounting is mechanically identical to attaching a battery.
3 If you are powering the camera and 3404 Camera Unit by battery, mount the battery to
the CopperHead 3404 Camera Unit battery mounting plate exactly as you would
mount the battery to your camera.
