19
• Device A connects to N1 through GigabitEthernet 1/1, and to other devices in the PIM network
through GigabitEthernet 3/0.
• Device A and Device C connect to N2 through their respective GigabitEthernet 1/1, and to other
devices in the PIM domain through their respective GigabitEthernet 3/0.
• IGMPv2 is required between Device A and N1. IGMPv2 is also required between the other two
devices and N2. Device A acts as the IGMP querier in N2 because it has a lower IP address.
Network diagram

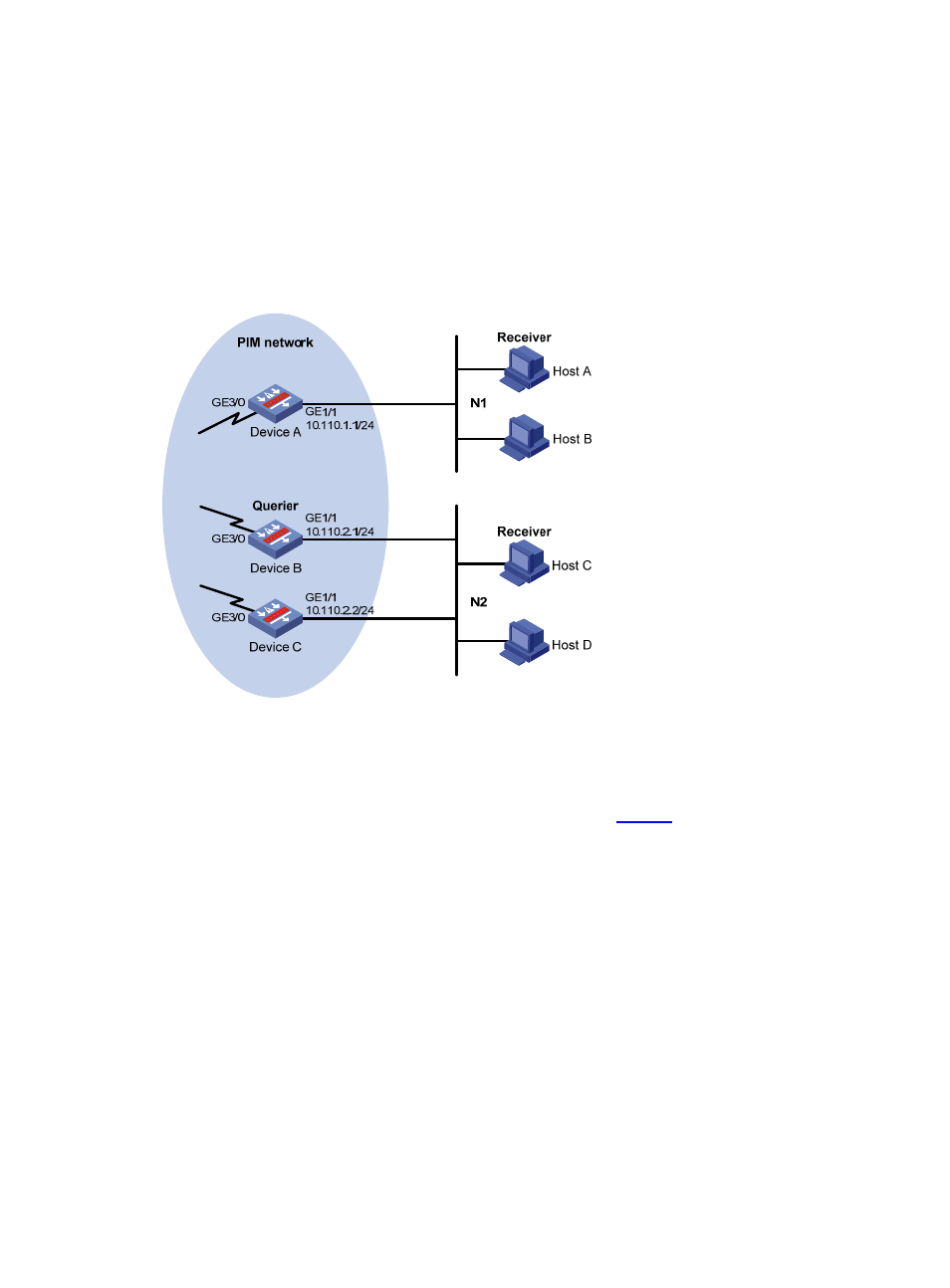

Figure 5 Network diagram for basic IGMP functions configuration
Ethernet
Ethernet
Configuration procedure
Step1 Configure IP addresses and unicast routing
Configure the IP address and subnet mask of each interface as per Figure 5 . The detailed configuration
steps are omitted here.
Configure the OSPF protocol for interoperation on the PIM network. Ensure the network-layer
interoperation on the PIM network and dynamic update of routing information among the devices
through a unicast routing protocol. The detailed configuration steps are omitted here.
Step2 Enable IP multicast routing, and enable PIM-DM and IGMP
# Enable IP multicast routing on Device A, enable PIM-DM on each interface, and enable IGMP on
GigabitEthernet 1/1.
system-view
[DeviceA] multicast routing-enable
[DeviceA] interface gigabitethernet 1/1
[DeviceA-GigabitEthernet1/1] igmp enable
[DeviceA-GigabitEthernet1/1] pim dm
[DeviceA-GigabitEthernet1/1] quit
[DeviceA] interface gigabitethernet 3/0
[DeviceA-GigabitEthernet3/0] pim dm
