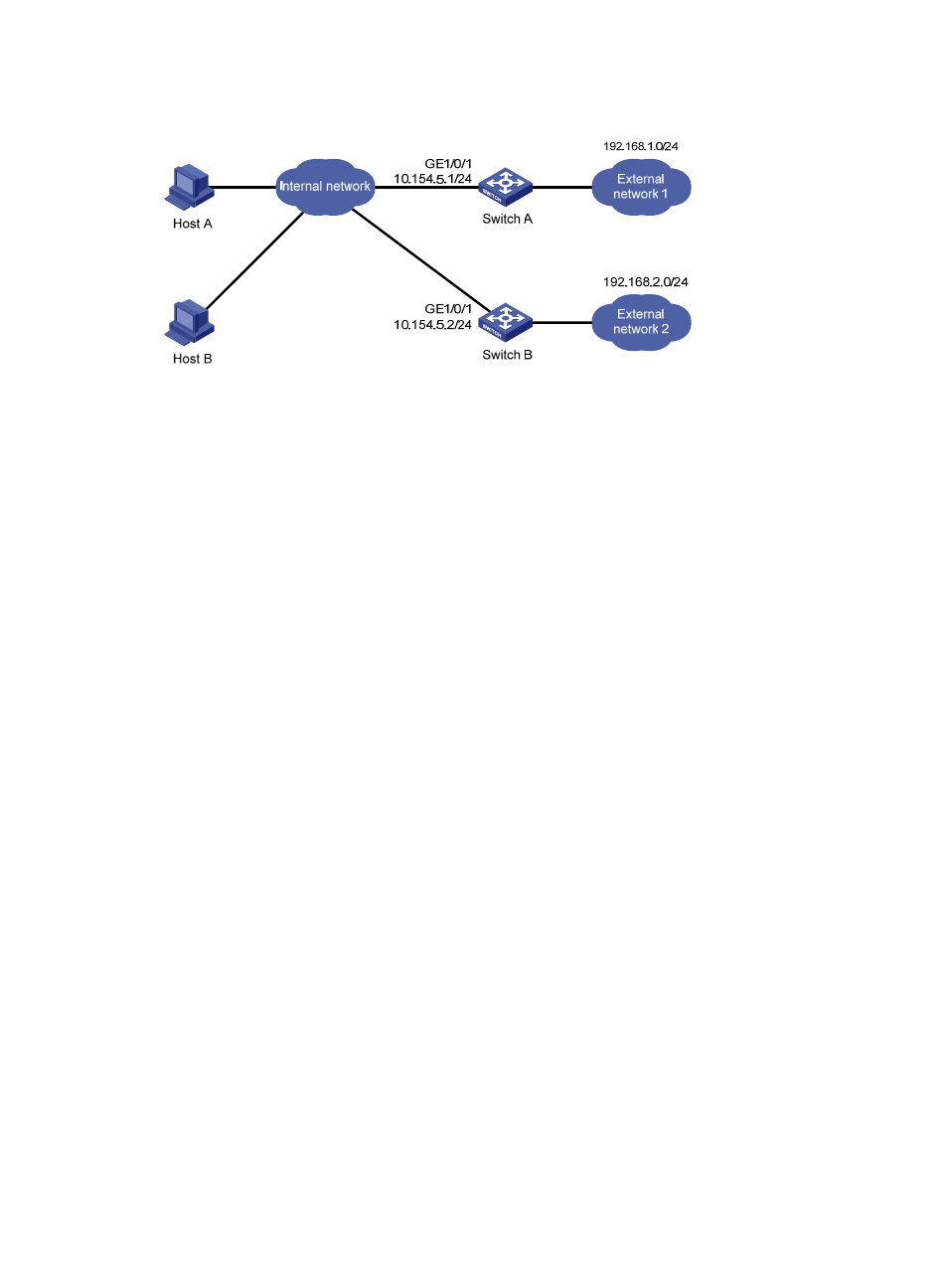

Figure 50 Network diagram

Configuration procedure

Configure Switch A:
# Specify an IP address for GigabitEthernet 1/0/1.

system-view

[SwitchA] interface GigabitEthernet 1/0/1

[SwitchA-GigabitEthernet1/0/1] port link-mode route

[SwitchA-GigabitEthernet1/0/1] ip address 10.154.5.1 24

# Enable IRDP on GigabitEthernet 1/0/1.

[SwitchA-GigabitEthernet1/0/1] ip irdp

# Specify preference 1000 for advertised IP addresses on GigabitEthernet 1/0/1.

[SwitchA-GigabitEthernet1/0/1] ip irdp preference 1000

# Specify the multicast address 224.0.0.1 as the destination IP address for RAs sent by

GigabitEthernet 1/0/1.

[SwitchA-GigabitEthernet1/0/1] ip irdp multicast

# Specify the IP address 192.168.1.0 and preference 400 for GigabitEthernet 1/0/1 to
proxy-advertise.

[SwitchA-GigabitEthernet1/0/1] ip irdp address 192.168.1.0 400

Configure Switch B:
# Specify an IP address for GigabitEthernet 1/0/1.

system-view

[SwitchB] interface GigabitEthernet 1/0/1

[SwitchB-GigabitEthernet1/0/1] ip address 10.154.5.2 24

# Enable IRDP on GigabitEthernet 1/0/1.

[SwitchB-GigabitEthernet1/0/1] ip irdp

# Specify preference 500 for advertised IP addresses on GigabitEthernet 1/0/1.

[SwitchB-GigabitEthernet1/0/1] ip irdp preference 500

# Specify the multicast address 224.0.0.1 as the destination IP address for RAs sent by
GigabitEthernet 1/0/1.

[SwitchB-GigabitEthernet1/0/1] ip irdp multicast
