4-3 Tone

The setting page is used to setup the tone to be generated or detected. The
detected tone is the Disconnect 1 & 2 (for FXO use) and the others are for
generating (when FXS received the “bye” from IP side or waiting time
out by analog phone which keeps handset pick up, it will send busy
tone to analog phone). The disconnect tone is very important for PSTN
status supervision.

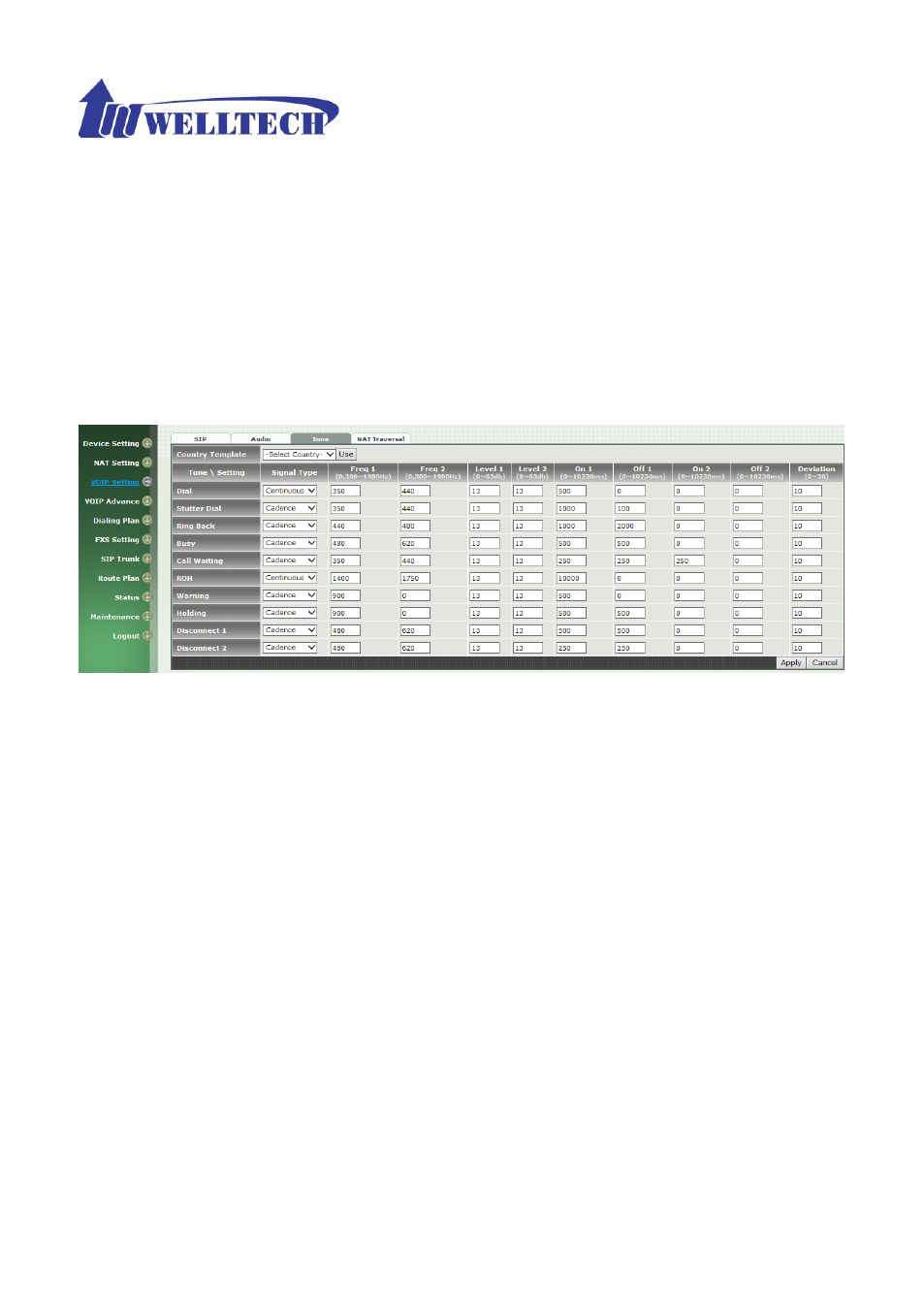

Figure 4-3 Tone setting

Please use Country Template to select the country profile which will be applied.
Click Use to load those country tone parameters to system and change if
necessary.

For those countries are not showed in the list, please select a

closed country and edit to match your country. You can send an email with the
tone definition to Welltech if you would like to put your country into the list.
