4-32 T 1 A c c e s s R o u t e r

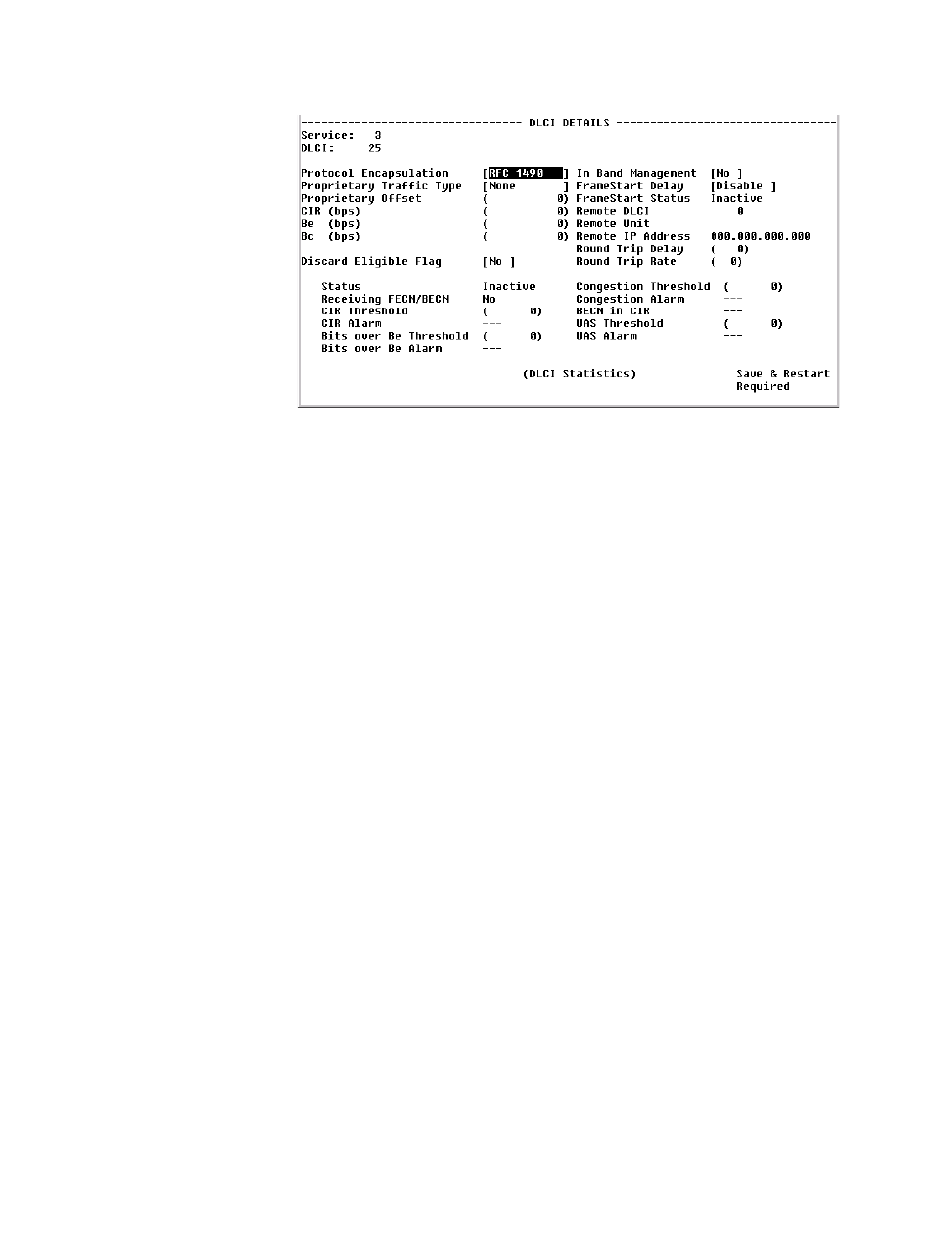

Figure 4.27 DLCI Details Screen
The unit uses the first three configuration parameters (Protocol Encapsulation,
Proprietary Traffic Type, and Proprietary Offset) to gather statistics. For in-
band management, “RFC 1490” must be the encapsulation method.
Protocol Encapsulation The type of encapsulation used by the FRAD/router connected to the unit.
Values: RFC 1490, Proprietary
Default: RFC 1490
Proprietary Traffic
Type
When Protocol Encapsulation is set for “Proprietary,” the Proprietary Traffic
Type parameter defines which protocol is encapsulated.
Values: IP, IPX, Ethertype, None
Default: None
Proprietary Offset When Protocol Encapsulation is set for “Proprietary,” the Proprietary Offset
parameter defines the number of octets after the frame relay header where the
proprietary traffic type starts.
Values: 0–64
Default: 0
CIR (bps) If a Committed Information Rate is configured here, its value (in bits per
second) will be used instead of the default CIR of the frame relay service.
Values: 0–1536000
Default: 0
Be (bps) If an Excess Burst Rate is configured here, its value (in bits per second) will
be used instead of the default excess burst of the frame relay service.
Values: 0–1536000
Default: 0
