Pump/Remote Dispenser Wiring
03/07/03 4-7
Tokheim 330B, 333B-SA, TCS, and Premier Interface, Electronic Interface
Basic System

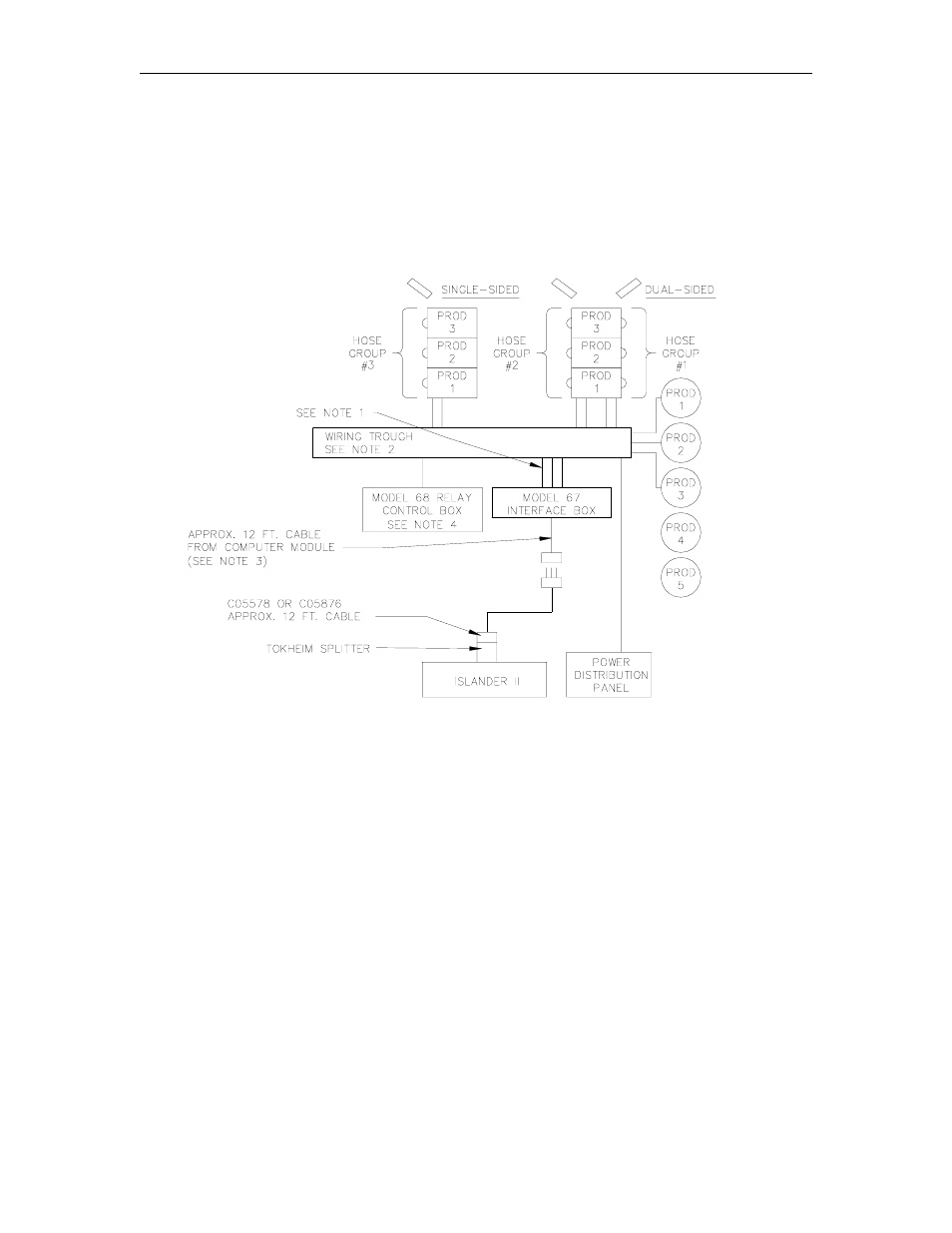

1 to 16 Hoses System consists of one Islander II, one interface box, and one C05578 cable and
Tokheim Splitter combination.
17 to 32 Hoses System consists of one Islander II, two interface boxes, and one C05876 cable
and Tokheim Splitter combination.
NOTES:
1.
All Tokheim equipment should be installed per Tokheim specifications.
2.
Wiring trough, conduits, and wire are furnished by the installer.
3. A Model 180 signal cable extension is available as an accessory from Tokheim. The
maximum distance of the combined cables should not exceed 350 feet. The maximum
distance for a 94 or 98 interface box is 250 feet.
4.
A Model 68 Box is recommended for emergency shut-off applications.
5.
Communication for pumps 1-32 may be provided through port 1 or 3 of the Islander II.
