Gasboy CFN Islander II User Manual
Page 41
CFN Series System
3-14
03/07/03
WIRING FOR A TANK MONITORING SYSTEM

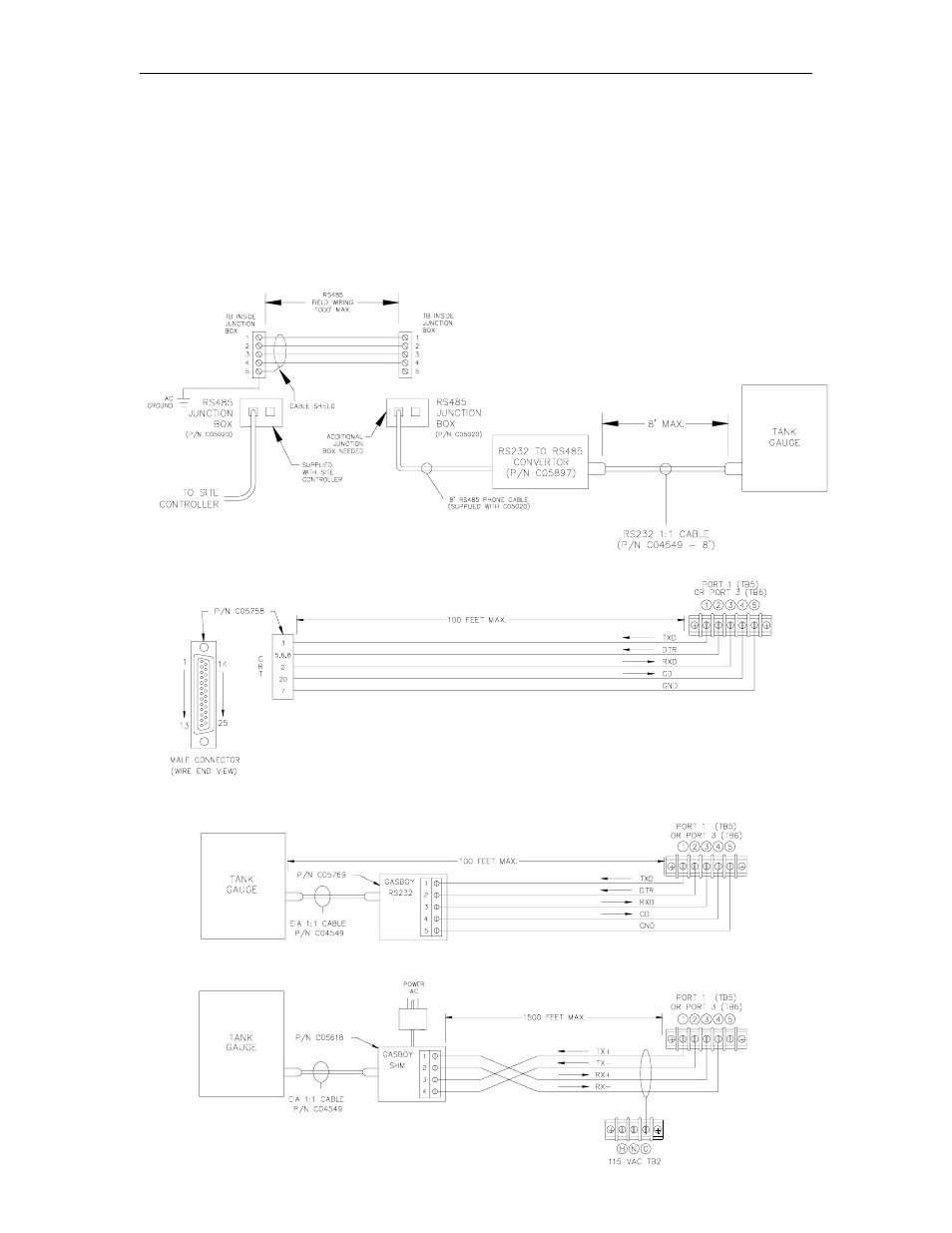

The following diagrams show the wiring schemes for connecting the Islander to a tank monitoring
system. All wiring must be installed according to the RS-485, RS-232 and RS-422 wiring
specifications discussed previously. Consult manufacturer’s documentation for installation
instructions before connecting a tank gauge to your CFN system. For EECO monitors, use a
C07476 cable in place of the C04549.
RS-485 Loop Connection
RS-232 D Connector
RS-232 GASBOY Termination Box
RS-422 GASBOY Short Haul Modem
