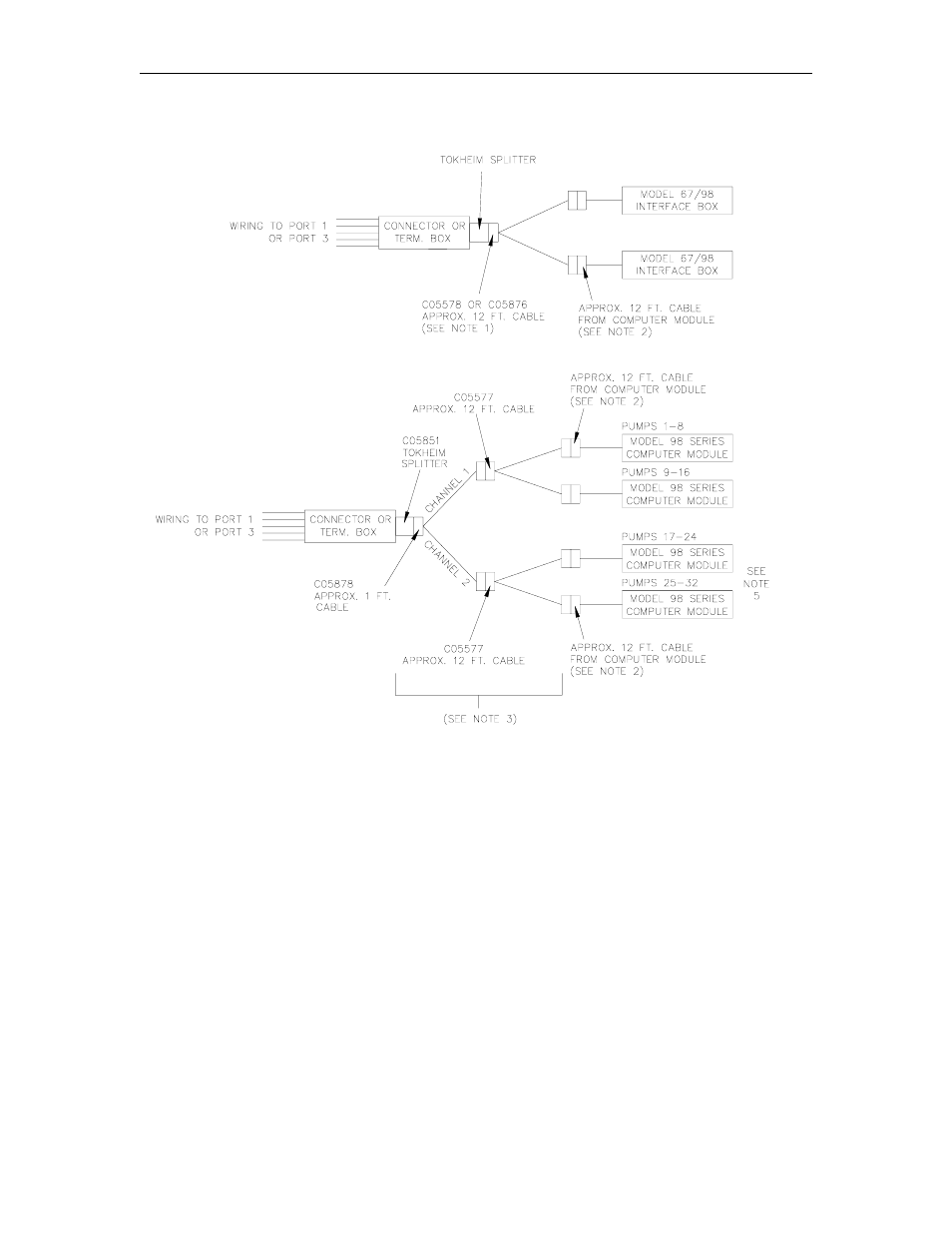

Tokheim Splitter Cabling
NOTES:
1.
Use a C05578 cable for connection to a single 67 or 98 Interface box. Use a C05876 cable
for connection to two 67 or 98 Interface boxes. Both cables include the Tokheim Splitter.
2. A Model 180 signal cable extension is available as an accessory from Tokheim. The
maximum distance of the combined cables and field wiring should not exceed 350 feet. The
maximum distance for a 98 Interface box is 250 feet.
3.
Use part number C06694 for connection to three or more 98 Interface boxes. C06694 is the
combination of one C05878 cable, two C05577 cables and a Tokheim Splitter.
4.
Communication for pumps 1-32 may be provided through port1 or 3 of the Islander II.
5.
The second two 98 boxes must be connected to channel 2 of the splitter. Address the third
98 box (first 98 box on channel 2) as pumps 1 to 8; address the fourth 98 box (second 98 box
on channel 2) as pumps 9 to 16.
