Gasboy CFN Islander II User Manual
Page 46
Pump/Remote Dispenser Wiring
03/07/03
4-3
WIRING ELECTRONIC OR MECHANICAL PUMPS
The remainder of this section shows wiring schematics for electronic and mechanical pumps. All
electronic and mechanical pumps must be installed according to the manufacturer’s instructions.
Depending on the type of electronic pump to which you are connecting, you may require additional
information. Refer to the Pump Interface Manual, C09146 or contact Gasboy Technical Service
for information on various pump interfaces.
Connection of Tokheim Pumps

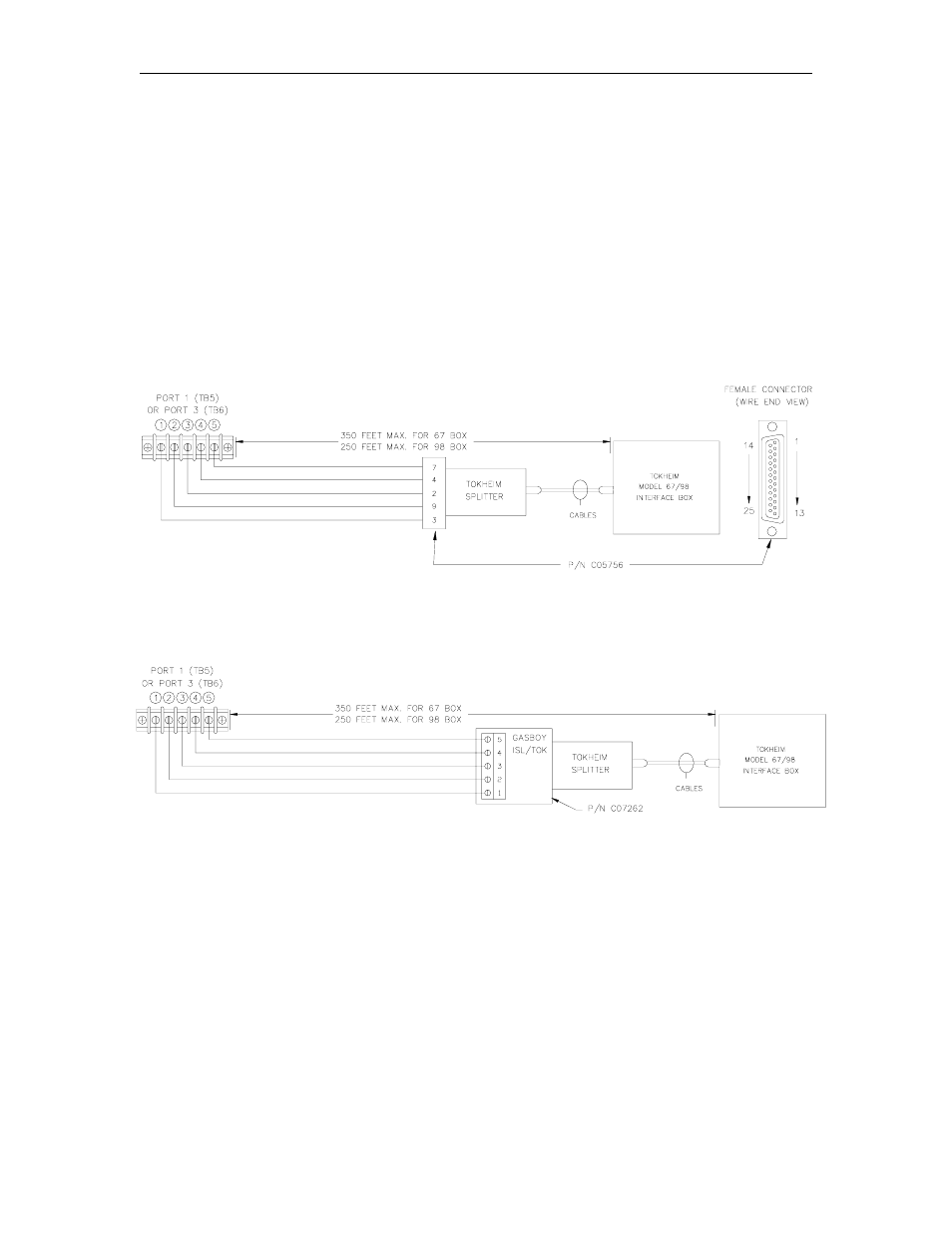

The following diagrams show the interconnection for the Islander II and the Tokheim interface.
D Connector
GASBOY ISL/TOK Termination Box
