Gasboy CFN Islander II - Manual (Page 48)

Pump/Remote Dispenser Wiring
03/07/03 4-5

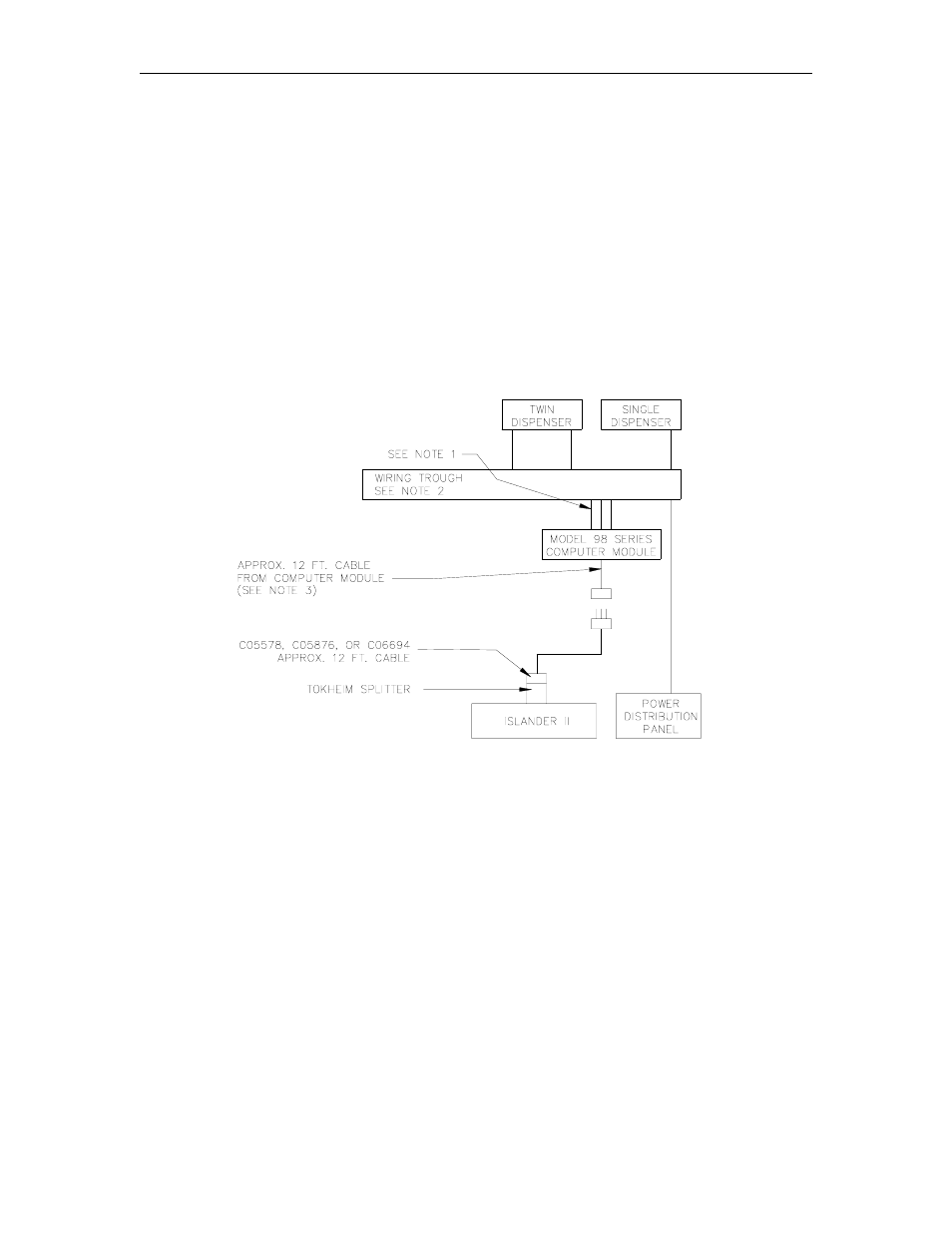

Tokheim 162 Interface, Electronic Interface
Basic System
1 to 8 Hoses
System consists of one Islander II, one computer module, and one C05578 cable
and Tokheim Splitter combination.
9 to 16 Hoses System consists of one Islander II, two computer modules, and one C05876 cable
and Tokheim Splitter combination.
17 to 24 Hoses System consists of one Islander II, three computer modules, and one C06694
cable and Tokheim Splitter combination.
25 to 32 Hoses System consists of one Islander II, four computer modules, and one C06694
cable and Tokheim Splitter combination.
NOTES:
1.
All Tokheim equipment should be installed per Tokheim specifications.
2.
Wiring trough, conduits, and wire are furnished by the installer.
3. A Model 180 signal cable extension is available as an accessory from Tokheim. The
maximum distance of the combined cables should not exceed 350 feet. The maximum
distance for a 94 or 98 interface box is 250 feet.
4.
Communication for pumps 1-32 may be provided through port 1 or 3 of the Islander II.
5.
The second two 98 boxes must be connected to channel 2 of the splitter. Address the third
98 box (first 98 box on channel 2) as pumps 1 to 8; address the fourth 98 box (second 98 box
on channel 2) as pumps 9 to 16.
