Gasboy CFN Islander II User Manual
Page 33
CFN Series System
3-6
03/07/03

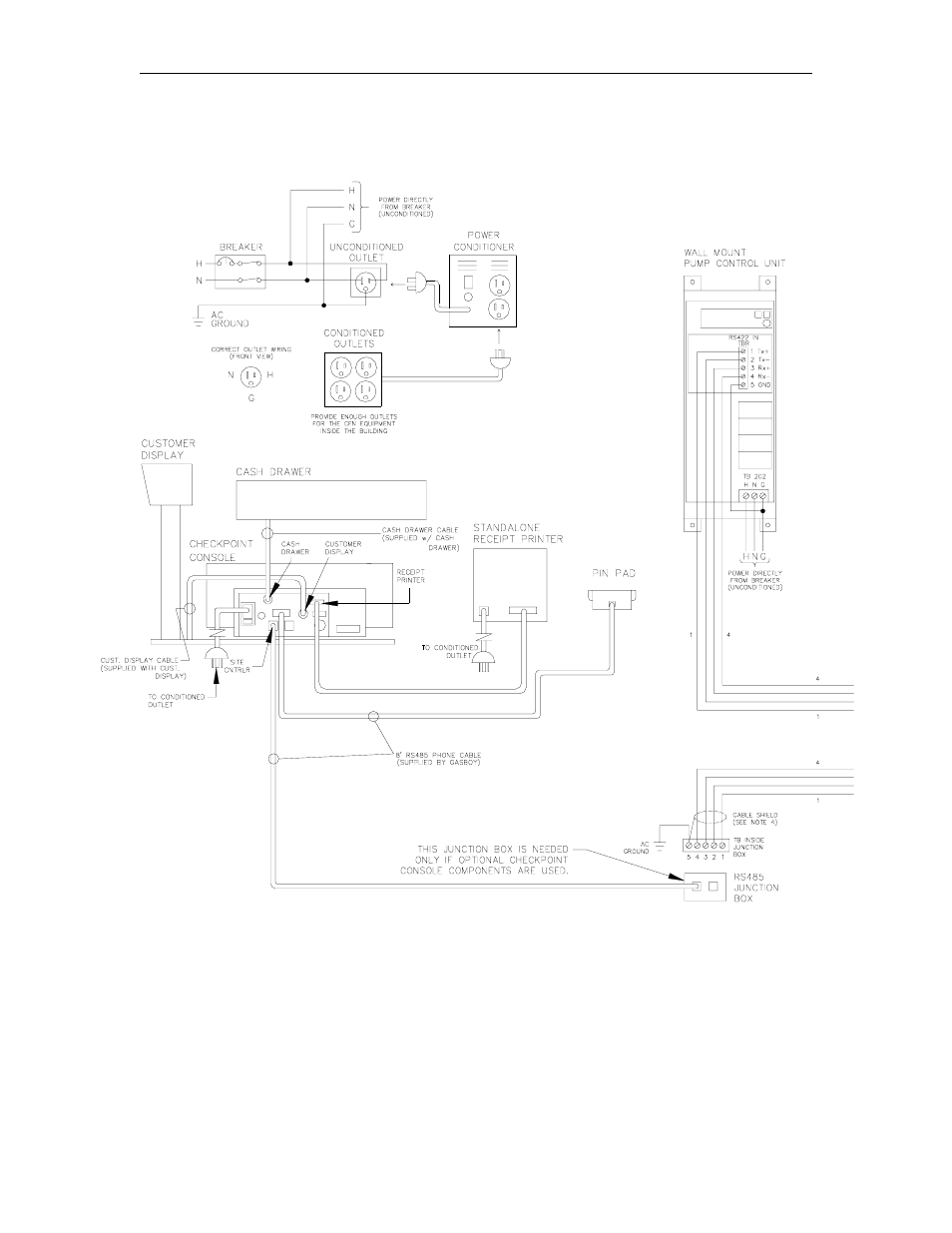

SYSTEM COMPONENTS WIRING DIAGRAM
NOTES:
1. All wiring is to be installed and used in accordance with all building/fire codes, all Federal,
State, and Local codes, National Electrical Code (NFPA 70), NFPA 30, and Automotive and
Marine Service Station Code (NFPA 30A) codes and regulations. Canadian users must also
comply with the Canadian Electrical Code. Wiring must also conform to the wiring diagram
supplied with the pump/remote dispenser.
2. All peripheral equipment connected to the RS-232 ports must be UL-listed, have an
Electronics Industry Association (EIA) standard RS-232 communications protocol and not be
installed over a hazardous location.
