Gasboy CFN Islander II User Manual
Page 34
System Components Wiring
03/07/03
3-7
3.

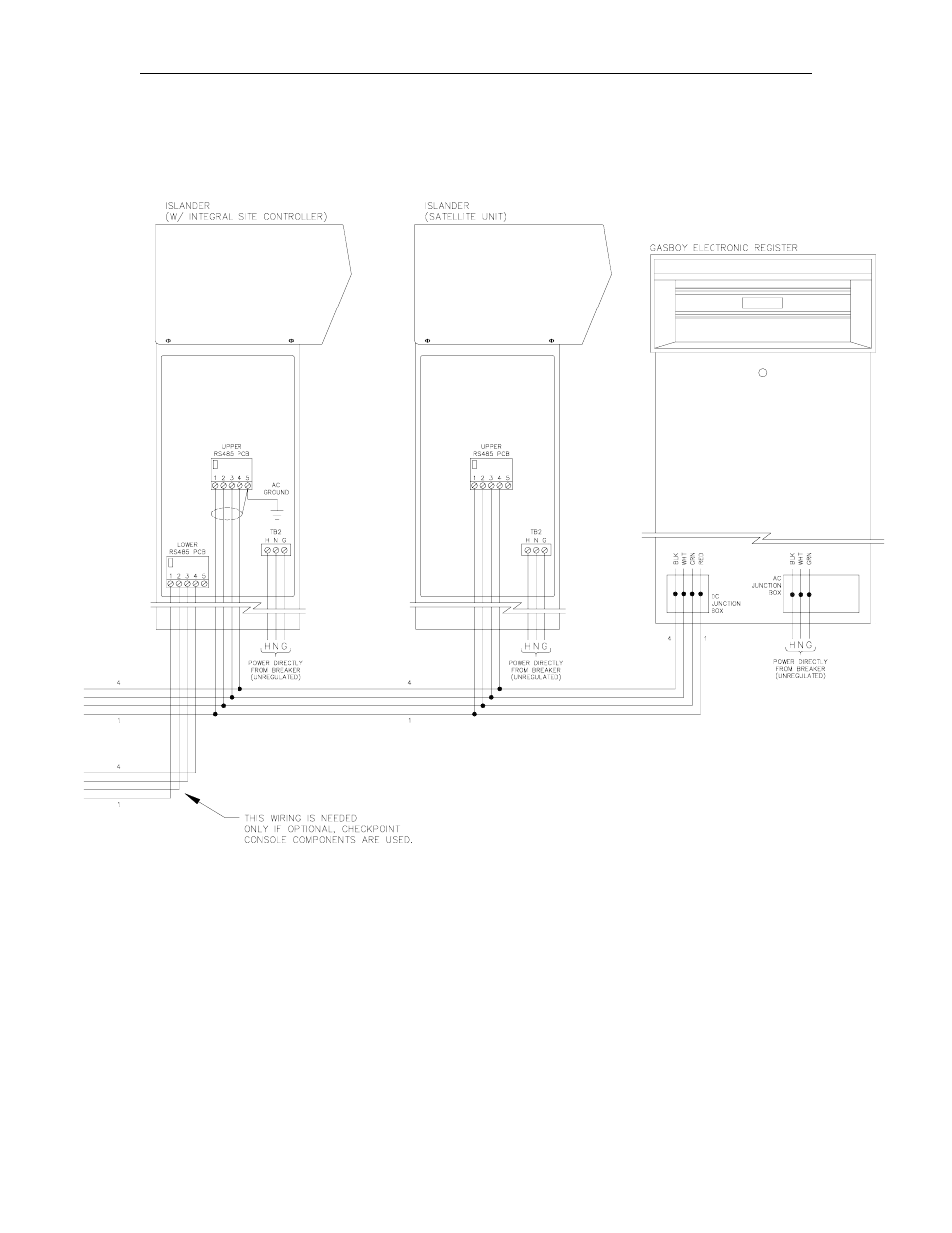

The above wiring diagram illustrates a CFN System with every component to indicate how
they are interconnected. Components that are not a part of your system should be ignored.
4.
When using shielded cable for the RS-485 communication wiring, ground the shield to the AC
ground used for the system components (on one end only).
5. CFN island card readers (ICR’s) are interchangeable with satellite Islanders in your
configuration.
6.
Consult the applicable section of this manual for specific system installation requirements.
