Gasboy 9800Q Series User Manual
Page 47
MDE-4340A Series 9800Q Pumps and Dispensers Installation/Operation Manual · January 2006
Page 5-13
Wiring

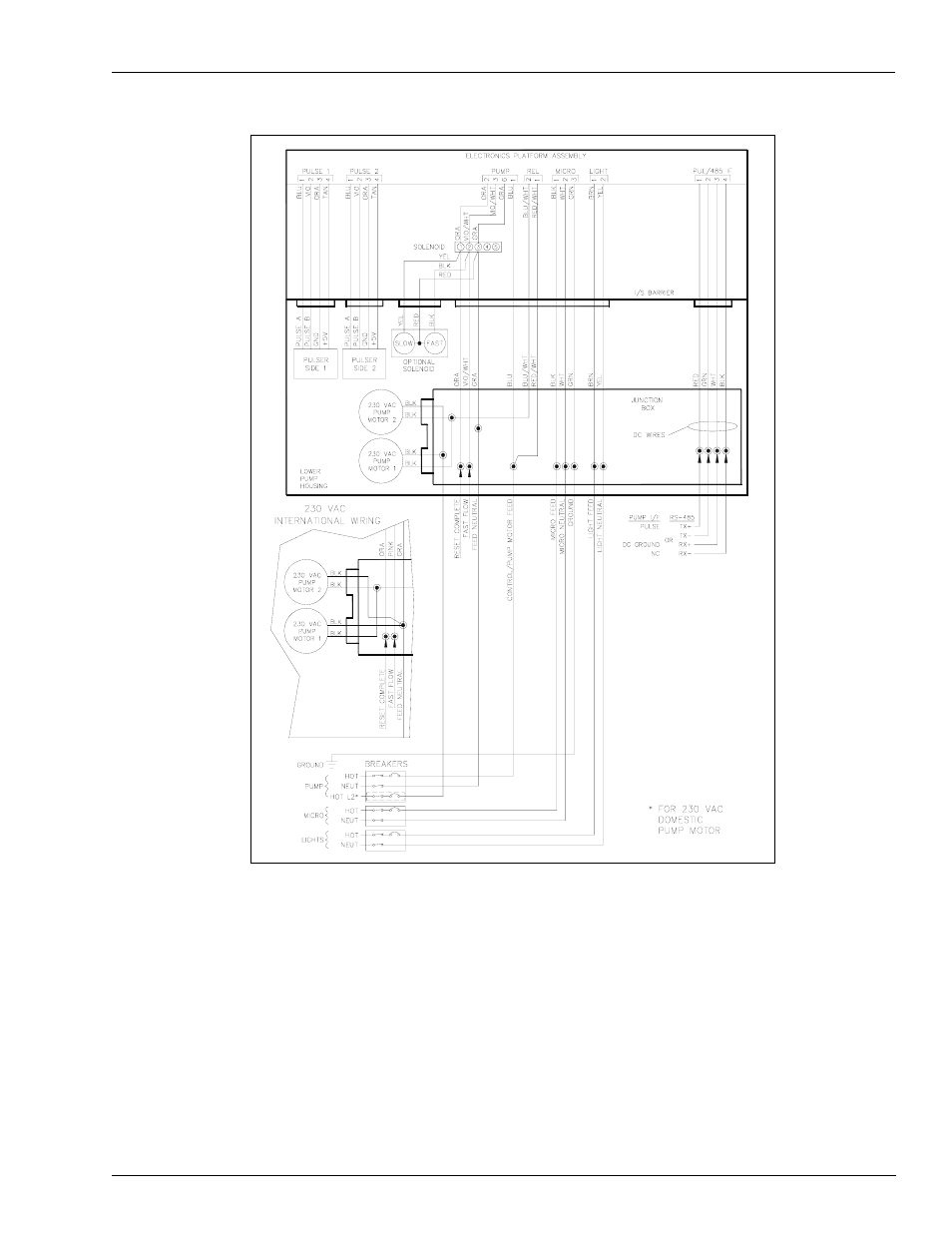

024254 Wiring Diagram Models 9852QX, 9853QX, 9840QX
Notes:
1
All wiring and conduit runs must conform with all building/fire codes, all Federal, State, and
Local codes, National Electrical Code, (NFPA 70), NFPA 30, and Automotive and Marine
Service Station Code (NFPA 30A) codes and regulations. Canadian users must also comply
with the Canadian Electrical Code.
2
The input line CONTROL/SUBM FEED is comprised of two wires which are tied together at
the factory.
