Wiring
Page 5-6 MDE-4340A Series 9800Q Pumps and Dispensers Installation/Operation Manual · January 2006
Gasboy can supply Belden ® 1063A (P/N C09655) which is a UL-listed, 4-conductor cable that
meets the requirements listed above.
Note: Belden 1063A is UL-listed but not CSA listed. Cable with a voltage rating of less than
600V must be installed in a conduit separate from all AC wires.
Dual Pulse Output Wiring

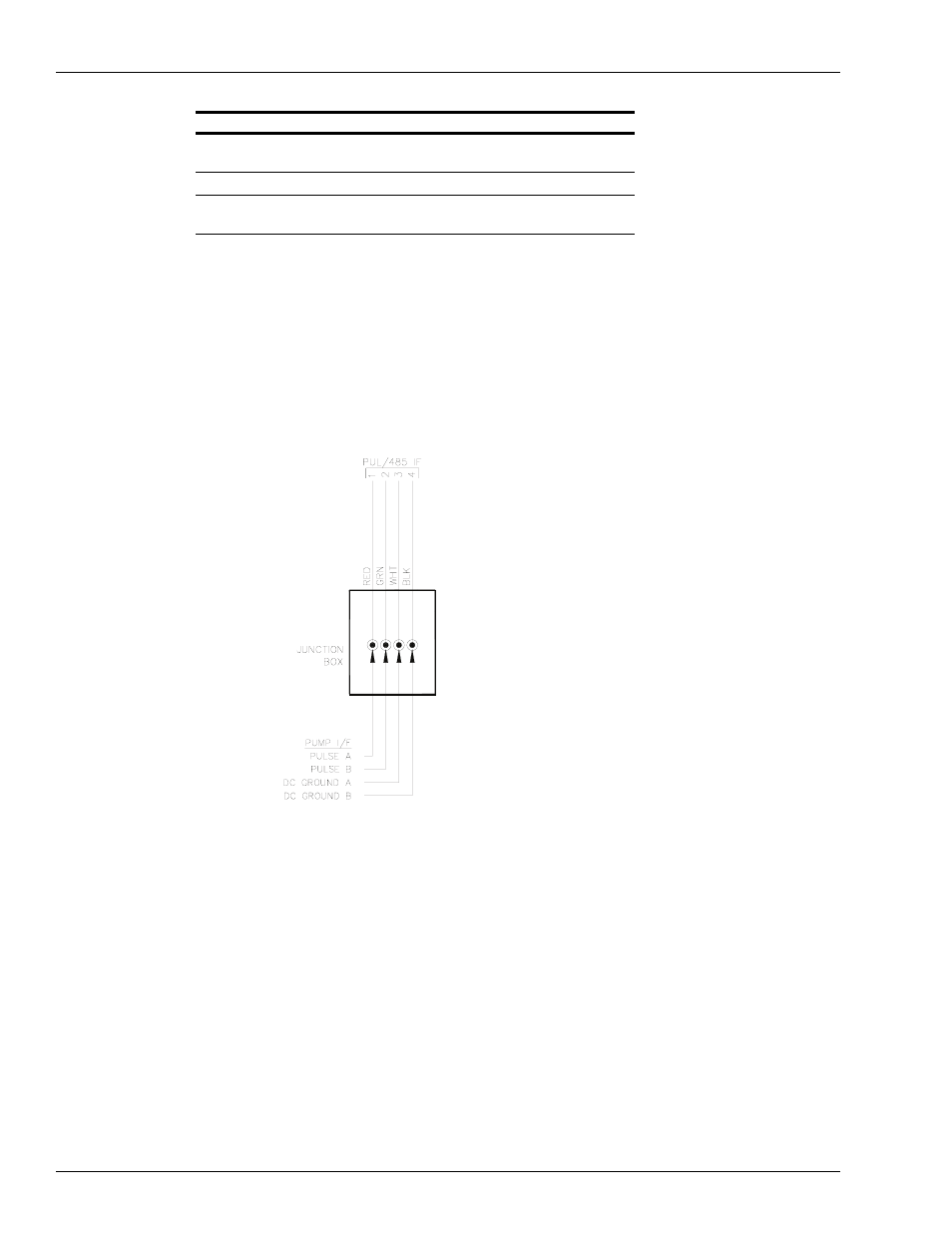

The wiring diagram shown at right shows the changes in wiring when using a pump equipped
with the dual pulse output option. The dual pulse output option provides two isolated pulse
outputs from a single pulser. It is available only on 9800Q single dispensers.
Drain Wire Stranded, tinned copper, 20 AWG or larger/or
braided shield
Voltage Rating Maximum operating voltage of 600V
Environmental Gas- and oil-resistant; suitable for wet or dry
locations
Conductor 18 AWG stranded wire. 2 twisted-pairs
