FCD LMAIM5001-00 DDC-100 Master Station II Installation and Operation Manual 61
Flow Control Division
Limitorque Actuation Systems
13
Control MOV
MOVs can be controlled from these screens. This includes opening, stopping, closing, and opening to a set position
(such as 50%).

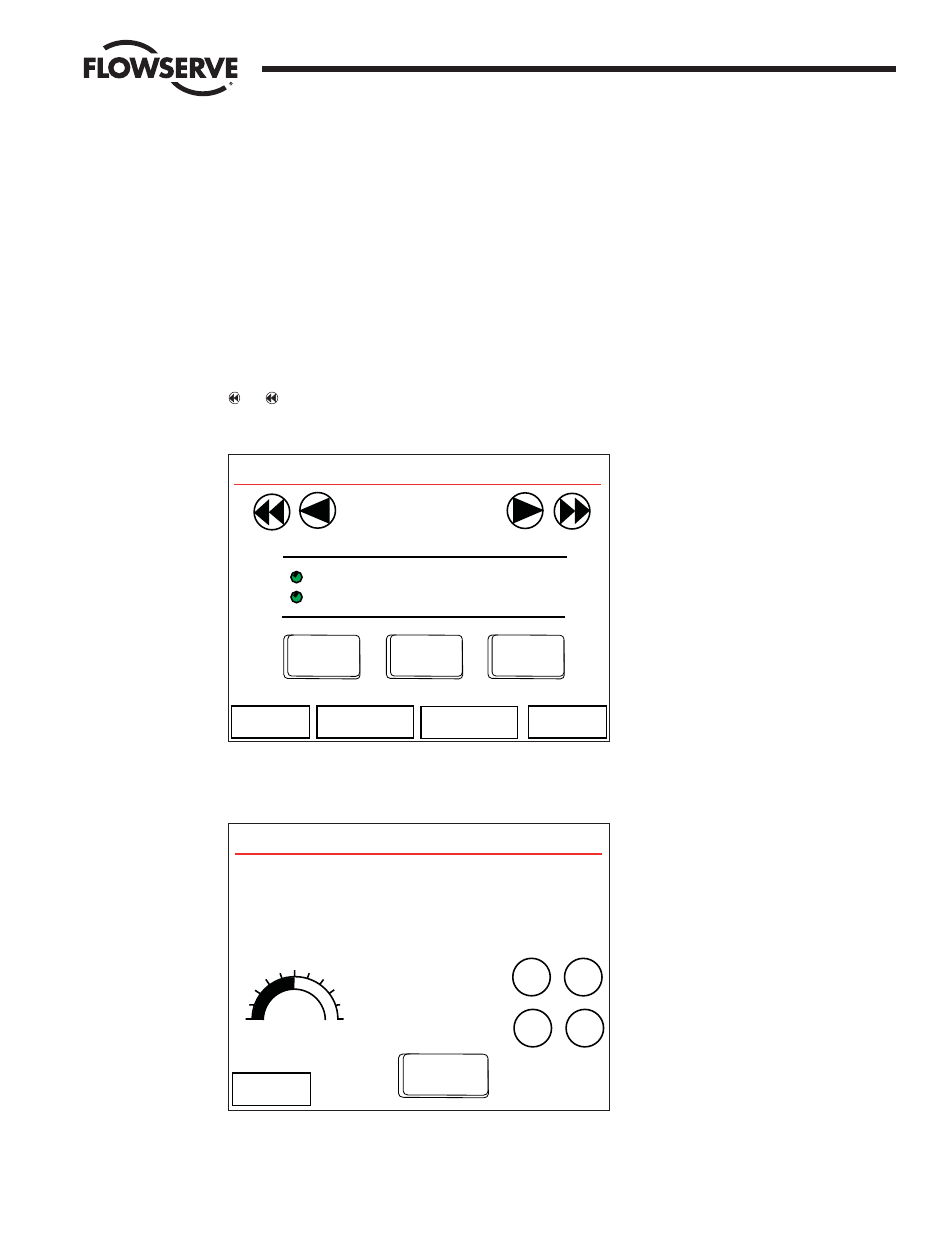

Control MOV Page one (Figure 13-1) allows the user to open, stop, and close a MOV. Navigation between MOVs is
accomplished via the arrows at the top of the screen. The MOV Address and Tag indicate the MOV being controlled. The
and arrow buttons move the address in increments of 10.
Figure 13-1: Control MOV Page 1 screen
Control MOV page two (Figure 13-2) allows the user to set a MOV to an arbitrary position.
Figure 13-2: Control MOV Page 2 screen
Control MOV
MOV ID: 1
Tag M O V F U 0 0 1
SET
POSITION
Percent Open Set Position
50%
Local Mode
50%
SHUT OPEN
+1 +10
-1 -10
<< Back
Control MOV
MOV Address 1
Tag M O V F U 0 0 1
Channel A
Channel B Closed
OPEN
LOCAL MODE
STOP CLOSE
<< Back More >>
AR Relays AS Relays
