Flowserve DDC-100 Master Station II - Manual (Page 10)

10 DDC-100 Master Station II Installation and Operation Manual FCD LMAIM5001-00
Flow Control Division
Limitorque Actuation Systems

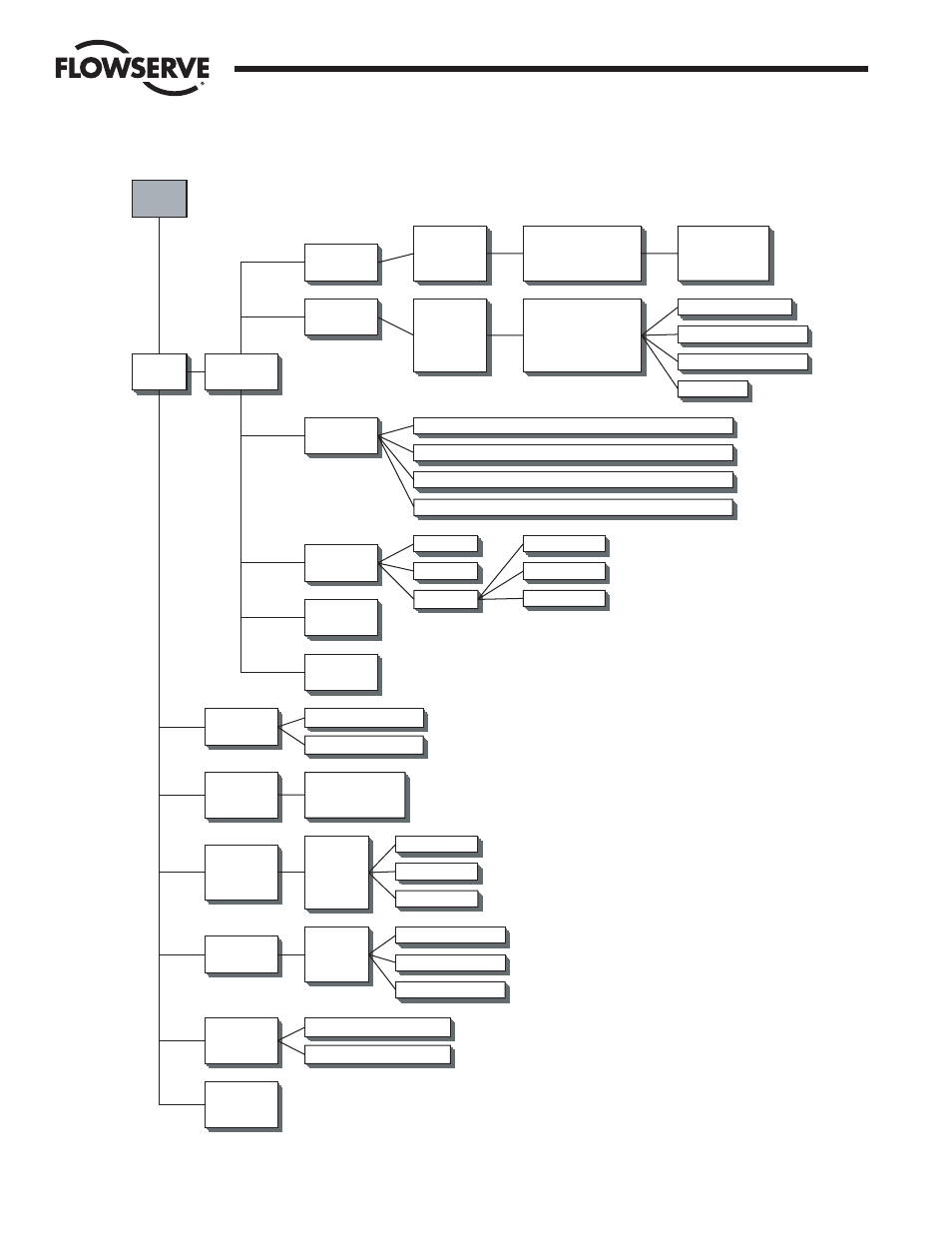

Figure 2-1: Screen flowchart
Intro
Screen
Main
Menu
MOV
Network
DCS Port
Ethernet
Port
General
Settings
Change Tags
Save to
Flash
Baud Rate
Retries
Poll Mode Timeout
Prop Delay
RTS On Delay
Active MOVs 1-
250
Baud Rate
Stop Bits
Parity
Electrical DCS Port Address
RTS On Delay
RTS Off Delay
HMI Control
Modbus FC 03 - View
Modbus FC 05/15 - View
Modbus FC 06/16 - View
HMI Control
Configure
IP Address - Octet 1 - Octet 2 - Octet 3 - Octet 4
Mask - Octet 1 - Octet 2 - Octet 3 - Octet 4
Gateway - Octet 1 - Octet 2 - Octet 3 - Octet 4
Standby IP Address - Octet 1 - Octet 2 - Octet 3 - Octet 4
Clock
Version
Password
View
Supervisor
Administrator
Hot Standby
Change Status
Hot Backup Startup
Network
Status
Communication
Status
MOVs 1-250
View MOV
Status MOV Stats
Address 1-
250
Position
Faults
Alarms
Control MOV
Control
MOVs
1-250
Open/Stop/Close
0-100% Open
Aux Contacts
Emergency
Shutdown
Start Network ESD
Terminate Network ESD
Exit
