Connections
4.1 Master Station Rear Panel Connections

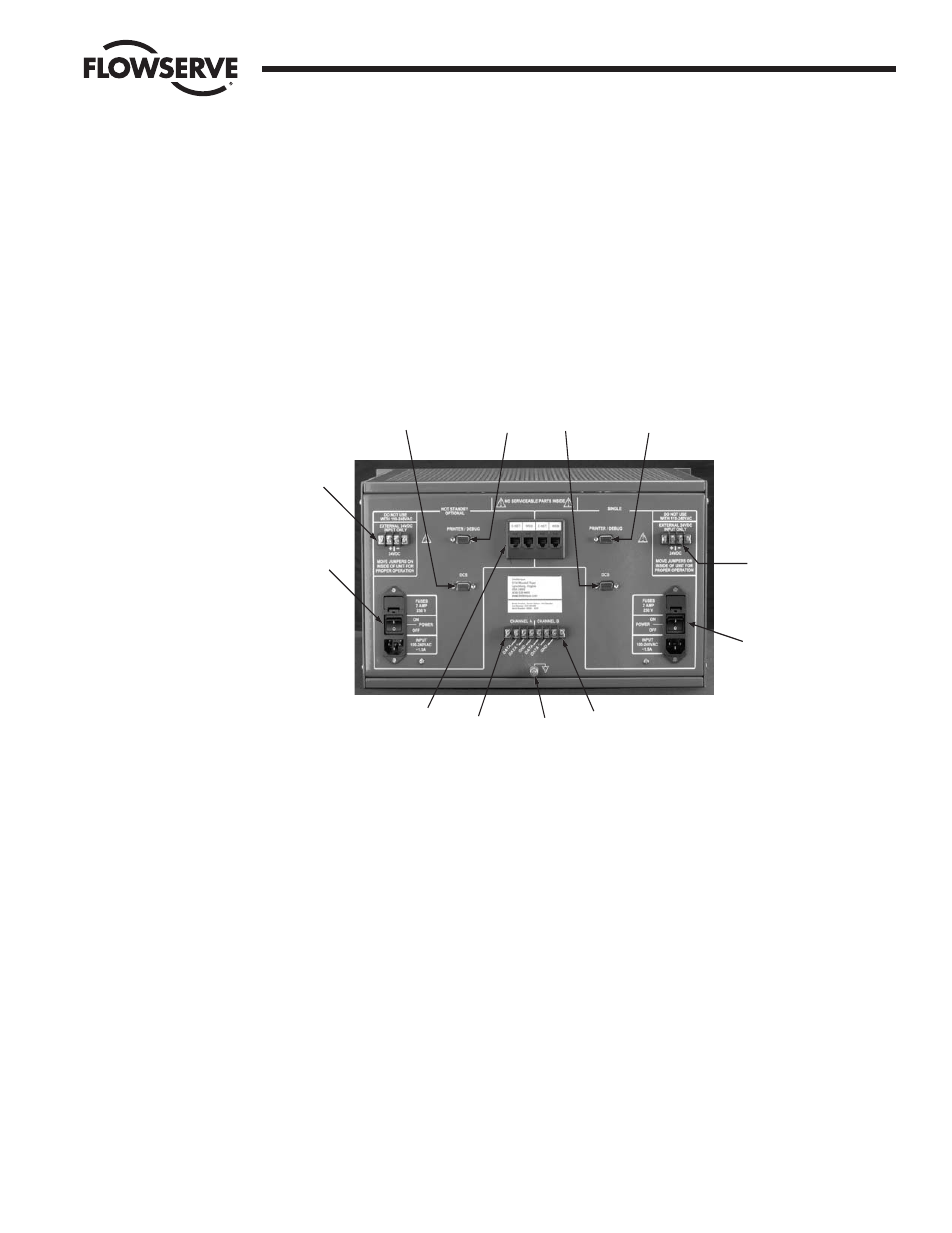

Figure 4-1: Master Station connections
1. Ethernet Ports, RJ-45 connectors. One port is designated for MNET (Modbus Ethernet TCP/IP). The
other port is for the webserver. Either port may be used for either function as they are connected to
the same CPU.
2. Printer / Debug Port. DB-9 Female connector. RS-232 port. Used for Master Station diagnostics.
