Step Test Compare

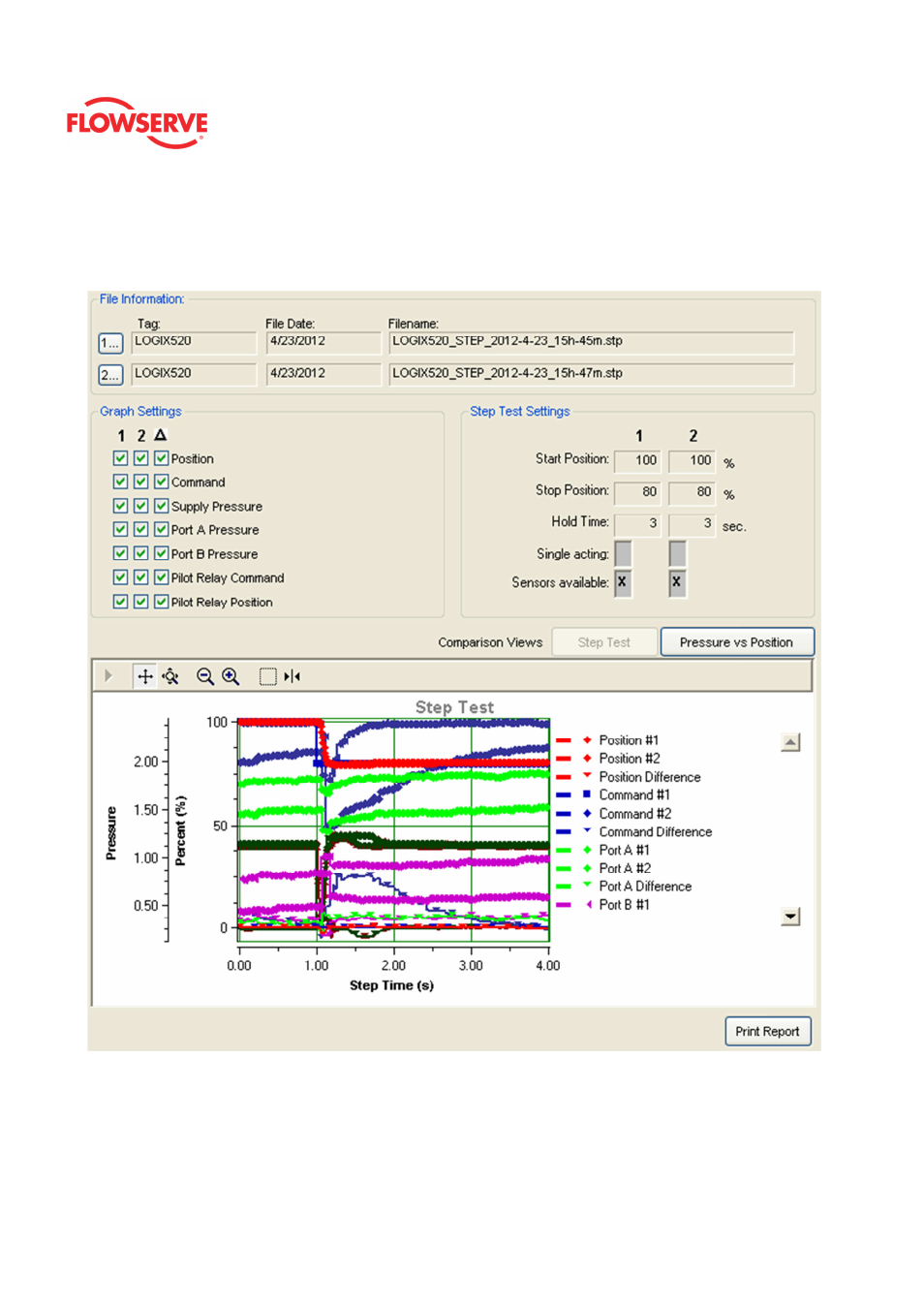

The Step Test Comparison page displays two previously saved step test files for a side-by-
side comparison. The comparison includes file information, step test settings, and graphed
data. Difference data is also displayed on the graphs.

File Information
The File Information area allows you to load two files. The files are loaded by selecting the
"1..." and "2..." buttons. This area then shows the tag ID, the date the file was saved, and
the file name for each file.
