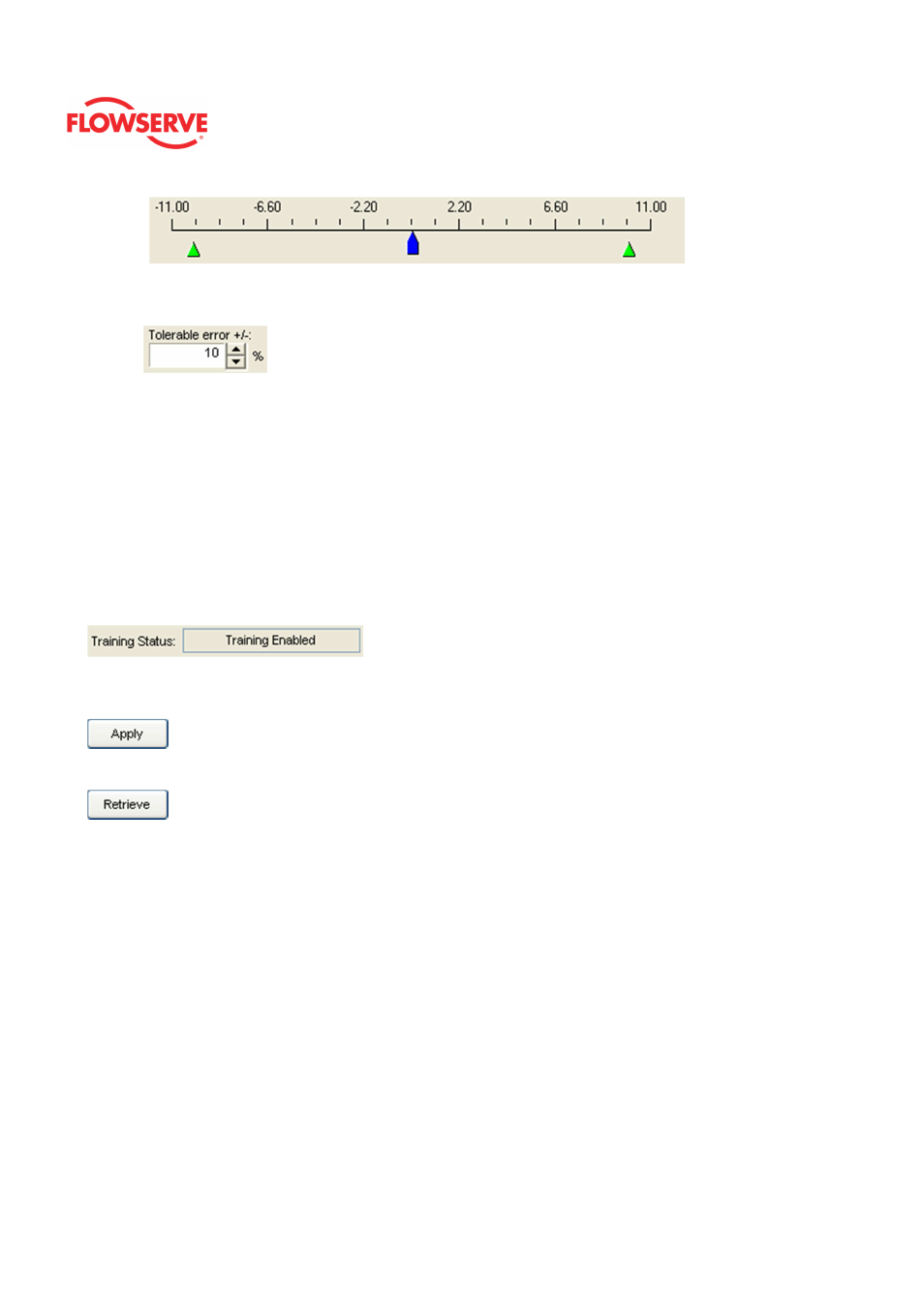

2. Use the input boxes. Numbers can be directly typed. Clicking on the up and
down arrows will also change the value.
NOTE: The apply button must be selected for the changes to take affect.
Training Status
Training Status is present on this page because one or more fields or graphs shows data
that was gathered during the training process. The field shows one of the following states:
•
Training Enabled - which indicates system data is being recorded. Training should
run during normal system behavior.
•
Training Disabled - which indicates NO system data is being recorded.
•
Training Complete which indicates that the time period for training has expired and
the data is stored in the positioner.
NOTE: The Training function requires the Pro positioner upgrade level (522MD+).
Action Buttons
The Apply button will save changes to the connected device.
The Retrieve button will retrieve the latest information from the device.
Warnings and Alarms
Position Alerts
•
Definition: The position has reached or is exceeding a user defined
LOW/HIGH position indicator. This is similar to a limit switch indicator.
•
Possible Solutions: Set the limit to a lower or higher value if more
travel is needed, or adjust the command signal back in the specified
range.
