Users Manual SS Finisher
Operation •••• 14
Loading the Machine
Loading the Tape
To load the SS Finisher, start by adjusting the Fabric Guides to the correct
width, allow the fabric to slide between them without buckling. Be sure to adjust
the guides evenly on both sides, as the SS Finisher must be run with the fabric
centered in the machine. Adjust the Fabric Guide Bar Adjust so that it centers
the Guide Bar over the fabric.

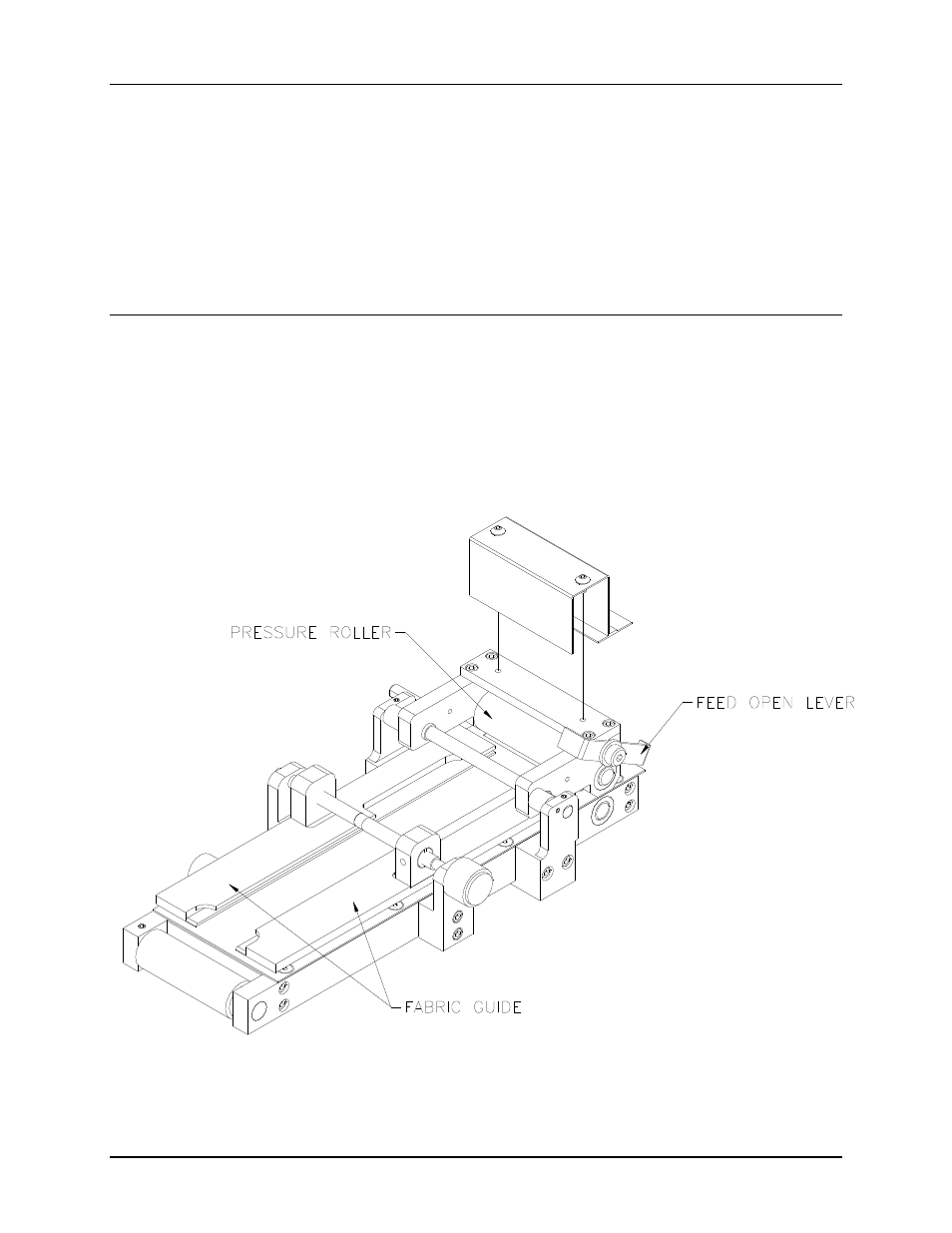

Pressure Roller
Pressure Roller Setting
The Feed Pressure roller is Spring loaded, so there is always pressure to the
drive roller. The feed roller can be opened by moving the Feed Open lever to
the vertical position, and then lowering it when ready to operate the machine.
(Shown with the Fabric Stripper Blade removed)
