5.1 C
ARE AND CLEANING
ALS
350
450
Capacitive sensor at the dispenser head
Only if the labeller is equipped with a capacitive sensor
[90A] instead of the proper photoelectric sensor:
£ Remove the knurled thumb screw [90B].
£ Remove 2 screws on the underside [91A].
£ Remove the upper part of the housing [92A].
£ Clean the sensor surfaces [92 arrows] with soft,
lint-free rags.
£ Reassemble the sensor.
£ Test the sensor adjustment.

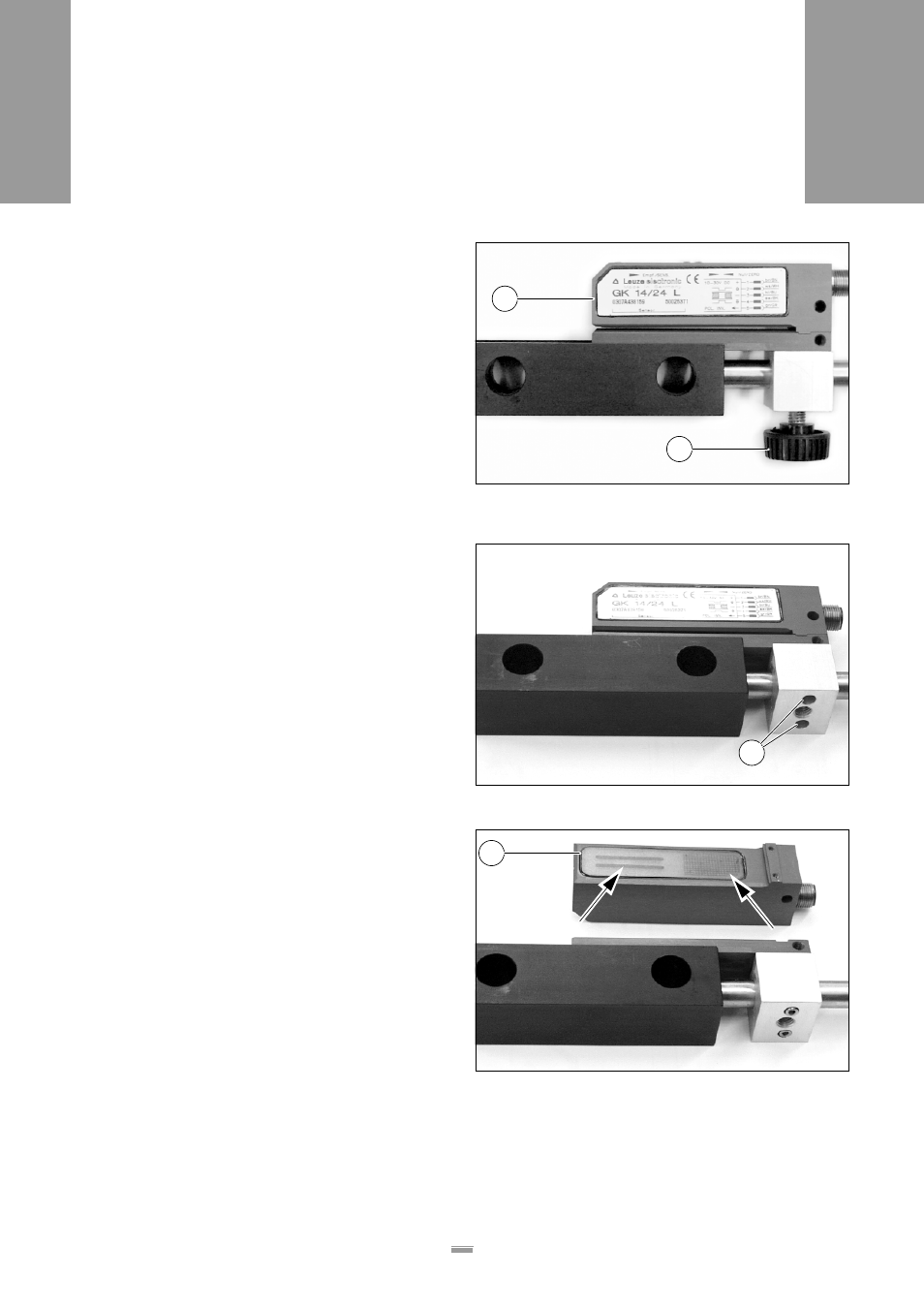

[90] A Capacitive sensor
B Knurled thumb screw
[91] A Fastening screws for the housing on the underside
[92] A Upper part of the housing with sensor surfaces (arrows)
