69
4 O
PERATION
4.4 S
ETTINGS IN THE EXTENDED MENU
ALS
350
450
4.4.5 Speed ratio (VERT)
– Relationship between the dispensing speed and the
conveyor belt speed
Example [74]: Circumferential labelling of a round prod-
uct. The product simultaneously makes a linear move-
ment and a rotational movement.
In the extended menu:
£ Call up the VERT function.
– The preset is 100 (corresponds to a ratio of 1:1)
£ Set the desired value.
– Possible settings: 80 to 1000 (corresponds to 0.8:1
to 10:1)
£ Confirm the value using the ENTER key and exit
the VERT function.
Example [74]:
– The rotational speed [A] is twice as great as the lin-
ear speed of the product [B].
– The dispensing speed must roughly correspond to
the rotational speed.
£ Set the setting for VERT to 200 (ratio 2:1).
£ If necessary, use the fine adjustment.

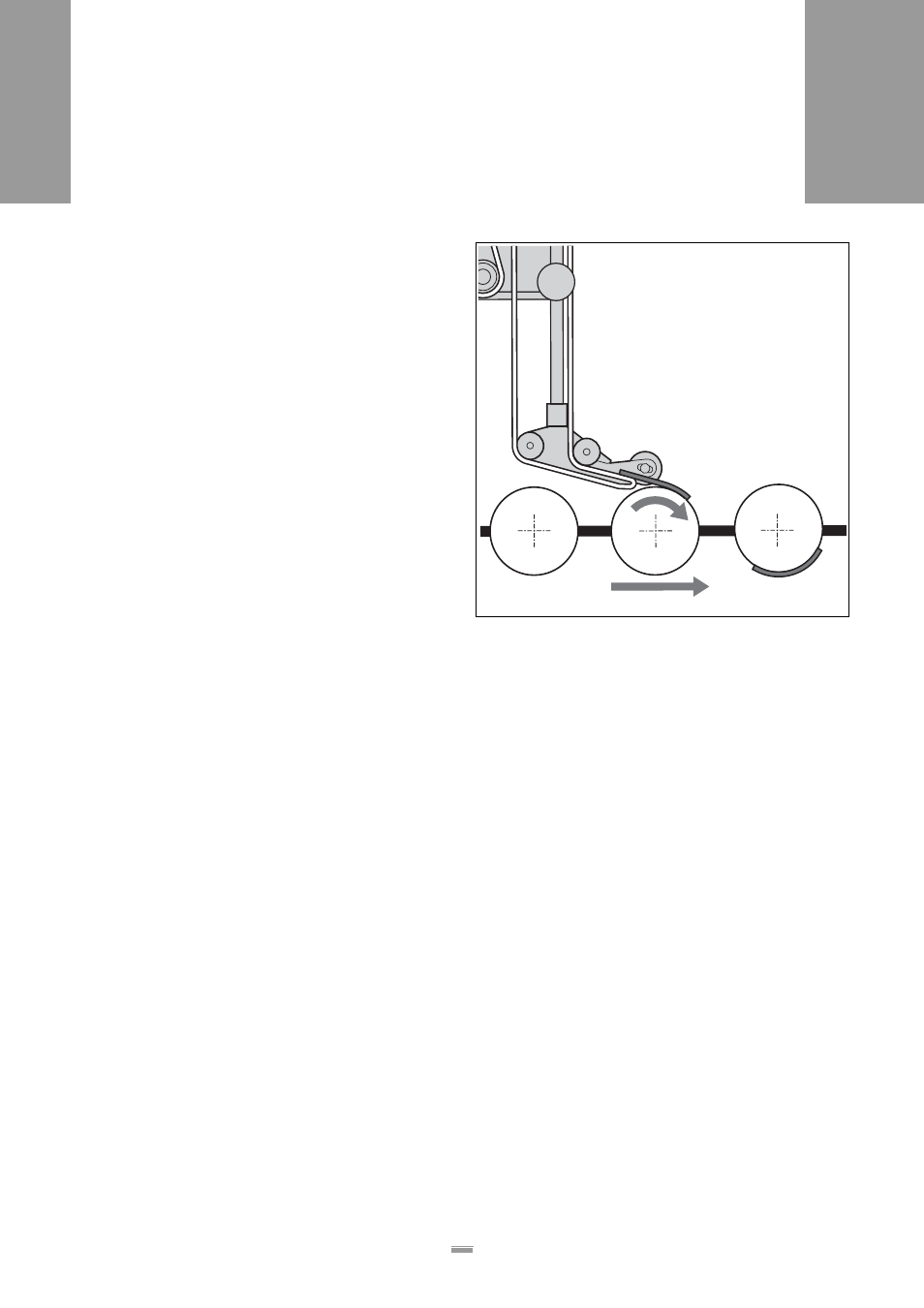

[74] Example: The product simultaneously moves from left to right
and rotates about its axis
A Rotational speed
B Linear speed (conveyor belt speed)
A
B
