Calibration procedure

• First, you can read the screen of the voltage calibration mode of CH2,

XBT32-3FTP shall output one low voltage. Please read the actual reading from
your electric meter and input the value to XBT32-3FTP. Then press the rotary to
confirm the data input. Second, XBT32-3FTP shall output one high voltage.
Please check the reading of electric meter and input the actual value.Once the
data input is confirmed, the voltage calibration procedure is finished. Then go to
the next step to calibrate current mode of CH2.

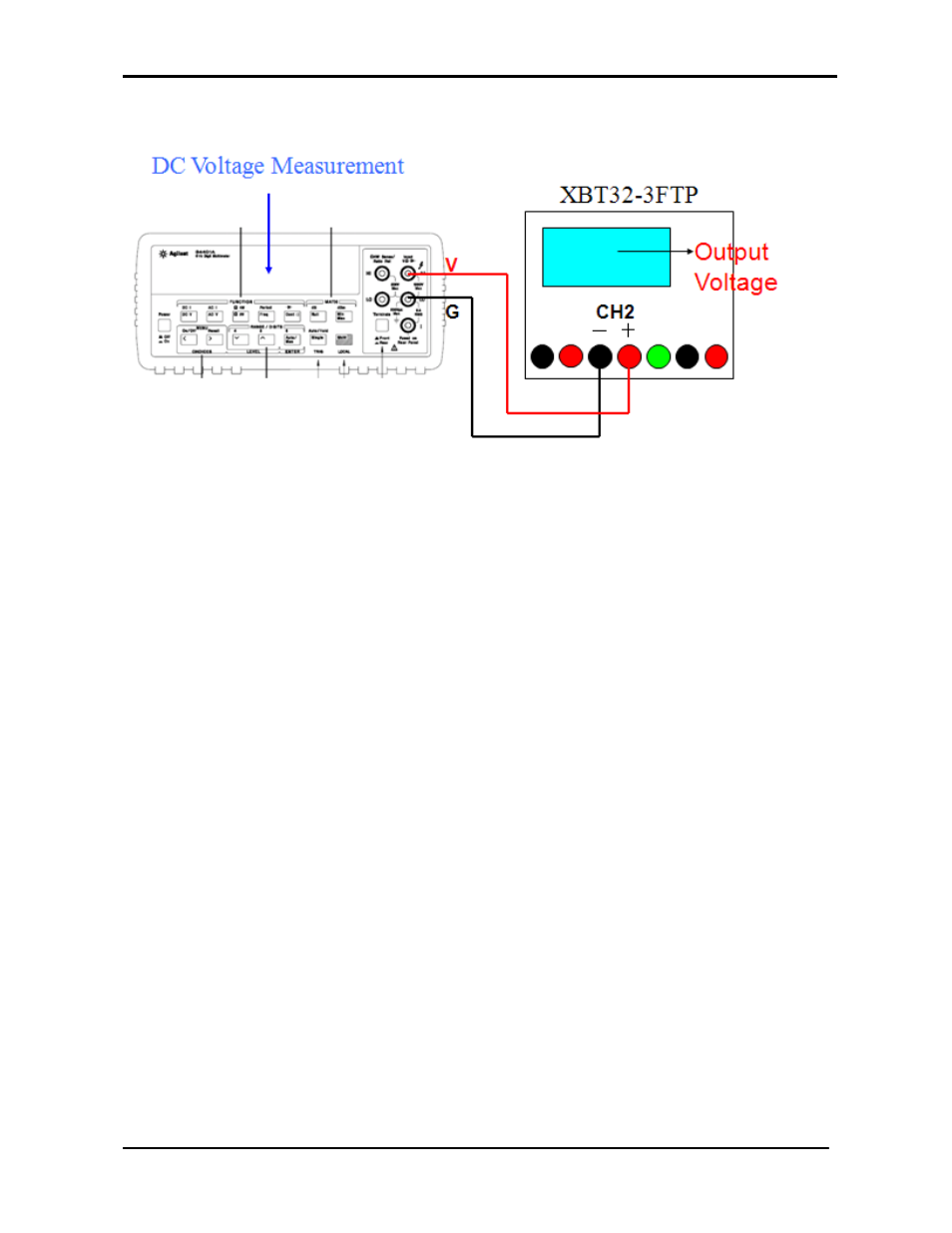

Wiring to calibrate CH2 (current mode)

Please remember to switch your electric meter to Current Measurement mode.
