Step 6:
Once the image has been loaded and the nodes moved, select
the page configurations in nonvolatile memory.
Note:

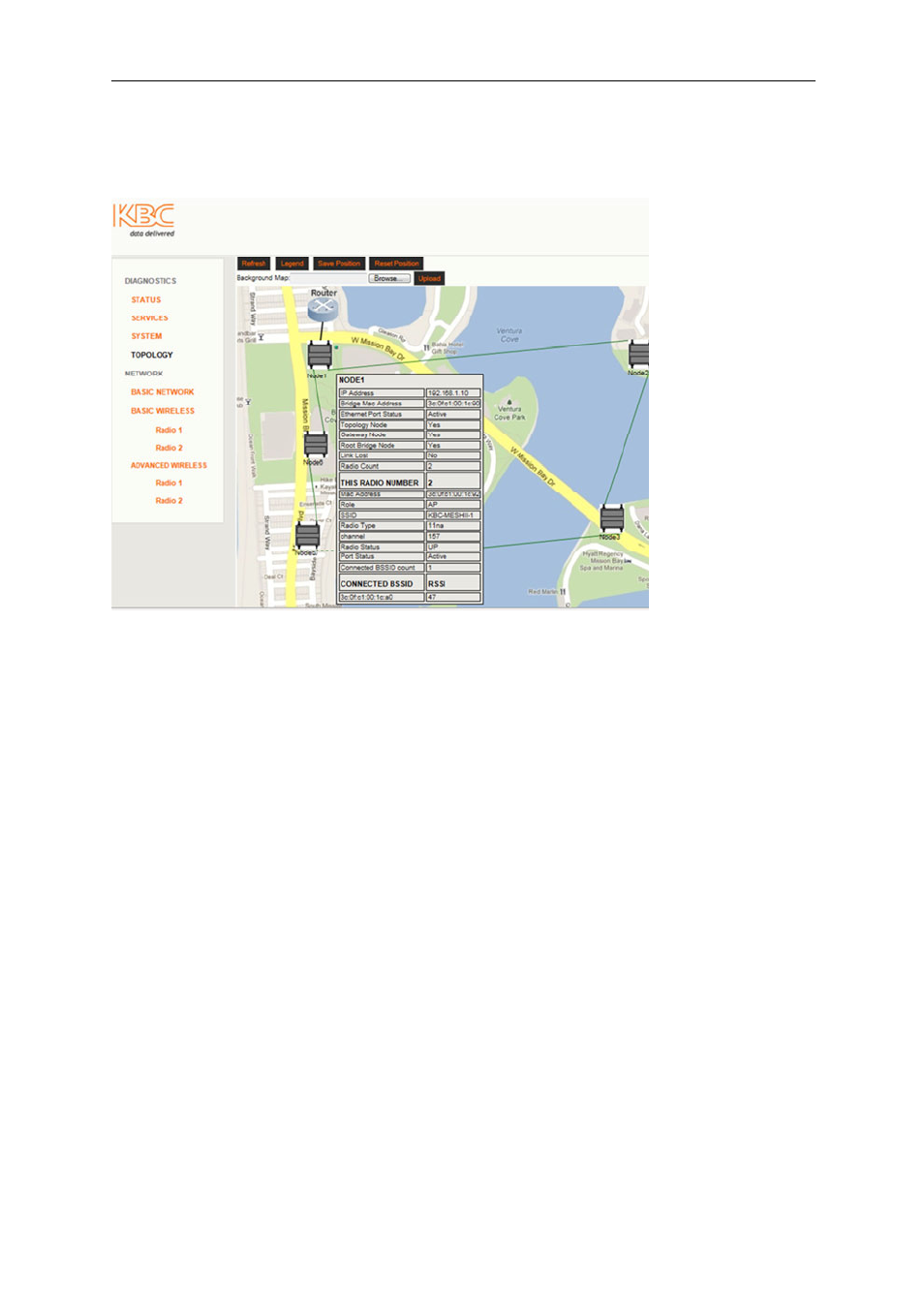

The mouse hover over feature will display details for the radio as shown below:
Note:
Each node has 2 radios and details for each radio are displayed separately.
Hovering the pointer over the top half of the node will render details for Radio1 and the
bottom half will display details for Radio2.
3.2.5 NETWORK
3.2.5.1
Basic Network
The ‘Basic Network’ menu option allows the LAN IP, subnet mask and Gateway IP to be
set as either static IPs on the network or configured automatically by a DHCP server.
