MODE: this shows whether the unit is either set to a static IP address or DHCP in the
‘Basic Network’ menu.
IP ADDRESS: this is the IP address of the unit. The address show above is the default
IP address for the unit.
GATEWAY IP ADDRESS: this is the Gateway IP address shown under the Basic
Network setting menu. If access is required to the Mesh2HT unit from outside of the
network then this could be the router address. This needs to be a pingable address on
the network for the Topology function to work correctly.
LAN cable: this shows whether there is a LAN cable connected or not.
3.2.1.5
Status : Radio 1 & Radio 2 Tabs
Details of the Mesh2HT unit accessed are recorded and appear on this status information
page. If either Radio 1 (R1) or Radio 2 (R2) is connected to another Mesh2HT, Mesh2HT
or other device, its MAC address and other link details will also appear. This page assists
in providing critical details needed for wireless link set up, trouble-shooting and/or
maintenance.

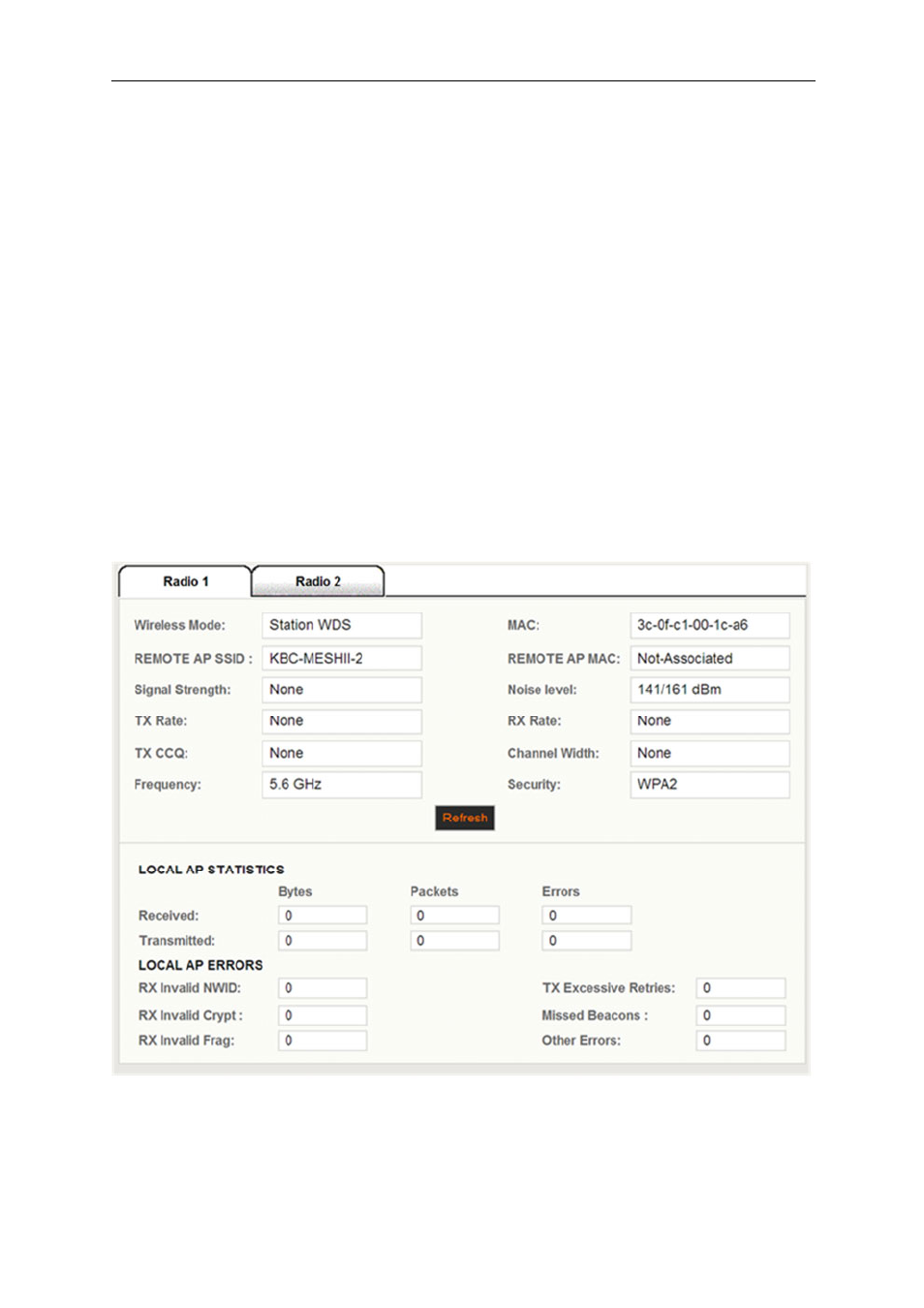

Client/Station Radio 1 tab:
Host/AP Radio 2 tab:
