DeviceNet Remote I/O Communication Module RTU-DNET
DVP-PLC Application Manual
28

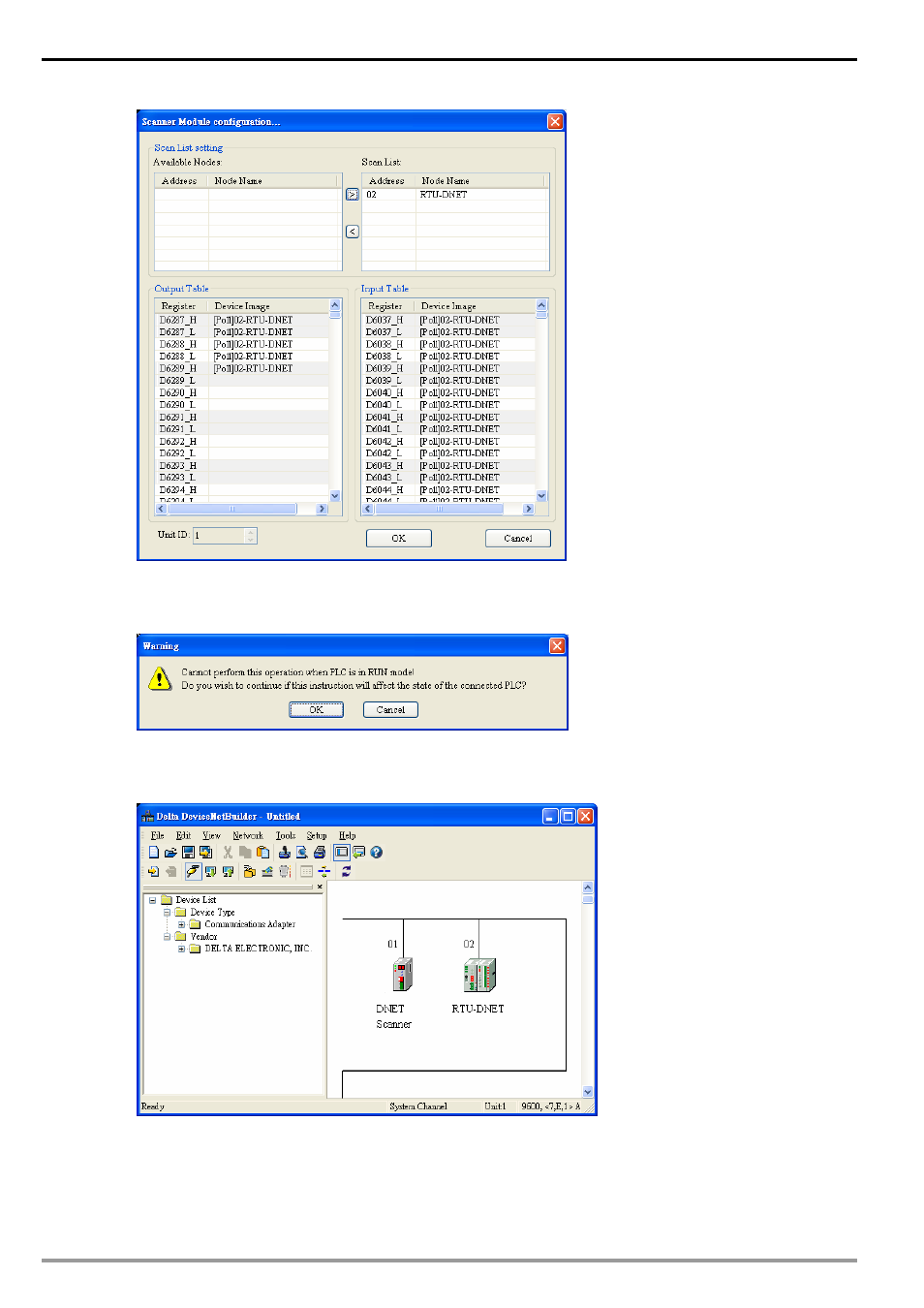

(3) Confirm all the settings and click on “OK”. Next, download the configuration to DVPDNET-SL. If DVP-SV
is in RUN mode while you are downloading the configuration, a "Warning” dialog box will appear.
(4) Click on “OK” to continue the download. Make sure DVP-SV is in RUN mode. Now, you can see the MS
LED and NS LED on RTU-DNET become green.
3. Follow the steps given above to configure DeviceNet network. If the I/O data do not include control word and
status word of RTU-DNET, the I/O data mapping of DVPDNET-SL and RTU-DNET will be:
