DeviceNet Remote I/O Communication Module RTU-DNET
DVP-PLC Application Manual 27
Item Function Default
IO Module
Error Treatment
How RTU-DNET will react when it detects errors. You can
choose “Ignored”, “Alarm” or “Stop DeviceNet IO”.
Alarm
Add control word
and status word to
IO data
For you to decide whether to add control word and status
word to I/O data. When you choose not to do it, the I/O data
in RTU-DNET and DeviceNet master will not include control
word and status word. If you choose to add them in, the I/O
data in RTU-DNET and DeviceNet master will include
control word and status word.
Not to add
(14) Confirm all the configurations are correct and click on “Download” to download the configuration to
RTU-DNET. After the download is completed, click on “OK".
2. Configuration of DVPDNET-SL

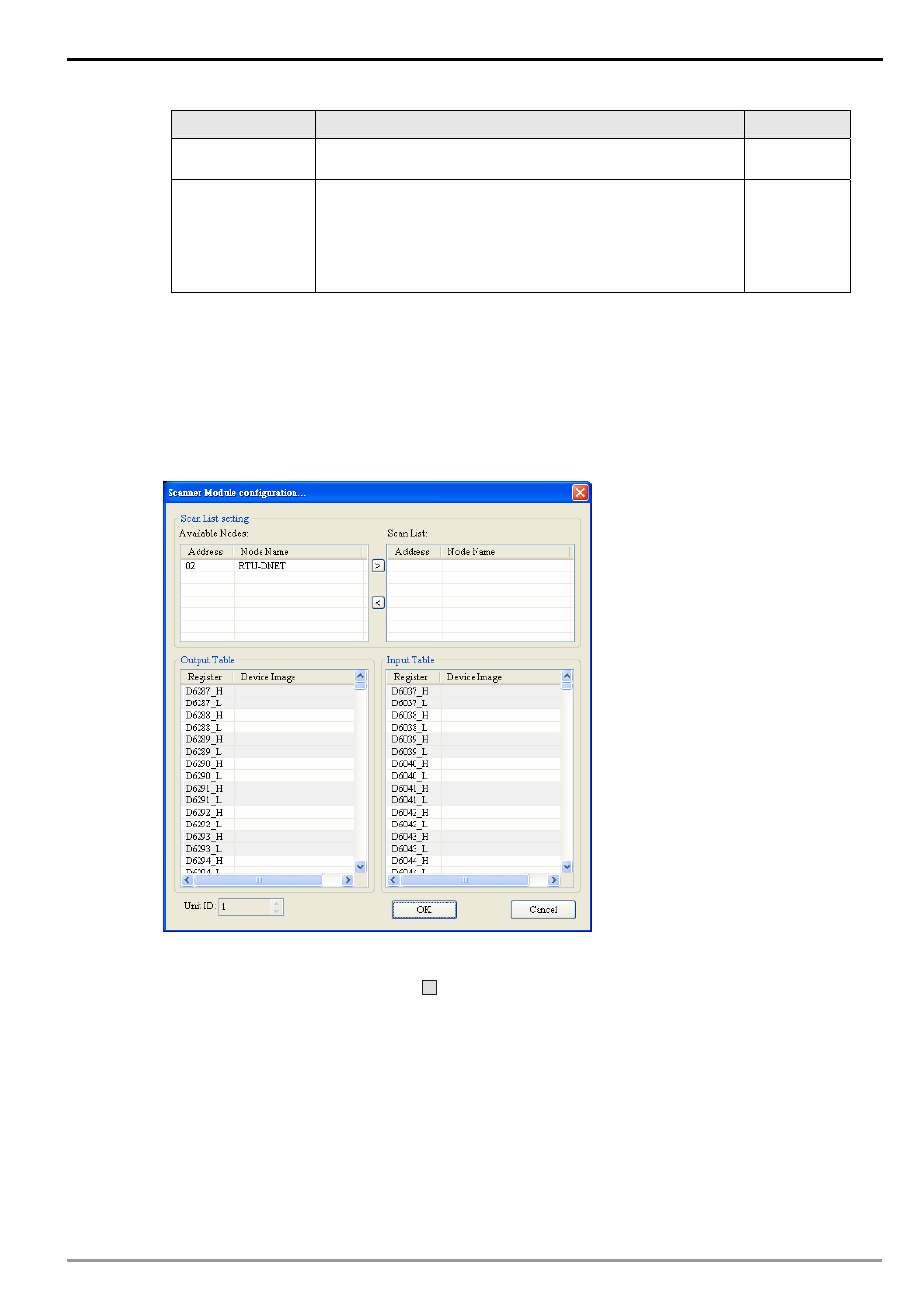

(1) Double click on DNET Scanner (node 01), and the “Scan Module Configuration…” dialog box will appear.
You can find the currently available node, RTU-DNET, in the list on the left side. On the right side, there is
an empty “Scan List”.
(2) Move the slave devices on DeviceNet in the “Available Nodes” list on the left side to the “Scan List” on the
right side. Select a node and click on
>
. Follow the steps to move all the nodes to the scan list.
