Power analysis, Power analysis –23 – Altera Cyclone II PowerPlay Early Power Estimator User Manual
Page 39
Altera Corporation
3–23
May 2006
PowerPlay Early Power Estimator User Guide For Cyclone II FPGAs
Using the Cyclone II PowerPlay Early Power Estimator

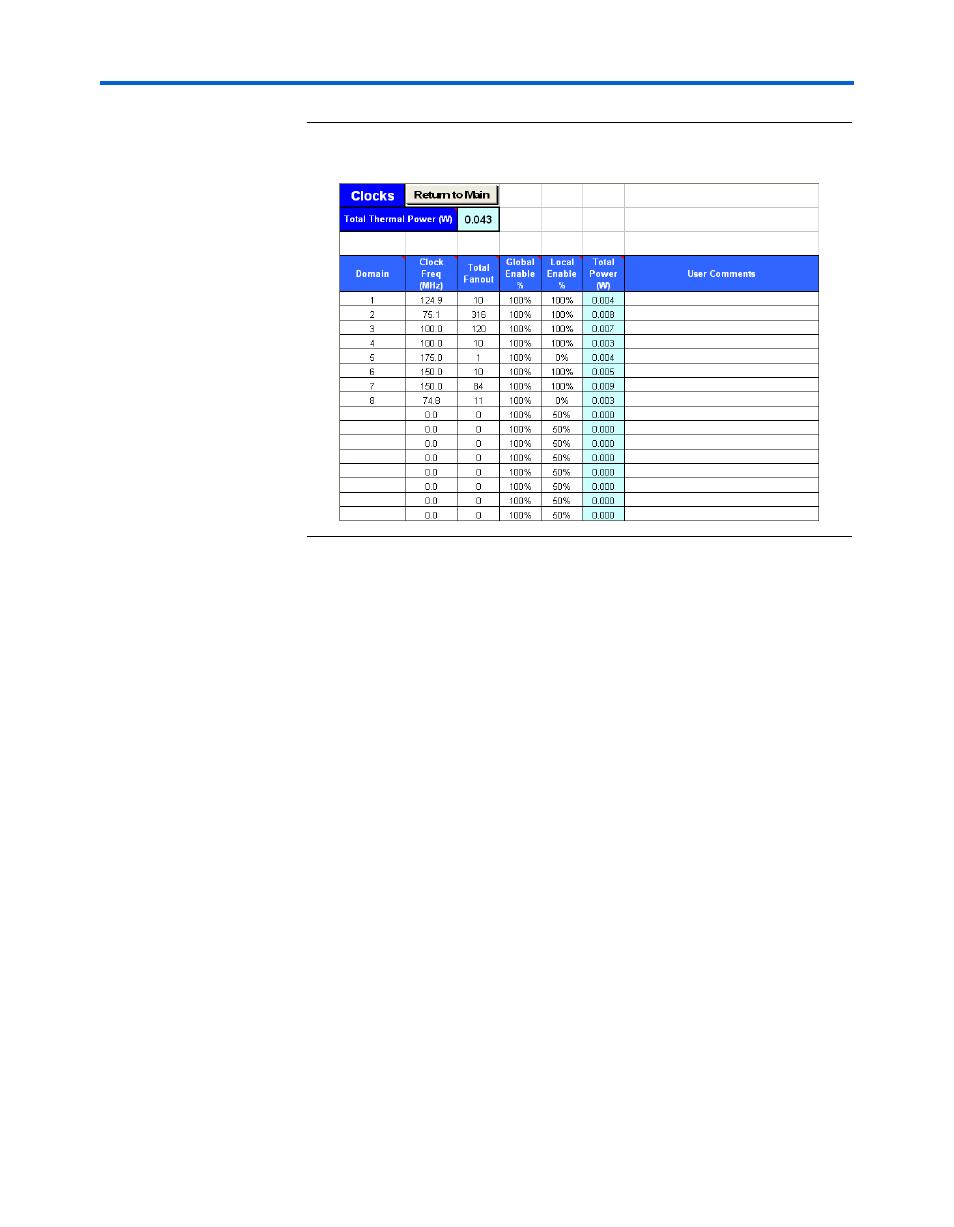

Figure 3–19. Clocks Section in the PowerPlay Early Power Estimator
Spreadsheet
Power Analysis
The Main section of the PowerPlay Early Power Estimator spreadsheet
summarizes the power and current estimates for the design. The Main
section displays the total thermal power, thermal analysis, and power
supply sizing information. The accuracy of the information depends on
the information entered. The power consumed can also vary greatly
depending on the toggle rates entered. The following sections provide a
description of the results of the PowerPlay Early Power Estimator
spreadsheet.
shows the Thermal Power, Thermal Analysis, and Power
Supply Sizing areas in the Main section.
